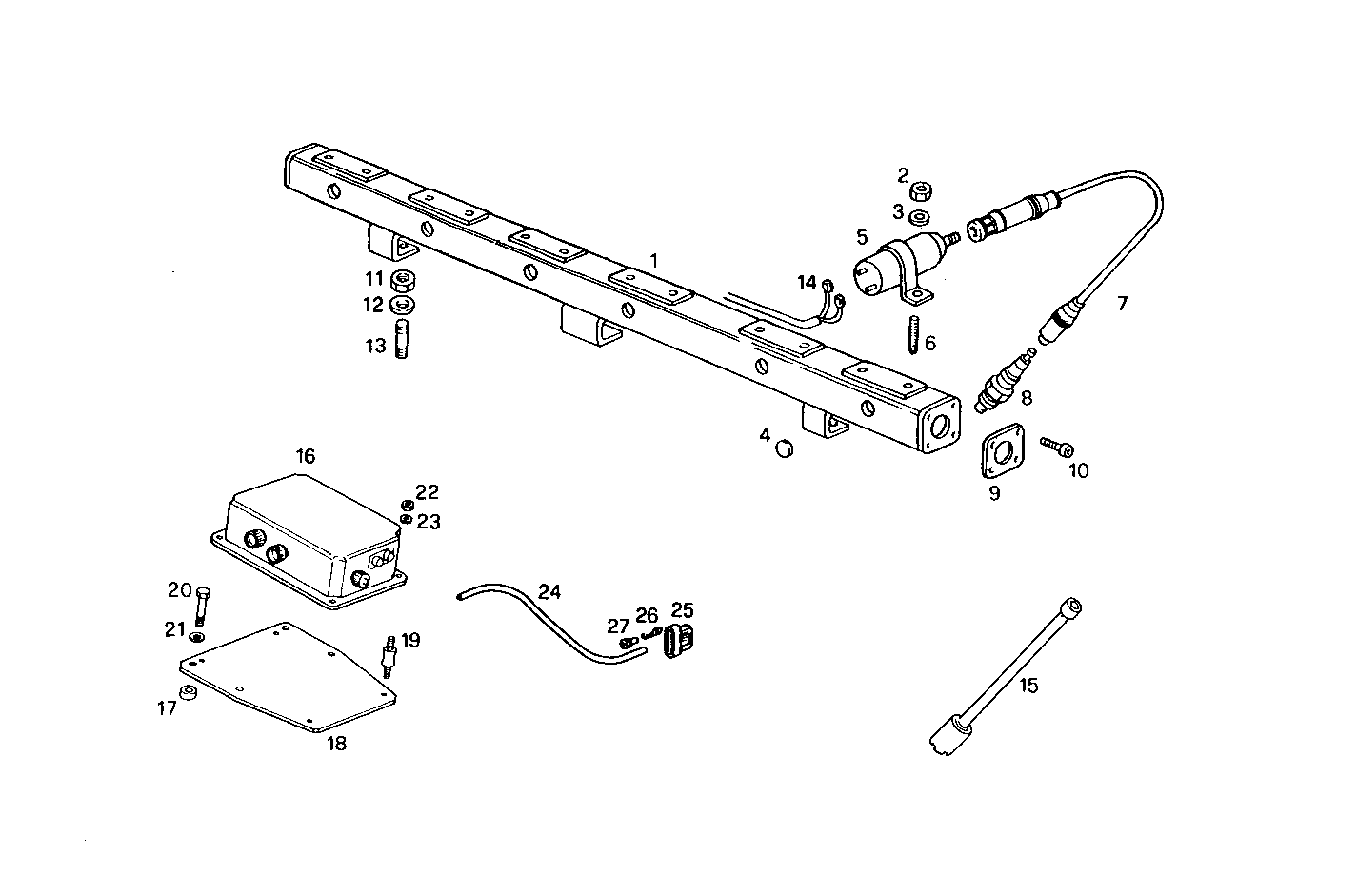

IGNITION CONTROL - SPARK PLUGS
GE8210G85.00A70M — GE8210G85
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8025843 | SUPPORT SUPPORT | 1 | |
| 2 | 17037721 | NUT NUT | 12 | |
| 3 | 11199279 | SPRING WASHER SPRING WASHER | 12 | |
| 4 | 17913580 | PLUG PLUG | 7 | |
| 5 | 8018778 | IGNITION COIL IGNITION COIL | 6 | |
| 6 | 16726424 | STUD STUD | 12 | |
| 7 | 8028791 | SPARK PLUGS CABLE SPARK PLUGS CABLE | 6 | |
| 8 | 8017846 | GAS SPARK PLUG GAS SPARK PLUG | 6 | |
| 9 | 8023546 | FLANGE FLANGE | 1 | |
| 10 | 16687924 | SCREW SCREW | 8 | |
| 11 | 17037931 | HEXAGON NUT HEXAGON NUT | 4 | |
| 12 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 13 | 16730224 | STUD STUD | 4 | |
| 14 | 8025015 | ENGINE HARNESS ENGINE HARNESS | 1 | |
| 15 | 8022378 | SPARK PLUGS WRENCH SPARK PLUGS WRENCH | 1 | |
| 16 | 8022913 | ELECTR.CONTR.UNIT ELECTR.CONTR.UNIT | 1 | |
| 17 | 8101556 | SPACING BAR SPACING BAR | 4 | |
| 18 | 8024924 | RETAINER RETAINER | 1 | |
| 19 | 8104155 | DOWEL DOWEL | 4 | |
| 20 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 21 | 17090174 | SPRING WASHER SPRING WASHER | 4 | |
| 22 | 17037821 | HEXAGON NUT HEXAGON NUT | 4 | |
| 23 | 17088474 | WASHER WASHER | 4 | |
| 24 | 8113225 | HOSE HOSE | 1 | |
| 25 | 12331487 | CONNECTION CONNECTION | 1 | |
| 26 | 12331654 | TERMINAL TERMINAL | 2 | |
| 27 | 12326382 | GASKET GASKET | 2 |
