125KVA
GE8210M22.10A64S — GE8210M22

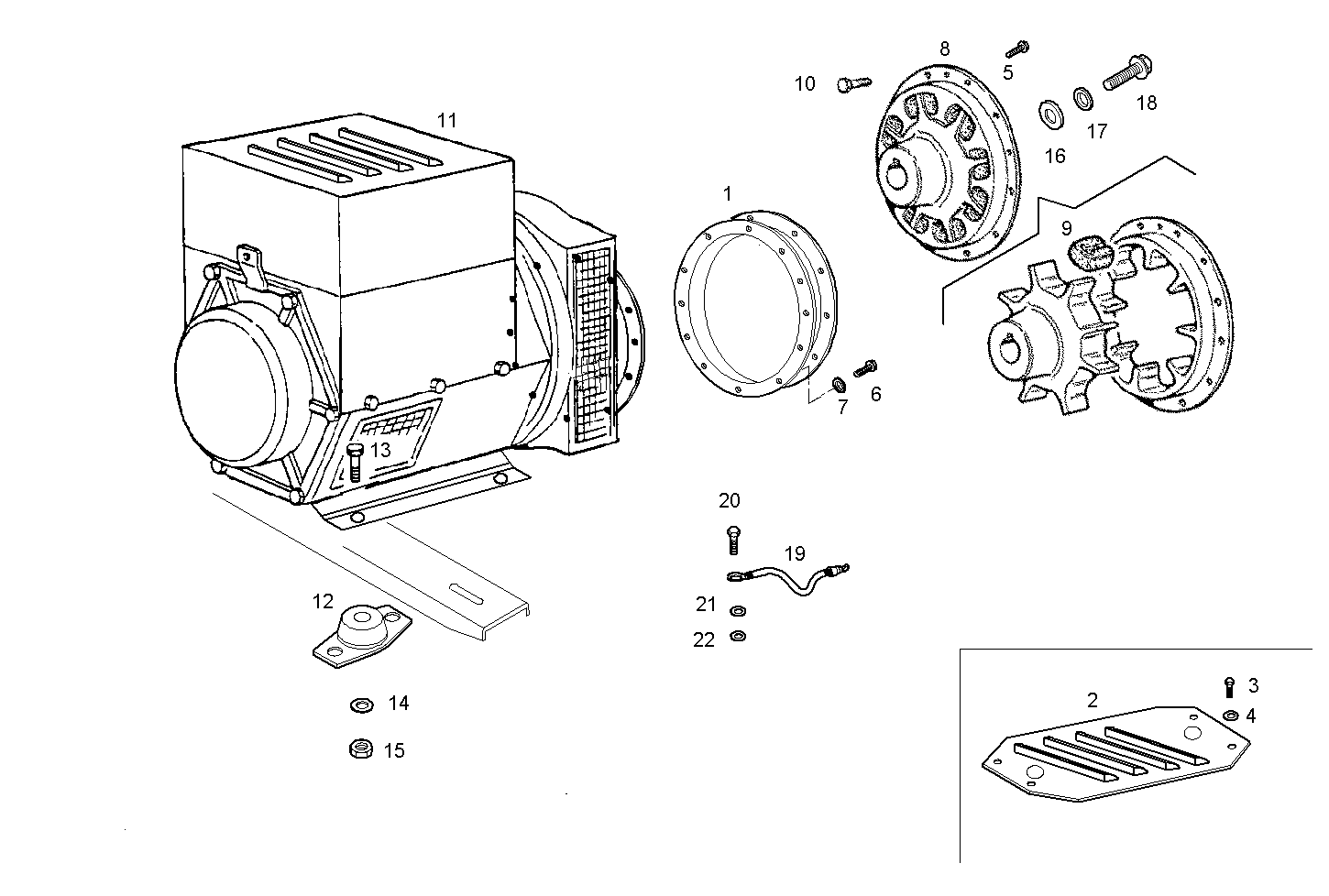

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8104522 | COUPLING BELL COUPLING BELL | 1 | |
| 2 | 4934736 | COVER COVER | 2 | |
| 3 | 16043121 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 4 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 5 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 6 | 16607824 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 7 | 17090174 | SPRING WASHER SPRING WASHER | 24 | |
| 8 | 8005236 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 9 | 4930911 | RUBBER PAD RUBBER PAD | 8 | |
| 10 | 14274621 | LOCKING SCREW LOCKING SCREW | 12 | |
| 11 | 8005833 | ELECTRIC MACHINE ELECTRIC MACHINE | 1 | |
| 12 | 4955094 | RUBBER PAD RUBBER PAD | 4 | |
| 13 | 16620024 | SCREW SCREW | 4 | |
| 14 | 11200679 | SPRING WASHER SPRING WASHER | 4 | |
| 15 | 17037921 | NUT NUT | 4 | |
| 16 | 8005257 | WASHER WASHER | 1 | |
| 17 | 16617224 | SCREW SCREW | 1 | |
| 18 | 17092774 | WASHER WASHER | 1 | |
| 19 | 8104707 | WIRE/CABLE WIRE/CABLE | 1 | |
| 20 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 21 | 17090474 | SPRING WASHER SPRING WASHER | 1 | |
| 22 | 16665604 | WASHER WASHER | 1 |
