Aria compressa
GE8210M22.10A64S — GE8210M22

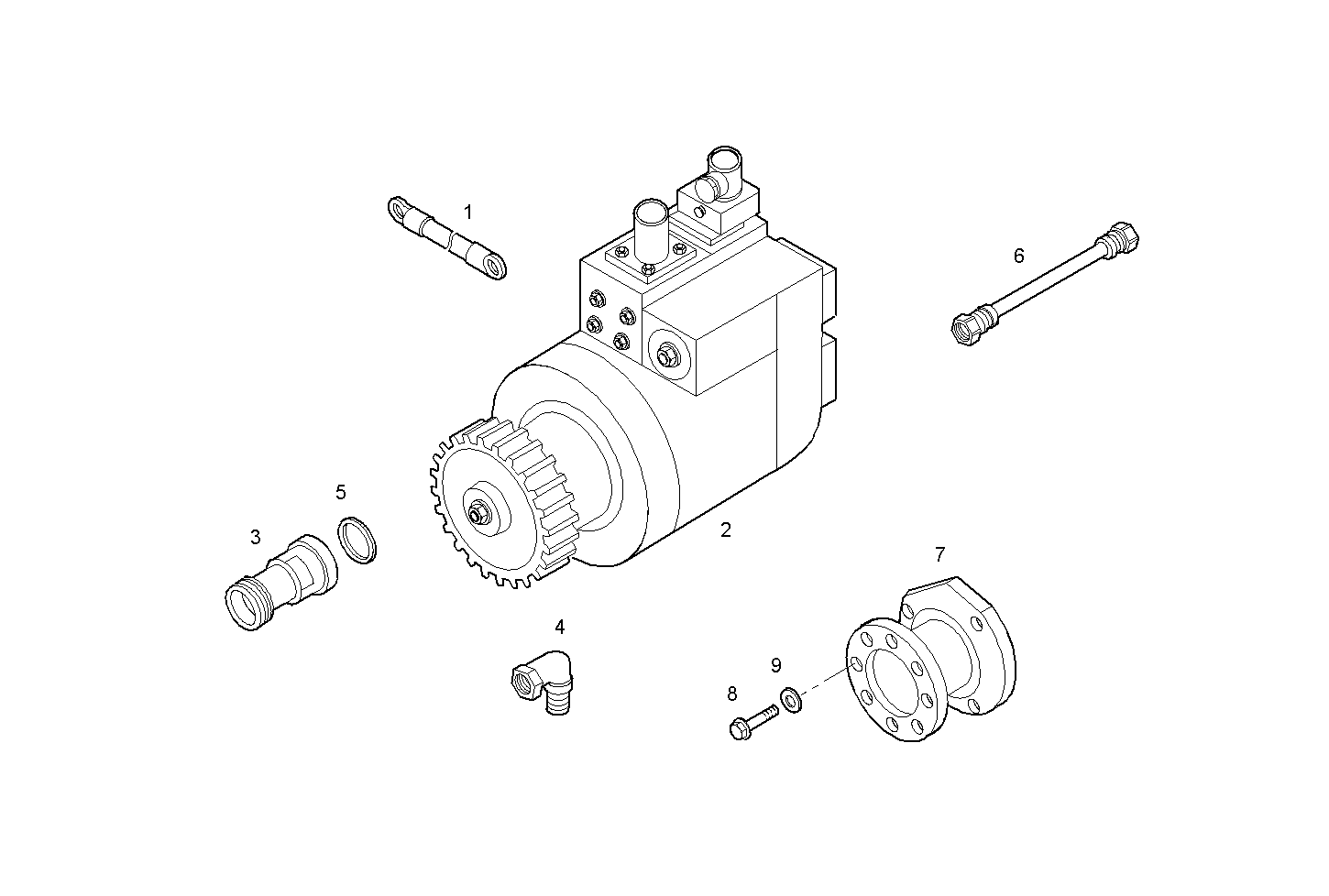

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4928146 | WIRE/CABLE WIRE/CABLE | 1 | |
| 2 | 8033228 | STARTER MOTOR STARTER MOTOR | 1 | |
| 3 | 8028730 | PIPE SOCKET PIPE SOCKET | 1 | |
| 4 | 8028754 | PIPE SOCKET PIPE SOCKET | 1 | |
| 5 | 17289181 | O-RING O-RING | 1 | |
| 6 | 8028536 | HOSE HOSE | 1 | |
| 7 | 8028955 | FLANGE FLANGE | 1 | |
| 8 | 16607724 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 9 | 17494934 | WASHER WASHER | 8 |
