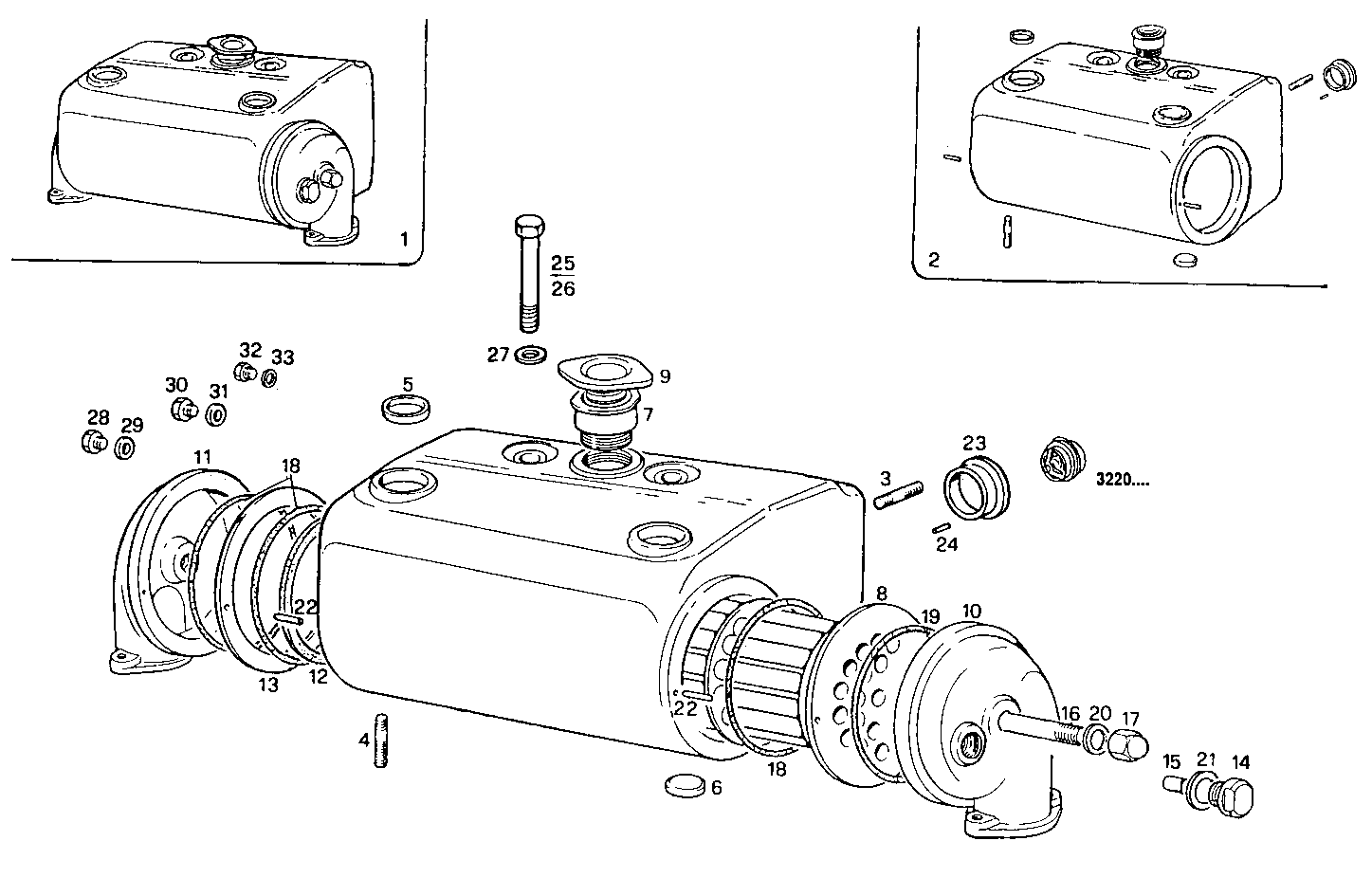

FRESH WATER - SEA WATER HEAT EXCHANGER
GE8210M22.10A64S — GE8210M22
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8114168 | WATER/SEA WATER HEAT EXCH WATER/SEA WATER HEAT EXCH | 1 | |
| 2 | 8005318 | HEAT EXANGER BODY HEAT EXANGER BODY | 1 | |
| 3 | 16746624 | STUD STUD | 3 | |
| 4 | 16746824 | STUD STUD | 4 | |
| 5 | 16991370 | LOCK PLUG LOCK PLUG | 2 | |
| 6 | 16991170 | LOCK PLUG LOCK PLUG | 1 | |
| 7 | 4934521 | PIPE SOCKET PIPE SOCKET | 1 | |
| 8 | 4932010 | TUBE STACK TUBE STACK | 1 | |
| 9 | 4927808 | PLUG PLUG | 1 | |
| 10 | 8109337 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 11 | 8103480 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 12 | 8005302 | GASKET GASKET | 1 | |
| 13 | 8103454 | SPACING BAR SPACING BAR | 1 | |
| 14 | 8101771 | PLUG PLUG | 2 | |
| 15 | 8101772 | SACRIFICAL ANODE SACRIFICAL ANODE | 2 | |
| 16 | 4918894 | TIE ROD TIE ROD | 1 | |
| 17 | 4918893 | NUT NUT | 1 | |
| 18 | 17292781 | O-RING O-RING | 3 | |
| 19 | 17292981 | O-RING O-RING | 1 | |
| 20 | 4858608 | SEAL GASKET SEAL GASKET | 1 | |
| 21 | 10296260 | SEAL GASKET SEAL GASKET | 2 | |
| 22 | 17236414 | PIN PIN | 2 | |
| 23 | 4918844 | WASHER WASHER | 1 | |
| 24 | 17235214 | PIN PIN | 1 | |
| 25 | 11343821 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 26 | 15973121 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 27 | 17090174 | SPRING WASHER SPRING WASHER | 4 | |
| 28 | 10305140 | LOCK PLUG LOCK PLUG | 1 | |
| 29 | 10263460 | WASHER WASHER | 1 | |
| 30 | 4595833 | THREADED PLUG THREADED PLUG | 1 | |
| 31 | 98429280 | SEAL GASKET SEAL GASKET | 1 | |
| 32 | 16992240 | THREADED PLUG THREADED PLUG | 1 | |
| 33 | 10296160 | SEAL GASKET SEAL GASKET | 1 |
