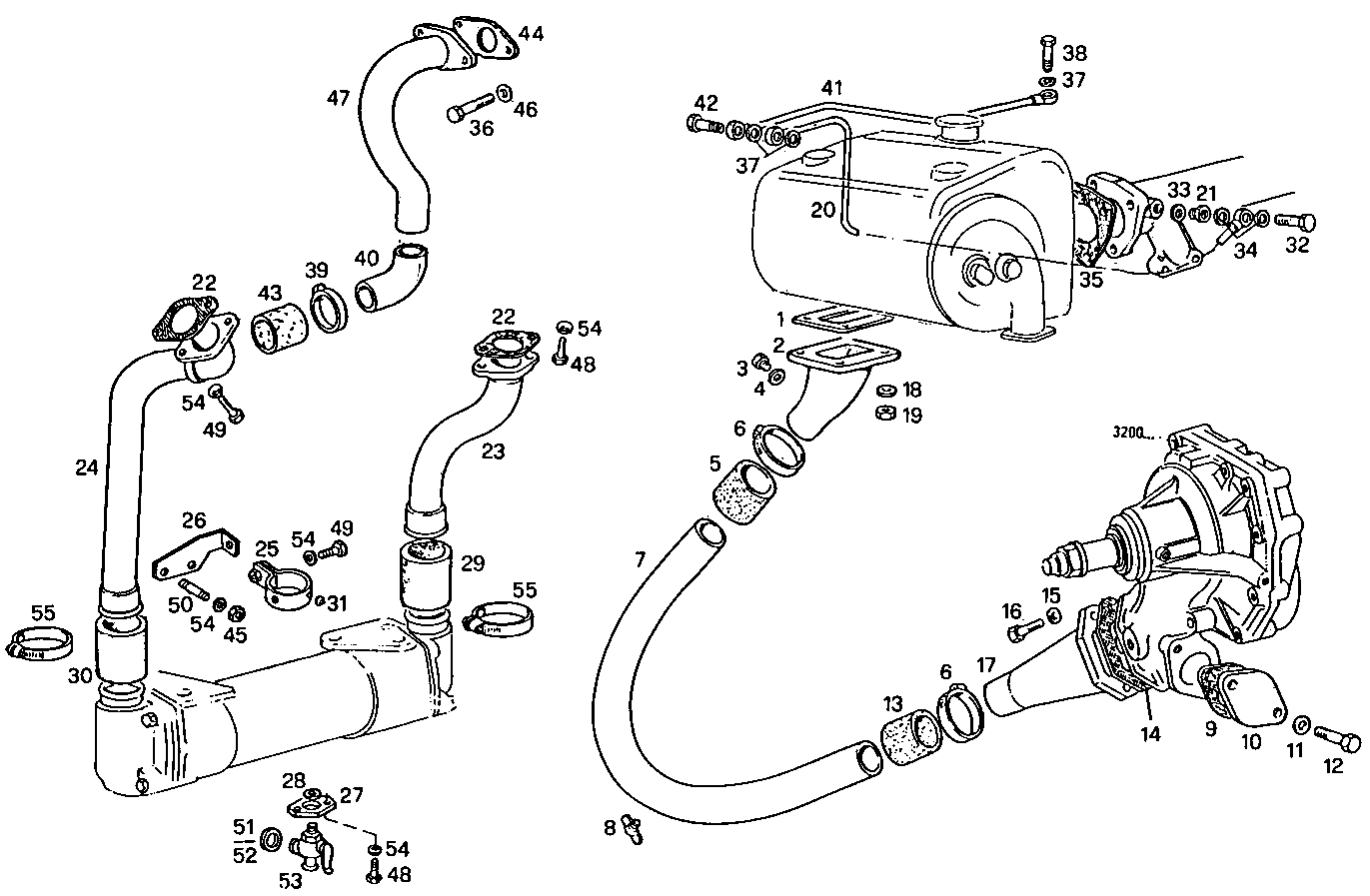

WATER LINES
GE8210M22.10A64S — GE8210M22
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4918857 | GASKET GASKET | 1 | |
| 2 | 4919935 | WATER PIPE WATER PIPE | 1 | |
| 3 | 11903111 | LOCK PLUG LOCK PLUG | 1 | |
| 4 | 4858606 | GASKET GASKET | 1 | |
| 5 | 4934927 | WATER HOSE WATER HOSE | 1 | |
| 6 | 17765093 | CLIP CLIP | 4 | |
| 7 | 4927161 | WATER PIPE WATER PIPE | 1 | |
| 8 | 13413190 | DRAIN COCK DRAIN COCK | 1 | |
| 9 | 4606094 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 10 | 4927268 | COVER COVER | 1 | |
| 11 | 11198071 | SPRING WASHER SPRING WASHER | 2 | |
| 12 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 13 | 4765112 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 14 | 98451498 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 15 | 17090274 | WASHER WASHER | 2 | |
| 16 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 17 | 98450711 | WATER PIPE WATER PIPE | 1 | |
| 18 | 17089474 | SPRING WASHER SPRING WASHER | 7 | |
| 19 | 17037931 | HEXAGON NUT HEXAGON NUT | 7 | |
| 20 | 8013537 | WATER PIPE WATER PIPE | 1 | |
| 21 | 4927358 | PIPE SOCKET PIPE SOCKET | 1 | |
| 22 | 4863951 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 23 | 4654000 | WATER PIPE WATER PIPE | 1 | |
| 24 | 8114104 | WATER PIPE WATER PIPE | 1 | |
| 25 | 4640545 | CLIP CLIP | 1 | |
| 26 | 4830268 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 27 | 4872744 | COVER COVER | 1 | |
| 28 | 4513714 | GASKET GASKET | 1 | |
| 29 | 98443282 | WATER HOSE WATER HOSE | 1 | |
| 30 | 98420260 | WATER HOSE WATER HOSE | 1 | |
| 31 | 4565875 | RUBBER PAD RUBBER PAD | 3 | |
| 32 | 4864080 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 33 | 10278660 | SEAL GASKET SEAL GASKET | 1 | |
| 34 | 4858606 | GASKET GASKET | 2 | |
| 35 | 8013537 | WATER PIPE WATER PIPE | 1 | |
| 36 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 37 | 4858607 | WASHER WASHER | 5 | |
| 38 | 8009696 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 39 | 17764790 | CLIP CLIP | 2 | |
| 40 | 4919714 | WATER HOSE WATER HOSE | 1 | |
| 41 | 8013546 | WATER PIPE WATER PIPE | 1 | |
| 42 | 4930504 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 43 | 8110617 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 44 | 4918835 | GASKET GASKET | 1 | |
| 45 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 46 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 47 | 8114097 | WATER PIPE WATER PIPE | 1 | |
| 48 | 16043621 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 49 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 7 | |
| 50 | 13516624 | STUD STUD | 2 | |
| 51 | 10278460 | SEAL GASKET SEAL GASKET | 1 | |
| 52 | 10278560 | SEAL GASKET SEAL GASKET | 1 | |
| 53 | 10849090 | DRAIN COCK DRAIN COCK | 1 | |
| 54 | 11198074 | SPRING WASHER SPRING WASHER | 9 | |
| 55 | 17764792 | HOSE CLIP HOSE CLIP | 4 |
