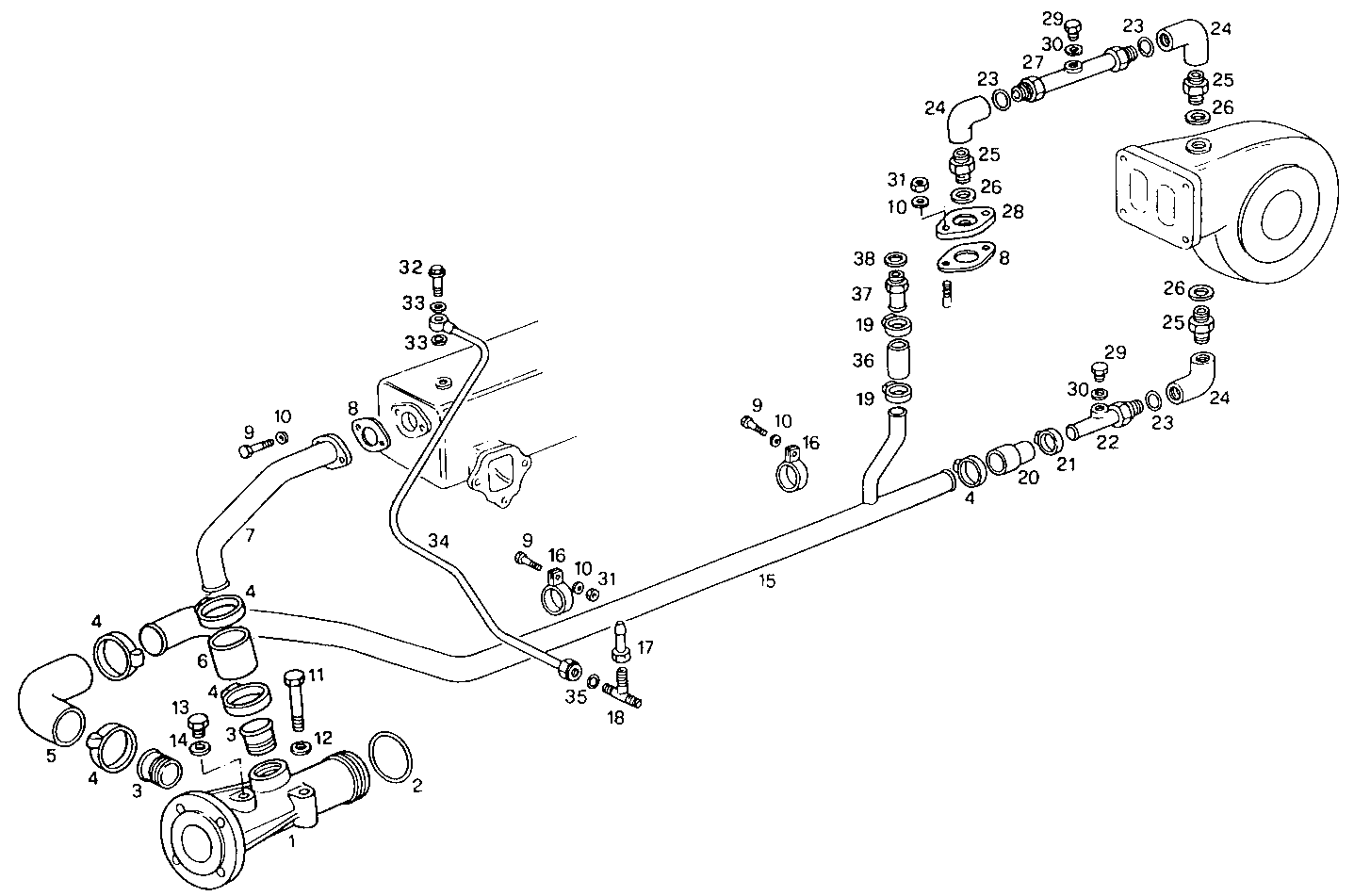

WATER LINES

GE8210SRG75.10A70E — GE8210SRG75

Parts List

#	Part No	Name / Description	Qty
1	8021866	WATER PIPE WATER PIPE	1
2	98461203	O-RING O-RING	1
3	8110595	PIPE SOCKET PIPE SOCKET	2
4	17764791	CLIP CLIP	6
5	8110497	CONNECTOR SLEEVE CONNECTOR SLEEVE	1
6	8110724	RUBBER SLEEVE RUBBER SLEEVE	1
7	8110631	WATER PIPE WATER PIPE	1
8	8009640	GASKET GASKET	2
9	16605524	HEXAGON BOLT HEXAGON BOLT	4
10	17089474	SPRING WASHER SPRING WASHER	8
11	16606524	HEXAGON BOLT HEXAGON BOLT	1
12	17094914	WASHER WASHER	1
13	16992411	THREADED PLUG THREADED PLUG	1
14	4858609	WASHER WASHER	1
15	8021917	WATER PIPE WATER PIPE	1
16	4928851	CLIP CLIP	2
17	8021758	WATER PIPE WATER PIPE	1
18	8112120	PIPE SOCKET PIPE SOCKET	1
19	17764593	CLIP CLIP	1
19	17764693	CLIP CLIP	1
20	8021906	CONNECTOR SLEEVE CONNECTOR SLEEVE	1
21	17764691	CLIP CLIP	1
22	8027441	WATER PIPE WATER PIPE	1
23	8024652	O-RING O-RING	3
24	16526514	ELBOW COUPLING ELBOW COUPLING	3
25	8110943	PIPE SOCKET PIPE SOCKET	3
26	98429282	SEAL GASKET SEAL GASKET	3
27	8021913	WATER PIPE WATER PIPE	1
28	8021905	FLANGE FLANGE	1
29	11903111	LOCK PLUG LOCK PLUG	2
30	4858606	GASKET GASKET	2
31	17037931	HEXAGON NUT HEXAGON NUT	3
32	8009696	SCREW CONNECTOR SCREW CONNECTOR	1
33	4858607	WASHER WASHER	2
34	8021961	WATER PIPE WATER PIPE	1
35	8024645	O-RING O-RING	1
36	98420478	RUBBER SLEEVE RUBBER SLEEVE	1
36	99452230	RUBBER SLEEVE RUBBER SLEEVE	1
37	8024797	PIPE SOCKET PIPE SOCKET	1
37	8114298	PIPE SOCKET PIPE SOCKET	1
38	10303360	SEAL GASKET SEAL GASKET	1
38	10303460	SEAL GASKET SEAL GASKET	1
