165-180KVA 50-60HZ
GE8210SRG85.10A70E — GE8210SRG85

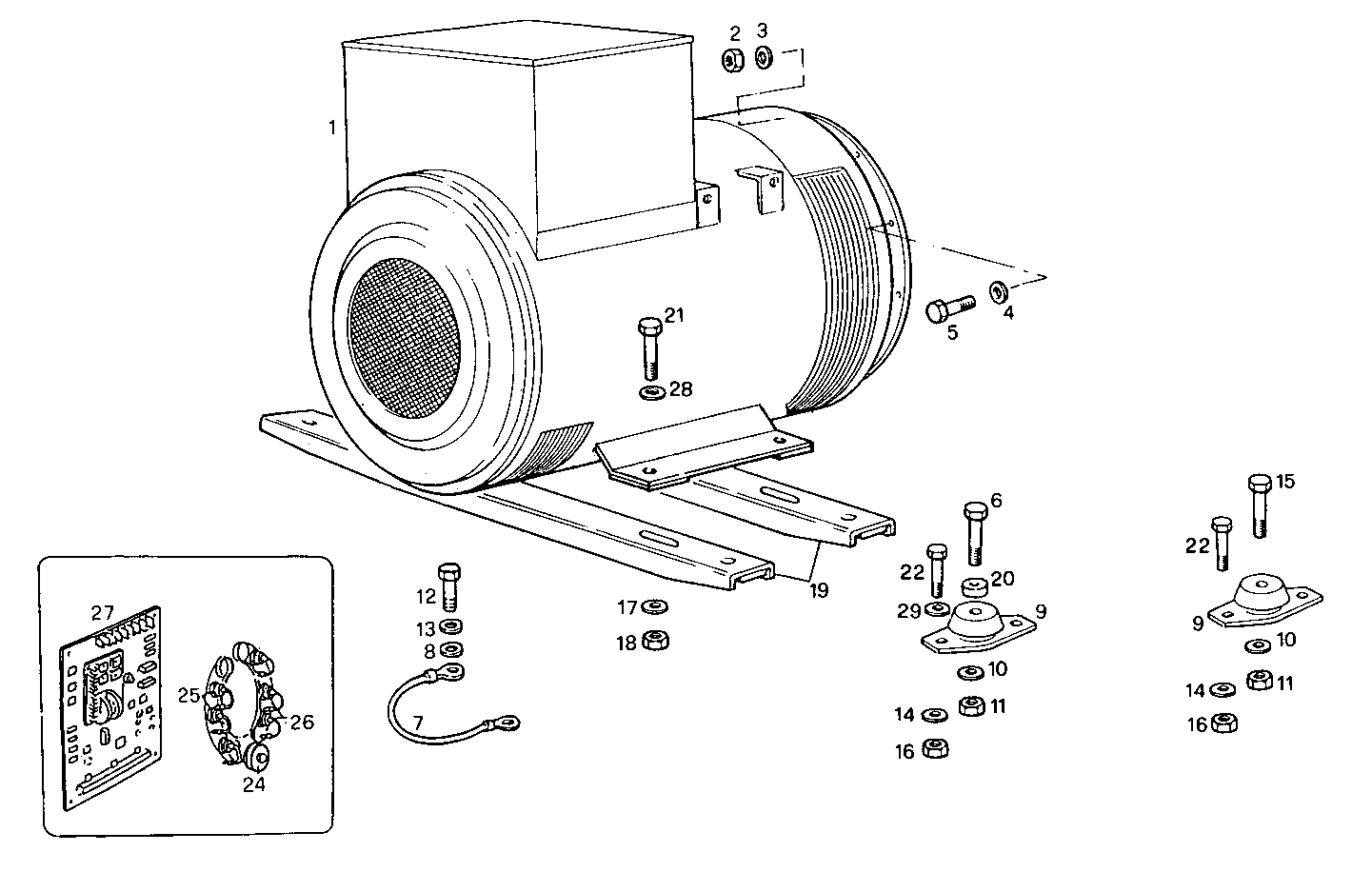

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8016932 | ELECTRIC MACHINE ELECTRIC MACHINE | 1 | |
| 2 | 17038221 | HEXAGON NUT HEXAGON NUT | 12 | |
| 3 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 4 | 17091174 | SPRING WASHER SPRING WASHER | 8 | |
| 5 | 15540431 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 6 | 16620824 | SCREW SCREW | 4 | |
| 7 | 8110852 | EARTH WIRE EARTH WIRE | 1 | |
| 8 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 9 | 4955094 | RUBBER PAD RUBBER PAD | 6 | |
| 10 | 17093174 | WASHER WASHER | 6 | |
| 11 | 17039721 | HEXAGON NUT HEXAGON NUT | 6 | |
| 12 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 16665504 | WASHER WASHER | 1 | |
| 14 | 17092374 | SPRING WASHER SPRING WASHER | 10 | |
| 15 | 16620124 | SCREW SCREW | 2 | |
| 16 | 17038921 | NUT NUT | 10 | |
| 17 | 17092774 | WASHER WASHER | 4 | |
| 18 | 17039321 | NUT NUT | 4 | |
| 19 | 8025438 | SUPPORT SUPPORT | 2 | |
| 20 | 8016947 | SPACING BAR SPACING BAR | 4 | |
| 21 | 16617424 | SCREW SCREW | 4 | |
| 22 | 16614624 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 24 | 8106491 | SUPPRESSOR SUPPRESSOR | 1 | |
| 25 | 8106486 | EL.MACHINE DIODE EL.MACHINE DIODE | 1 | |
| 26 | 8106485 | EL.MACHINE DIODE EL.MACHINE DIODE | 1 | |
| 27 | 8091776 | EL.MACHINE VOLTAGE REGUL. EL.MACHINE VOLTAGE REGUL. | 1 | |
| 28 | 4279447 | WASHER WASHER | 4 | |
| 29 | 4774417 | PIPE PIPE | 8 |
