250-265KVA 50-60HZ
GE8210SRi25.00A955 — GE8210SRI25

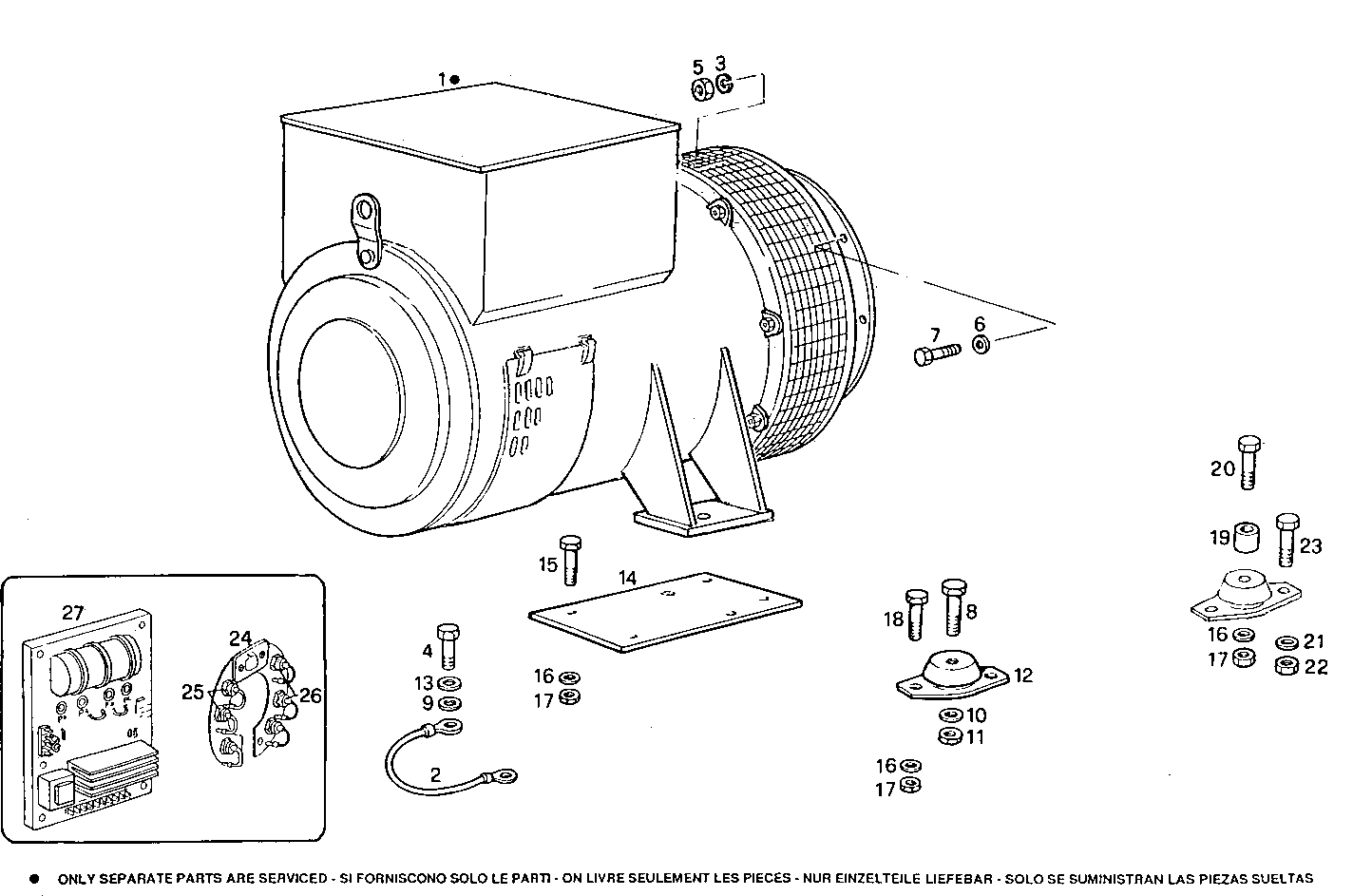

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8015644 | ELECTRIC MACHINE ELECTRIC MACHINE | 1 | |
| 2 | 8104707 | WIRE/CABLE WIRE/CABLE | 1 | |
| 3 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 4 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 5 | 17038221 | HEXAGON NUT HEXAGON NUT | 12 | |
| 6 | 17091171 | WASHER WASHER | 8 | |
| 7 | 15540431 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 8 | 16617724 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 16665604 | WASHER WASHER | 1 | |
| 10 | 17092774 | WASHER WASHER | 2 | |
| 11 | 17039321 | NUT NUT | 2 | |
| 12 | 4955094 | RUBBER PAD RUBBER PAD | 2 | |
| 13 | 17090474 | SPRING WASHER SPRING WASHER | 1 | |
| 14 | 8016343 | PLATE PLATE | 2 | |
| 15 | 16615024 | SCREW SCREW | 8 | |
| 16 | 17092374 | SPRING WASHER SPRING WASHER | 16 | |
| 17 | 17038921 | NUT NUT | 16 | |
| 18 | 16614824 | SCREW SCREW | 4 | |
| 19 | 8109336 | SPACING BAR SPACING BAR | 2 | |
| 20 | 16613324 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 21 | 17091674 | WASHER WASHER | 2 | |
| 22 | 17038721 | NUT NUT | 2 | |
| 23 | 16614624 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 24 | 8092295 | SUPPRESSOR SUPPRESSOR | 1 | |
| 25 | 8092294 | EL.MACHINE DIODE EL.MACHINE DIODE | 1 | |
| 26 | 8092293 | EL.MACHINE DIODE EL.MACHINE DIODE | 1 | |
| 27 | 8092292 | EL.MACHINE VOLTAGE REGUL. EL.MACHINE VOLTAGE REGUL. | 1 |
