250KVA 50HZ
GE8210SRi25.00A955 — GE8210SRI25

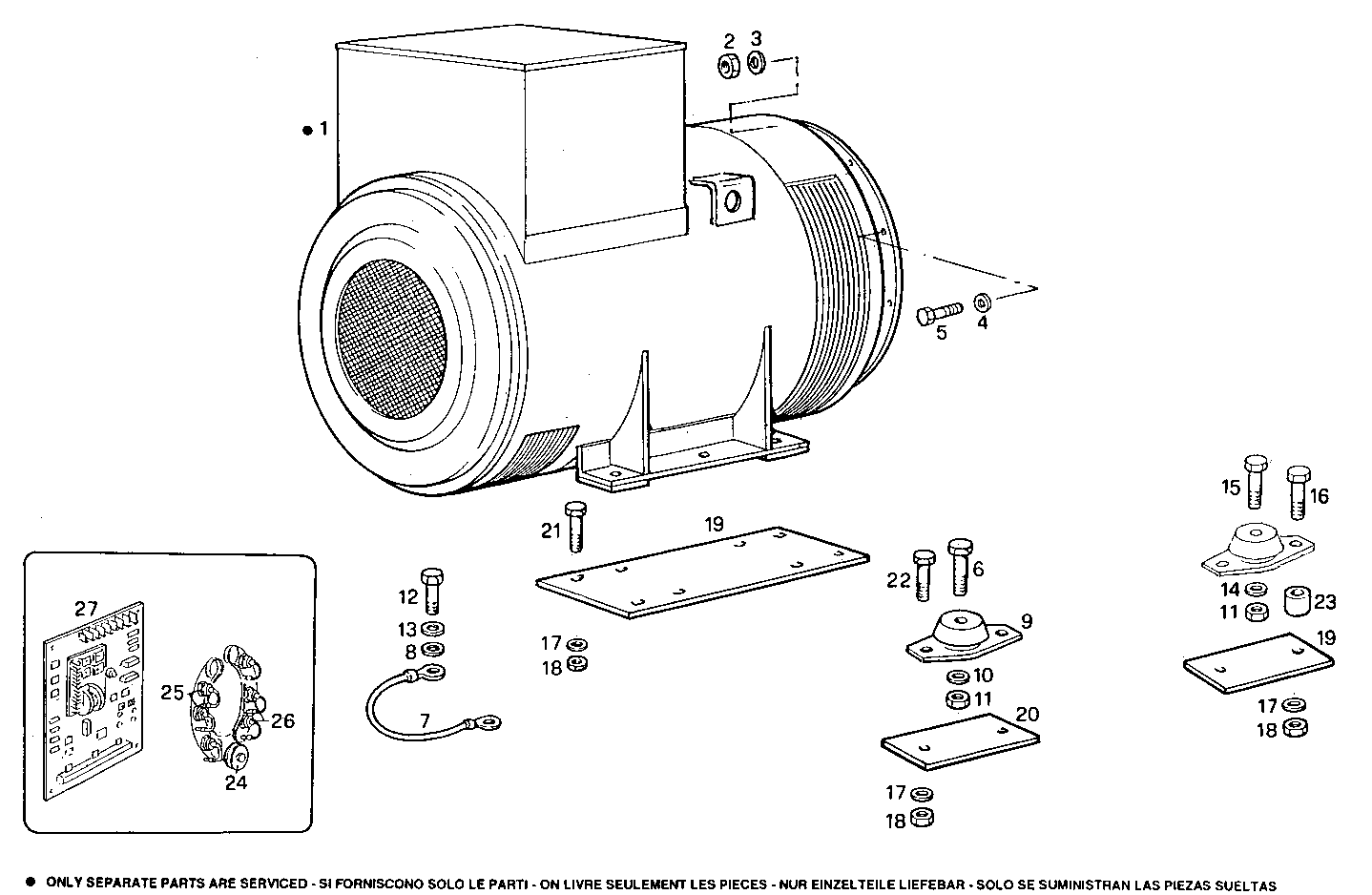

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8009786 | ELECTRIC MACHINE ELECTRIC MACHINE | 1 | |
| 2 | 12164711 | HEXAGON NUT HEXAGON NUT | 12 | |
| 3 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 4 | 17091174 | SPRING WASHER SPRING WASHER | 8 | |
| 5 | 15540431 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 6 | 15997521 | SCREW SCREW | 4 | |
| 7 | 8104707 | WIRE/CABLE WIRE/CABLE | 1 | |
| 8 | 17090474 | SPRING WASHER SPRING WASHER | 1 | |
| 9 | 4955094 | RUBBER PAD RUBBER PAD | 4 | |
| 10 | 17093174 | WASHER WASHER | 4 | |
| 11 | 12164011 | HEXAGON NUT HEXAGON NUT | 6 | |
| 12 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 10730501 | WASHER WASHER | 1 | |
| 14 | 17091974 | SPRING WASHER SPRING WASHER | 2 | |
| 15 | 15977621 | SCREW SCREW | 2 | |
| 16 | 15981621 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 17 | 17092374 | SPRING WASHER SPRING WASHER | 20 | |
| 18 | 12164111 | HEXAGON NUT HEXAGON NUT | 20 | |
| 19 | 4928027 | SUPPORT SUPPORT | 2 | |
| 20 | 8010131 | SPACING BAR SPACING BAR | 2 | |
| 21 | 15835221 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 22 | 11376221 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 23 | 8109633 | SPACING BAR SPACING BAR | 2 | |
| 24 | 8106490 | SUPPRESSOR SUPPRESSOR | 1 | |
| 25 | 8106488 | EL.MACHINE DIODE EL.MACHINE DIODE | 1 | |
| 26 | 8106487 | EL.MACHINE DIODE EL.MACHINE DIODE | 1 | |
| 27 | 8091766 | EL.MACHINE VOLTAGE REGUL. EL.MACHINE VOLTAGE REGUL. | 1 |
