250-265KVA 50-60HZ
GE8210SRi25.01A955 — GE8210SRI25

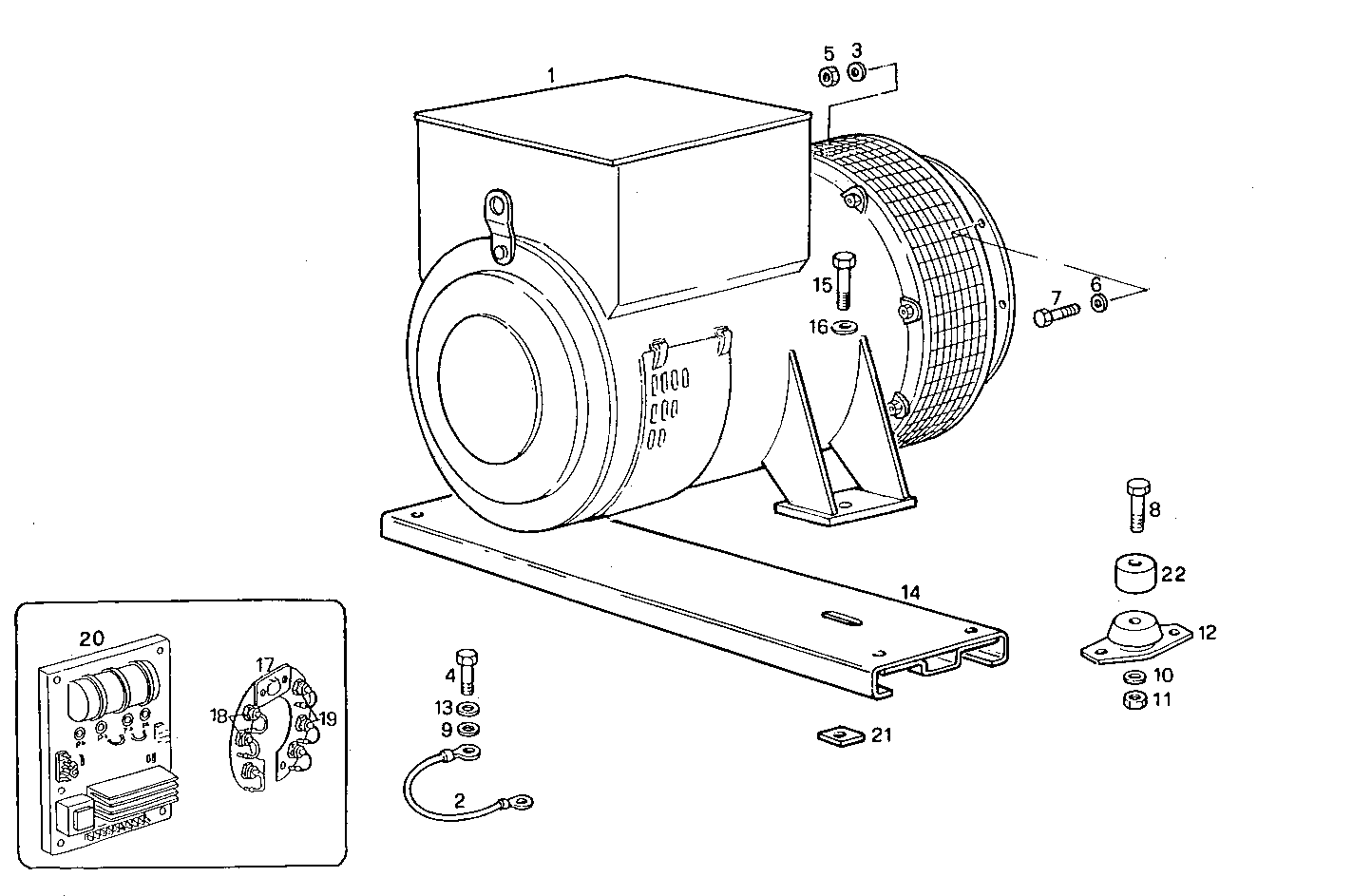

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8015644 | ELECTRIC MACHINE ELECTRIC MACHINE | 1 | |
| 2 | 8104707 | WIRE/CABLE WIRE/CABLE | 1 | |
| 3 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 4 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 5 | 17038221 | HEXAGON NUT HEXAGON NUT | 12 | |
| 6 | 17091174 | SPRING WASHER SPRING WASHER | 8 | |
| 7 | 15540431 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 8 | 16620524 | SCREW SCREW | 4 | |
| 9 | 16665604 | WASHER WASHER | 1 | |
| 10 | 17093174 | WASHER WASHER | 4 | |
| 11 | 17039721 | HEXAGON NUT HEXAGON NUT | 4 | |
| 12 | 4955094 | RUBBER PAD RUBBER PAD | 4 | |
| 13 | 17090474 | SPRING WASHER SPRING WASHER | 1 | |
| 14 | 8019651 | SUPPORT SUPPORT | 1 | |
| 15 | 16617424 | SCREW SCREW | 2 | |
| 16 | 17092774 | WASHER WASHER | 2 | |
| 17 | 8092295 | SUPPRESSOR SUPPRESSOR | 1 | |
| 18 | 8092294 | EL.MACHINE DIODE EL.MACHINE DIODE | 1 | |
| 19 | 8092293 | EL.MACHINE DIODE EL.MACHINE DIODE | 1 | |
| 20 | 8092292 | EL.MACHINE VOLTAGE REGUL. EL.MACHINE VOLTAGE REGUL. | 1 | |
| 21 | 8019231 | PLATE PLATE | 2 | |
| 22 | 8108891 | SPACING BAR SPACING BAR | 4 |
