250KVA 50HZ
GE8210SRi25.01A955 — GE8210SRI25

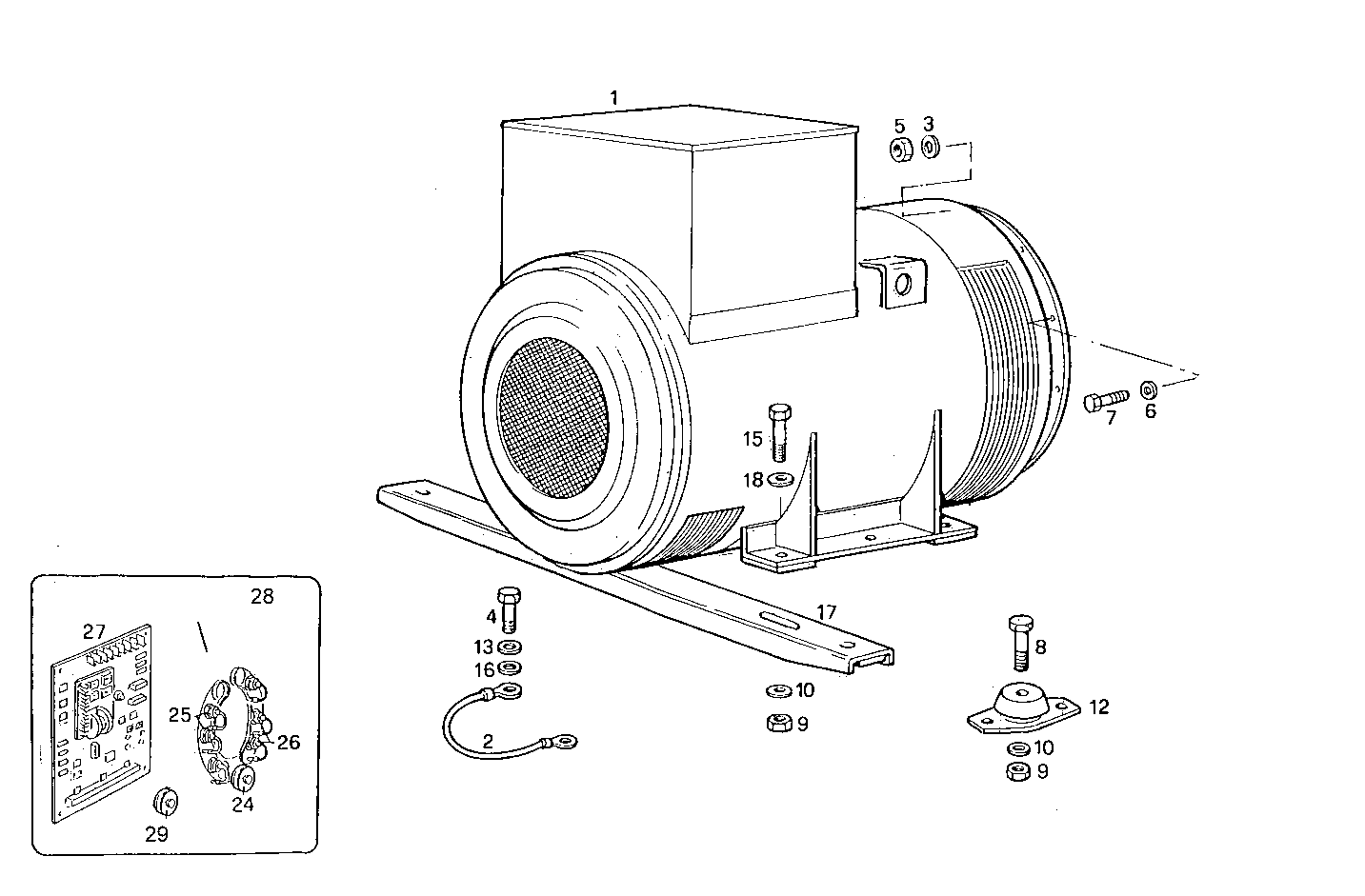

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8025520 | ELECTRIC MACHINE ELECTRIC MACHINE | 1 | |
| 2 | 8104707 | WIRE/CABLE WIRE/CABLE | 1 | |
| 3 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 4 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 5 | 17038221 | HEXAGON NUT HEXAGON NUT | 12 | |
| 6 | 17091174 | SPRING WASHER SPRING WASHER | 8 | |
| 7 | 15540431 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 8 | 16620224 | SCREW SCREW | 4 | |
| 9 | 17039721 | HEXAGON NUT HEXAGON NUT | 4 | |
| 10 | 17093174 | WASHER WASHER | 4 | |
| 12 | 4955094 | RUBBER PAD RUBBER PAD | 4 | |
| 13 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 15 | 16620024 | SCREW SCREW | 4 | |
| 16 | 16665504 | WASHER WASHER | 1 | |
| 17 | 8025438 | SUPPORT SUPPORT | 2 | |
| 18 | 8016962 | WASHER WASHER | 4 | |
| 24 | 8106490 | SUPPRESSOR SUPPRESSOR | 1 | |
| 25 | 8106488 | EL.MACHINE DIODE EL.MACHINE DIODE | 1 | |
| 26 | 8106487 | EL.MACHINE DIODE EL.MACHINE DIODE | 1 | |
| 27 | 8091766 | EL.MACHINE VOLTAGE REGUL. EL.MACHINE VOLTAGE REGUL. | 1 | |
| 28 | 8094561 | CONDENSER CONDENSER | 1 | |
| 29 | 8094560 | SUPPRESSOR SUPPRESSOR | 1 |
