ELECTRIC MACHINE
GE8210SRi25.01N970 — GE8210SRI25

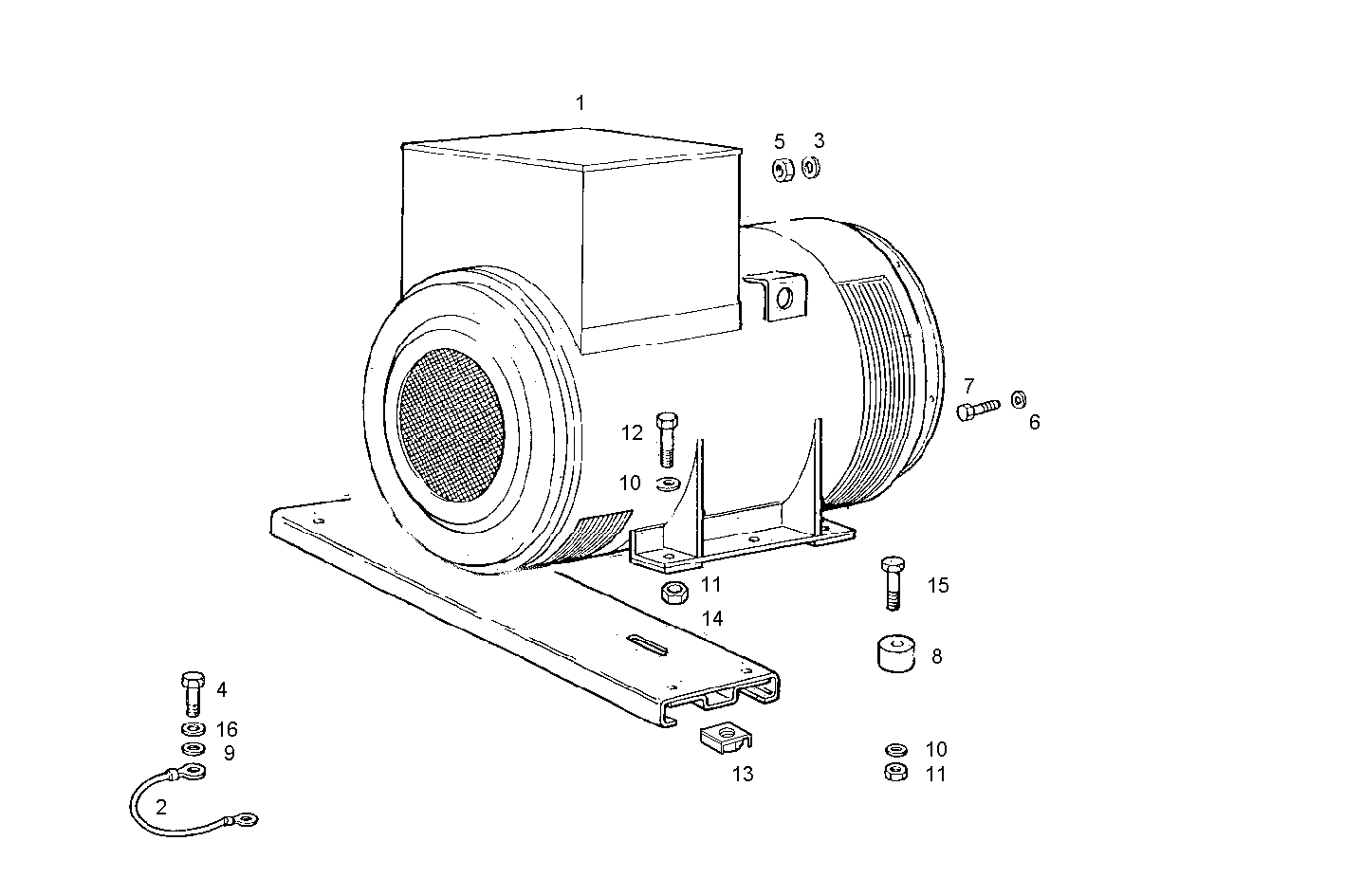

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 503111526 | ELECTRIC MACHINE ELECTRIC MACHINE | 1 | |
| 1 | 8031848 | ELECTRIC MACHINE ELECTRIC MACHINE | 1 | |
| 2 | 8104707 | WIRE/CABLE WIRE/CABLE | 1 | |
| 3 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 4 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 5 | 17038221 | HEXAGON NUT HEXAGON NUT | 12 | |
| 6 | 17091174 | SPRING WASHER SPRING WASHER | 8 | |
| 7 | 15540434 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 8 | 8016970 | SPACING BAR SPACING BAR | 4 | |
| 9 | 16665514 | WASHER WASHER | 1 | |
| 10 | 17092774 | WASHER WASHER | 8 | |
| 11 | 17039321 | NUT NUT | 8 | |
| 12 | 16617224 | SCREW SCREW | 4 | |
| 13 | 8019231 | PLATE PLATE | 1 | |
| 14 | 8019651 | SUPPORT SUPPORT | 1 | |
| 15 | 16618524 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 16 | 17089474 | SPRING WASHER SPRING WASHER | 1 |
