300KVA 50HZ
GE8210SRi26.01A50L — GE8210SRi26

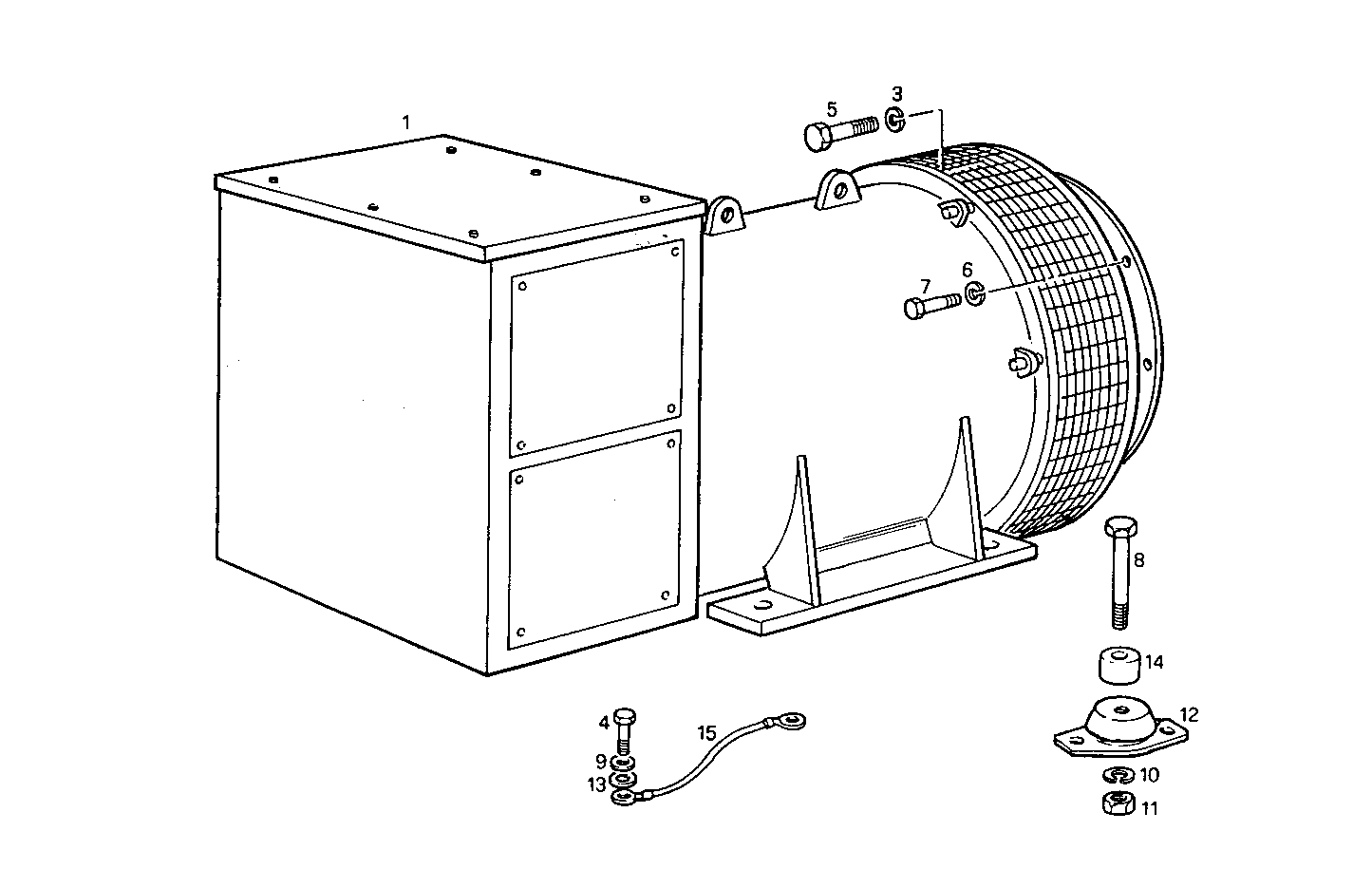

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8015646 | ELECTRIC MACHINE ELECTRIC MACHINE | 1 | |
| 3 | 11198379 | SPRING WASHER SPRING WASHER | 12 | |
| 4 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 5 | 11234721 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 6 | 17091171 | WASHER WASHER | 8 | |
| 7 | 15540431 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 8 | 15978121 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 9 | 10730501 | WASHER WASHER | 1 | |
| 10 | 11200179 | SPRING WASHER SPRING WASHER | 4 | |
| 11 | 12164011 | HEXAGON NUT HEXAGON NUT | 4 | |
| 12 | 4927807 | RUBBER PAD RUBBER PAD | 4 | |
| 13 | 11190679 | SPRING WASHER SPRING WASHER | 1 | |
| 14 | 8005402 | SPACING BAR SPACING BAR | 4 | |
| 15 | 8104707 | WIRE/CABLE WIRE/CABLE | 1 |
