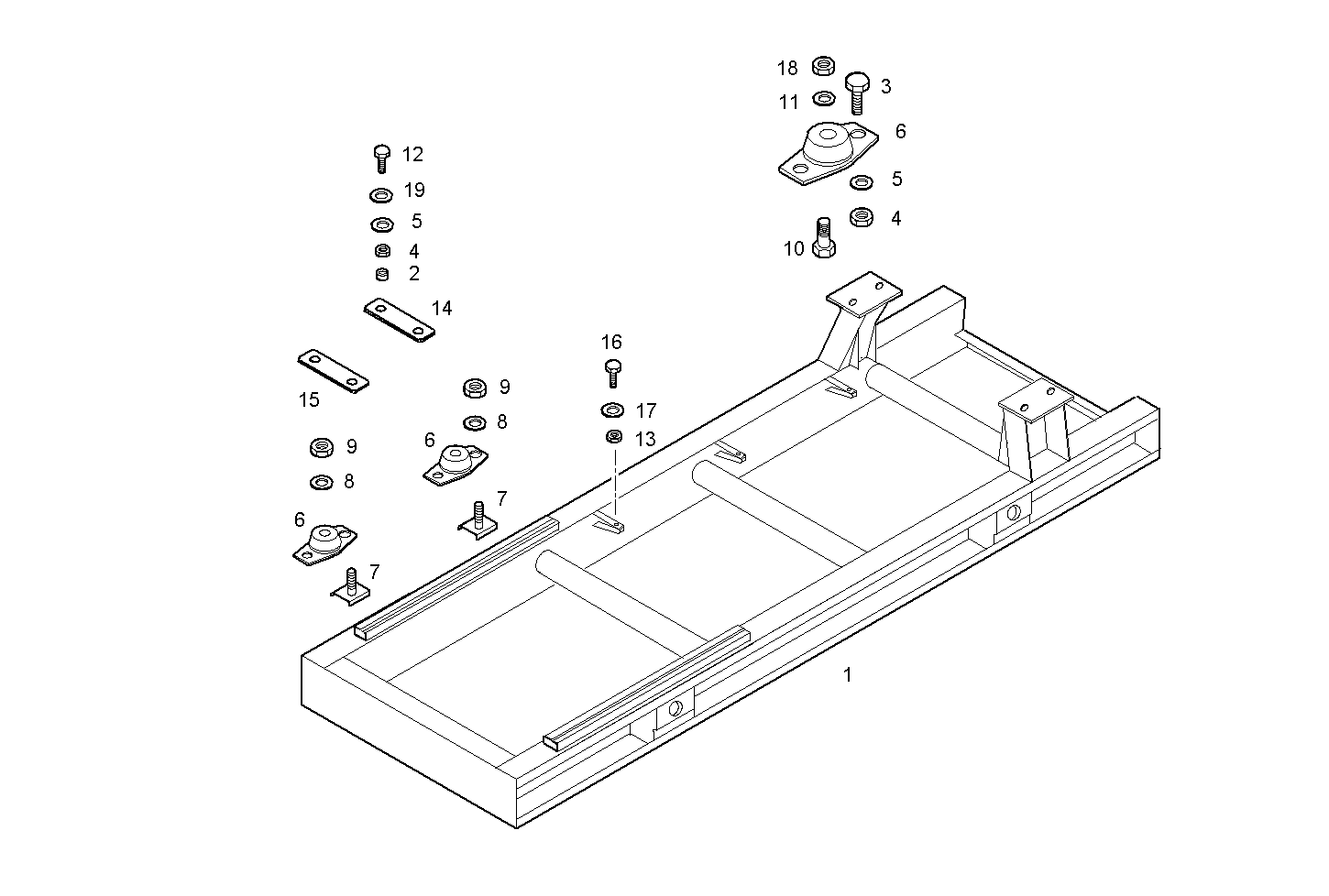

SUBBASE FOR GENERATOR UNIT
GE8210SRi28.00N970 — GE8210SRi28
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8016847 | SUBBSAE-SUPPORT FRAME SUBBSAE-SUPPORT FRAME | 1 | |
| 2 | 8019415 | SPACING BAR SPACING BAR | 4 | |
| 3 | 16614724 | SCREW SCREW | 4 | |
| 4 | 17038931 | HEXAGON NUT HEXAGON NUT | 8 | |
| 5 | 17092374 | SPRING WASHER SPRING WASHER | 4 | |
| 6 | 4955094 | RUBBER PAD RUBBER PAD | 6 | |
| 7 | 8015168 | SCREW SCREW | 8 | |
| 8 | 17091974 | SPRING WASHER SPRING WASHER | 8 | |
| 9 | 17038721 | NUT NUT | 8 | |
| 10 | 16620124 | SCREW SCREW | 2 | |
| 11 | 17093174 | WASHER WASHER | 2 | |
| 12 | 16614934 | SCREW SCREW | 4 | |
| 13 | 17037925 | HEXAGON NUT HEXAGON NUT | 5 | |
| 14 | 8017006 | SPACING BAR SPACING BAR | 1 | |
| 15 | 8010041 | SPACING BAR SPACING BAR | 1 | |
| 16 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 5 | |
| 17 | 17089474 | SPRING WASHER SPRING WASHER | 7 | |
| 18 | 17039721 | HEXAGON NUT HEXAGON NUT | 2 | |
| 19 | 17095704 | WASHER WASHER | 8 |
