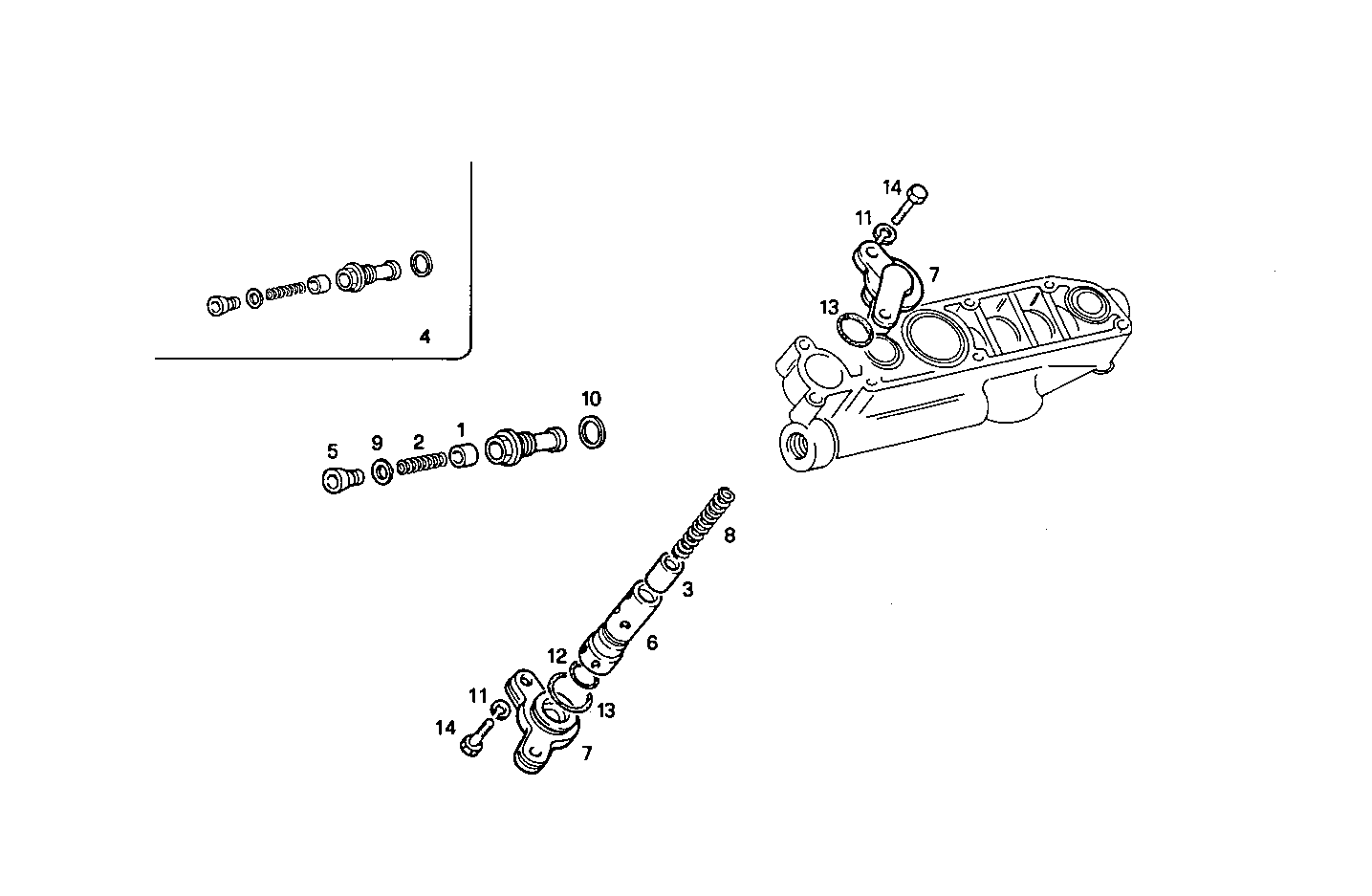

OIL PRESSURE VALVE
GE8281M32.30A001 — GE8281M32
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 564432 | OIL PUMP VALVE OIL PUMP VALVE | 1 | |
| 2 | 4750282 | SPRING SPRING | 1 | |
| 3 | 4672842 | VALVE VALVE | 1 | |
| 4 | 4752720 | BYPASS VALVE BYPASS VALVE | 1 | |
| 5 | 4750297 | PLUG PLUG | 1 | |
| 6 | 4676506 | VALVE HOUSING VALVE HOUSING | 1 | |
| 7 | 4676507 | COVER COVER | 2 | |
| 8 | 4677094 | SPRING SPRING | 1 | |
| 9 | 10257460 | SEAL GASKET SEAL GASKET | 1 | |
| 10 | 10265160 | SEAL GASKET SEAL GASKET | 1 | |
| 11 | 11198171 | SPRING WASHER SPRING WASHER | 4 | |
| 12 | 14457581 | O-RING O-RING | 1 | |
| 13 | 14458081 | O-RING O-RING | 2 | |
| 14 | 16043624 | SCREW SCREW | 4 |
