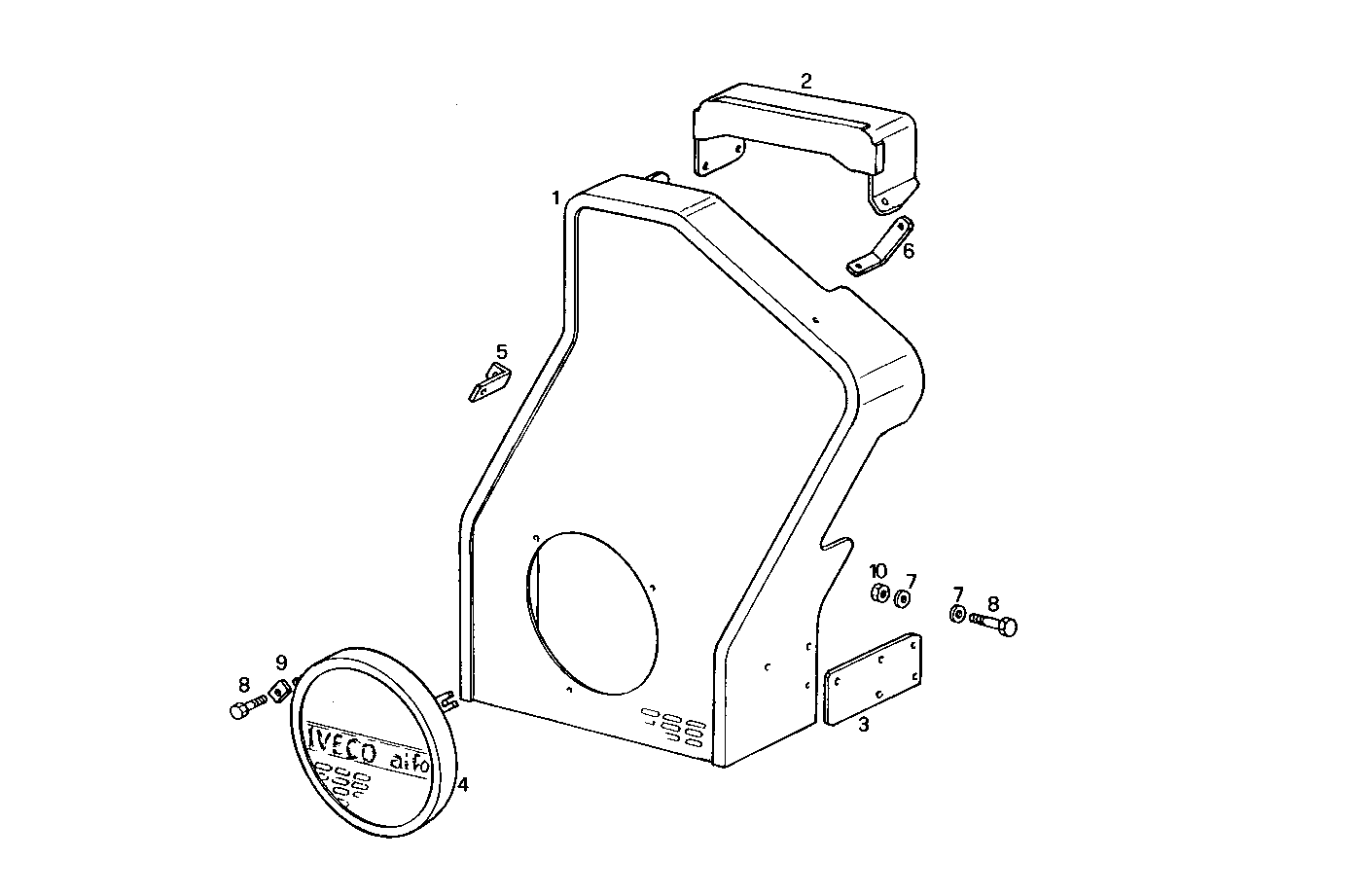

SHIELDS
GE8281M32.30A001 — GE8281M32
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8025403 | PROTECTION PROTECTION | 1 | |
| 2 | 8025456 | PROTECTION PROTECTION | 1 | |
| 3 | 8025430 | RETAINER RETAINER | 2 | |
| 4 | 8022086 | COVER COVER | 1 | |
| 5 | 8025459 | RETAINER RETAINER | 1 | |
| 6 | 8025458 | RETAINER RETAINER | 1 | |
| 7 | 17089574 | WASHER WASHER | 15 | |
| 8 | 16605424 | SCREW SCREW | 14 | |
| 9 | 7300648 | LOCKING PLATE LOCKING PLATE | 3 | |
| 10 | 17037821 | HEXAGON NUT HEXAGON NUT | 4 |
