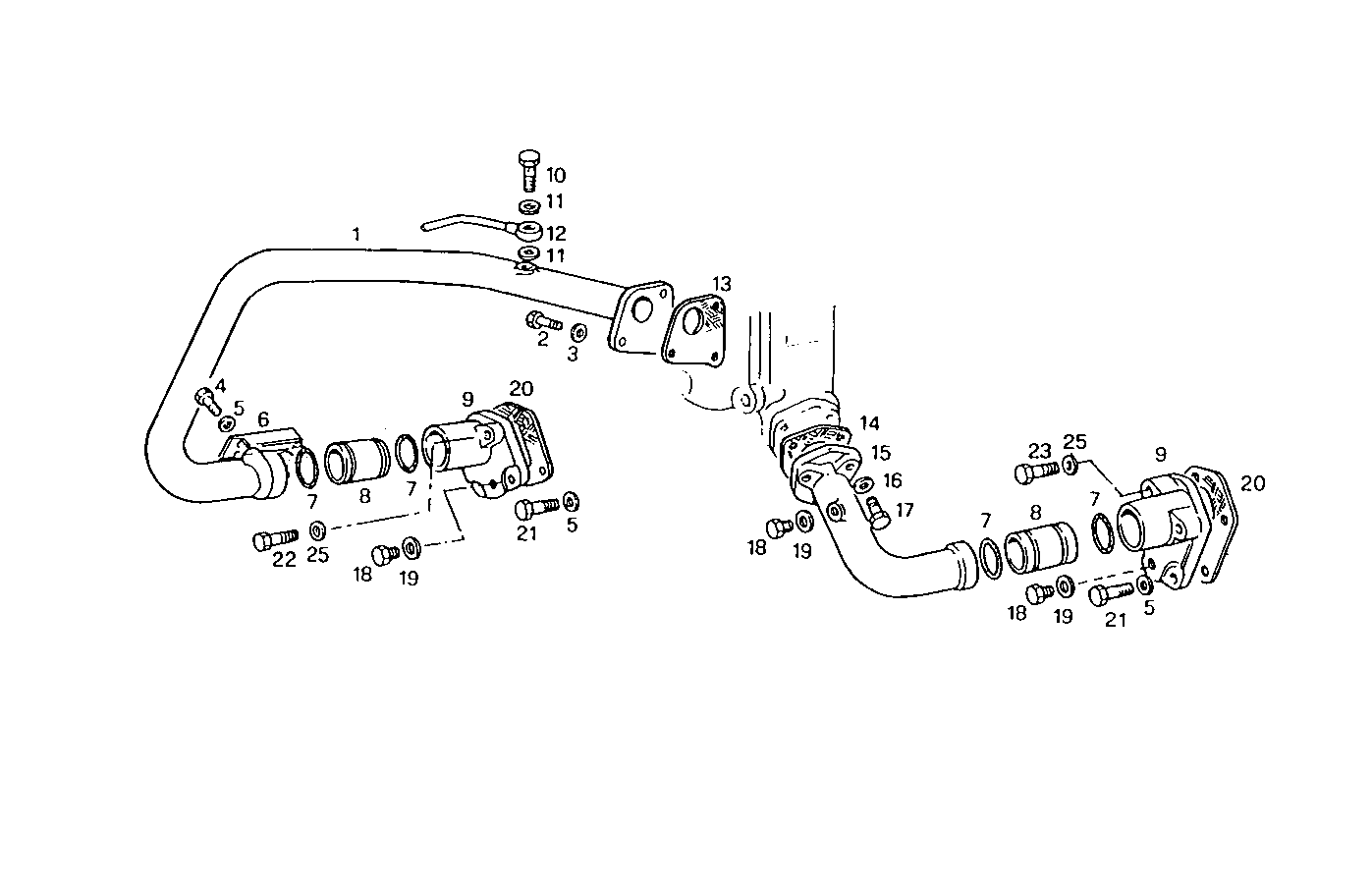

WATER LINES
GE8281M32.30A001 — GE8281M32
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8109500 | WATER PIPE WATER PIPE | 1 | |
| 2 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 3 | 17090274 | WASHER WASHER | 3 | |
| 4 | 16605424 | SCREW SCREW | 2 | |
| 5 | 17089474 | SPRING WASHER SPRING WASHER | 5 | |
| 6 | 8110840 | RETAINER RETAINER | 1 | |
| 7 | 14464281 | O-RING O-RING | 4 | |
| 8 | 8112495 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 2 | |
| 9 | 8109497 | COVER COVER | 2 | |
| 10 | 4864082 | BANJO BOLT BANJO BOLT | 1 | |
| 11 | 4858607 | WASHER WASHER | 2 | |
| 12 | 8014477 | WATER PIPE WATER PIPE | 1 | |
| 13 | 4716260 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 14 | 4816749 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 15 | 8109498 | WATER PIPE WATER PIPE | 1 | |
| 16 | 17088474 | WASHER WASHER | 3 | |
| 17 | 16604124 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 18 | 16692311 | PLUG PLUG | 3 | |
| 19 | 4858608 | SEAL GASKET SEAL GASKET | 3 | |
| 20 | 8105608 | GASKET GASKET | 2 | |
| 21 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 22 | 16691324 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 2 | |
| 23 | 16691224 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 2 | |
| 25 | 17101534 | SPRING WASHER SPRING WASHER | 4 |
