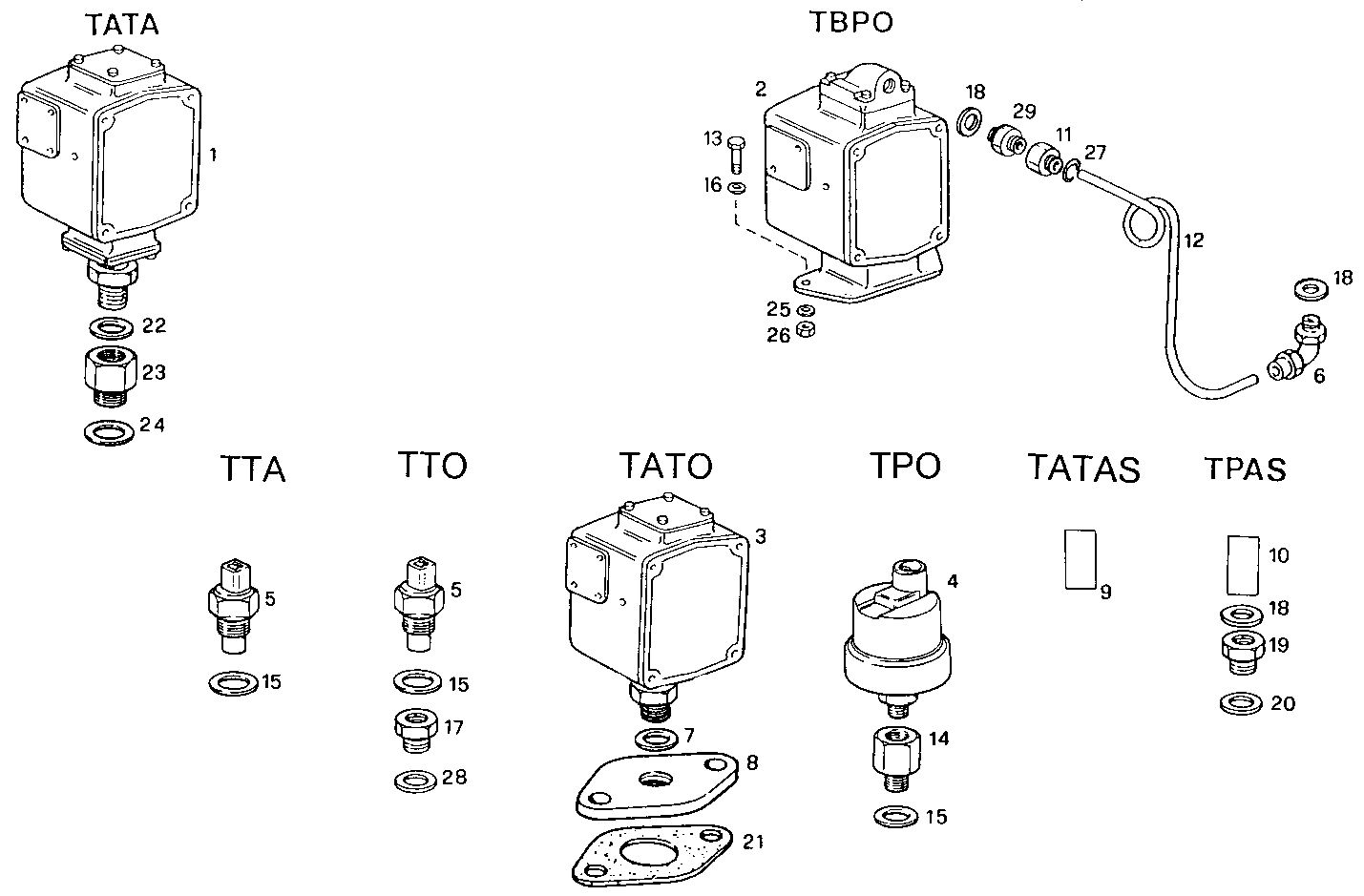

SENDER UNITS FOR INSTRUMENTS
GE8281SRG75.10A80E — GE8281SRG75
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8110742 | TRANSMITTER TRANSMITTER | 1 | |
| 2 | 8110741 | TRANSMITTER TRANSMITTER | 1 | |
| 3 | 8111450 | TRANSMITTER TRANSMITTER | 1 | |
| 4 | 8100563 | TRANSMITTER TRANSMITTER | 1 | |
| 5 | 4933019 | TRANSMITTER TRANSMITTER | 2 | |
| 6 | 8111261 | PIPE SOCKET PIPE SOCKET | 1 | |
| 7 | 11271460 | GASKET GASKET | 1 | |
| 8 | 8111336 | FLANGE FLANGE | 1 | |
| 9 | 8023756 | TRANSMITTER TRANSMITTER | 1 | |
| 10 | 8024371 | TRANSMITTER TRANSMITTER | 1 | |
| 11 | 8110258 | PIPE SOCKET PIPE SOCKET | 1 | |
| 12 | 8021856 | HOSE HOSE | 1 | |
| 13 | 16603624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 8011514 | THREADED UNION THREADED UNION | 1 | |
| 15 | 4858609 | WASHER WASHER | 3 | |
| 16 | 17094604 | WASHER WASHER | 2 | |
| 17 | 4929231 | PIPE SOCKET PIPE SOCKET | 1 | |
| 18 | 4858606 | GASKET GASKET | 3 | |
| 19 | 4928113 | PIPE SOCKET PIPE SOCKET | 1 | |
| 20 | 4858608 | SEAL GASKET SEAL GASKET | 1 | |
| 21 | 4863361 | GASKET GASKET | 1 | |
| 22 | 11271460 | GASKET GASKET | 1 | |
| 23 | 8021213 | PIPE SOCKET PIPE SOCKET | 1 | |
| 24 | 98429281 | SEAL GASKET SEAL GASKET | 1 | |
| 25 | 17088474 | WASHER WASHER | 2 | |
| 26 | 17037821 | HEXAGON NUT HEXAGON NUT | 2 | |
| 27 | 8024645 | O-RING O-RING | 1 | |
| 28 | 10284460 | SEAL GASKET SEAL GASKET | 1 | |
| 29 | 16500011 | PIPE SOCKET PIPE SOCKET | 1 |
