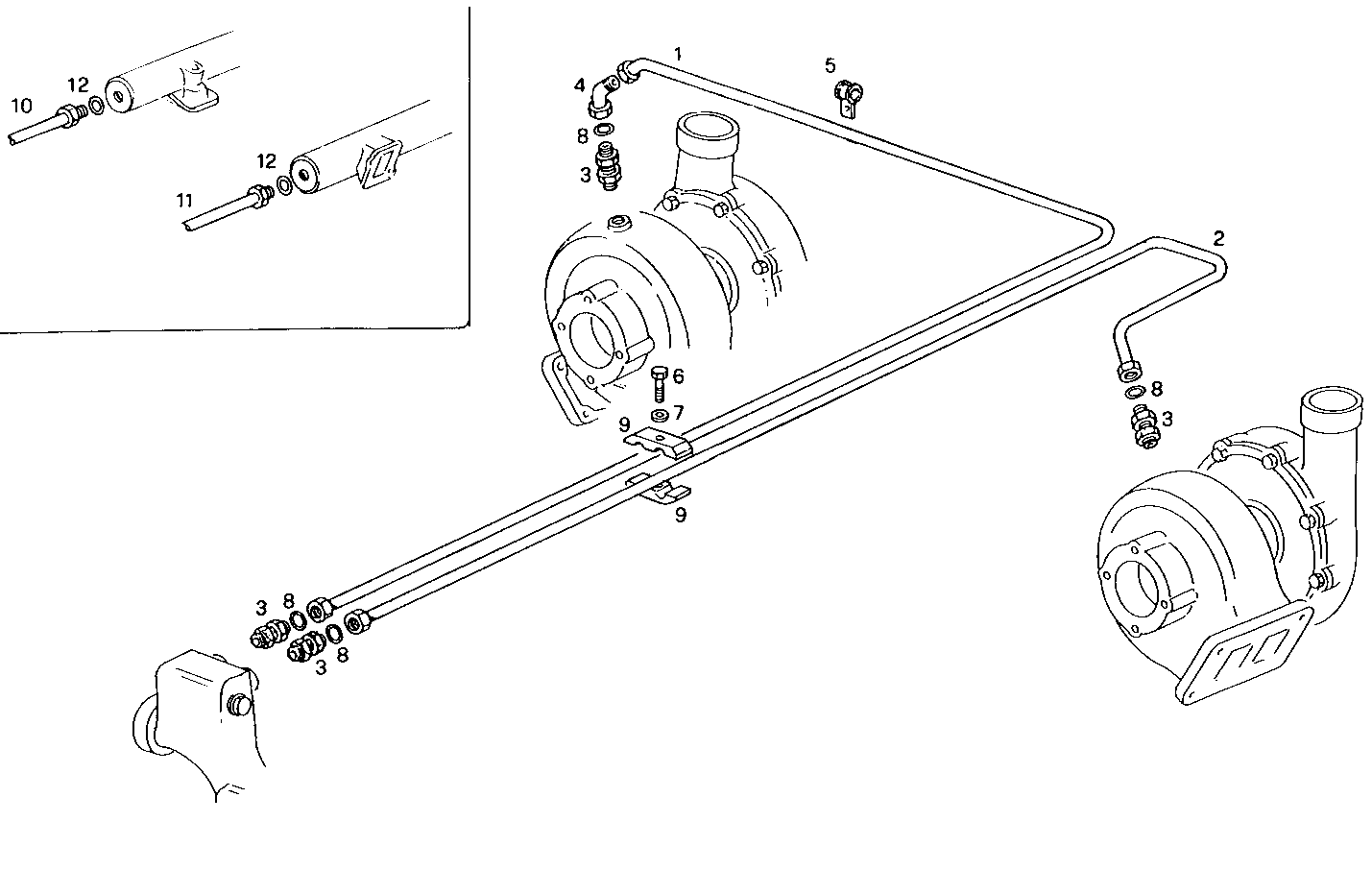

WATER LINES
GE8281SRG85.10A80E — GE8281SRG85
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8026895 | WATER PIPE WATER PIPE | 1 | |
| 2 | 8026894 | WATER PIPE WATER PIPE | 1 | |
| 3 | 8026882 | PIPE SOCKET PIPE SOCKET | 4 | |
| 4 | 16526514 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 5 | 8111710 | CLIP CLIP | 2 | |
| 6 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 7 | 17101534 | SPRING WASHER SPRING WASHER | 1 | |
| 8 | 8024652 | O-RING O-RING | 4 | |
| 9 | 8008215 | CLAMP CLAMP | 2 | |
| 10 | 8026945 | WATER PIPE WATER PIPE | 1 | |
| 11 | 8026944 | WATER PIPE WATER PIPE | 1 | |
| 12 | 8024645 | O-RING O-RING | 1 |
