400-450KVA 50-60HZ
GE8281SRi26.01A955 — GE8281SRi26

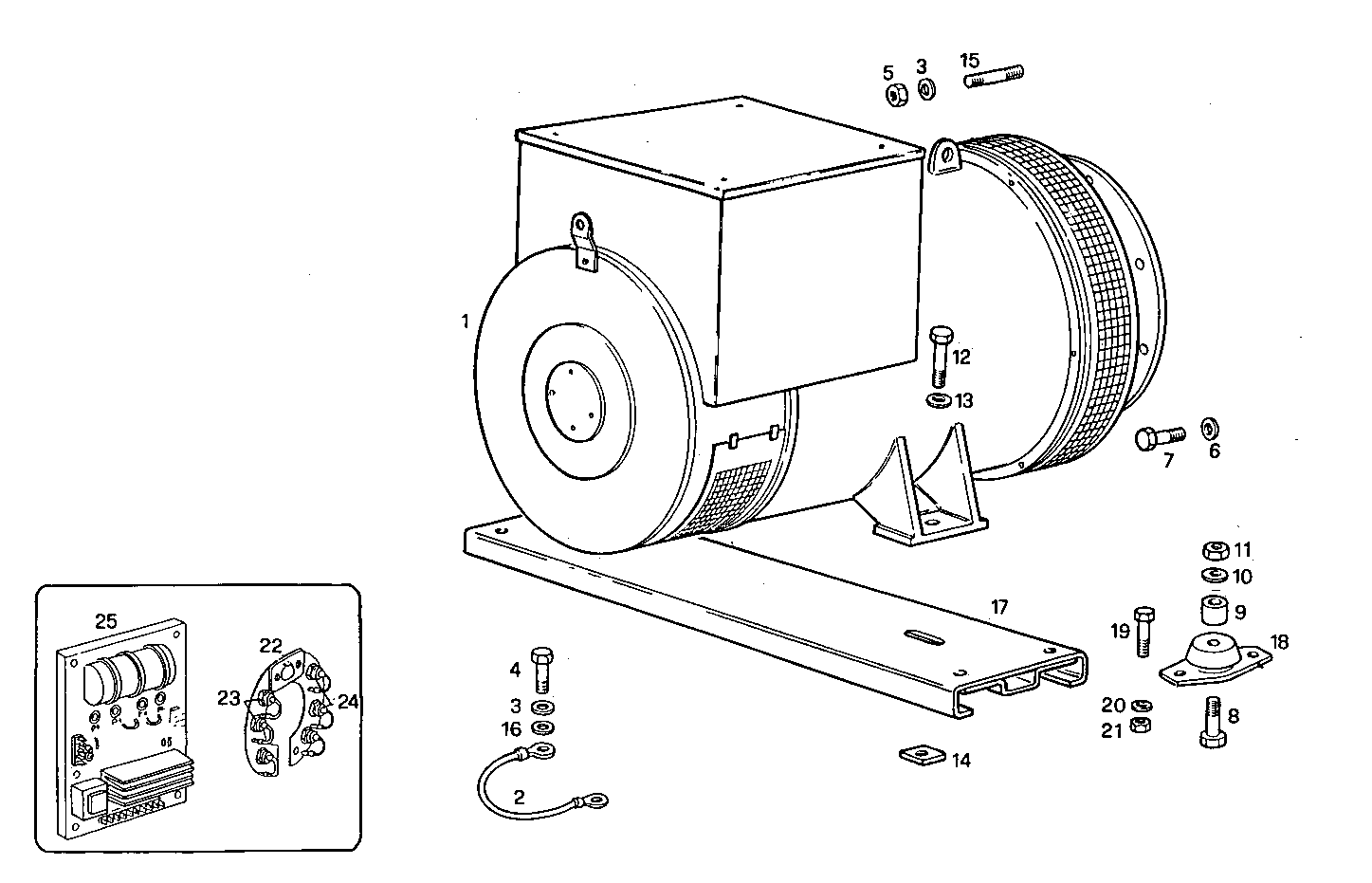

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8016140 | ELECTRIC MACHINE ELECTRIC MACHINE | 1 | |
| 2 | 8006993 | EARTH WIRE EARTH WIRE | 1 | |
| 3 | 17090174 | SPRING WASHER SPRING WASHER | 13 | |
| 4 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 5 | 17038221 | HEXAGON NUT HEXAGON NUT | 12 | |
| 6 | 17091174 | SPRING WASHER SPRING WASHER | 8 | |
| 7 | 15540431 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 8 | 16620224 | SCREW SCREW | 4 | |
| 9 | 8016025 | SPACING BAR SPACING BAR | 4 | |
| 10 | 17093174 | WASHER WASHER | 4 | |
| 11 | 17039721 | HEXAGON NUT HEXAGON NUT | 4 | |
| 12 | 16620124 | SCREW SCREW | 2 | |
| 13 | 17093174 | WASHER WASHER | 2 | |
| 14 | 8019197 | PLATE PLATE | 2 | |
| 15 | 17368124 | STUD STUD | 12 | |
| 16 | 17095104 | WASHER WASHER | 1 | |
| 17 | 8019196 | SUPPORT SUPPORT | 1 | |
| 18 | 4755094 | RETAINER RETAINER | 2 | |
| 19 | 8015168 | SCREW SCREW | 4 | |
| 20 | 17091974 | SPRING WASHER SPRING WASHER | 4 | |
| 21 | 17038721 | NUT NUT | 4 | |
| 22 | 8092295 | SUPPRESSOR SUPPRESSOR | 1 | |
| 23 | 8092297 | DIODE DIODE | 1 | |
| 24 | 8092296 | DIODE DIODE | 1 | |
| 25 | 8092292 | EL.MACHINE VOLTAGE REGUL. EL.MACHINE VOLTAGE REGUL. | 1 |
