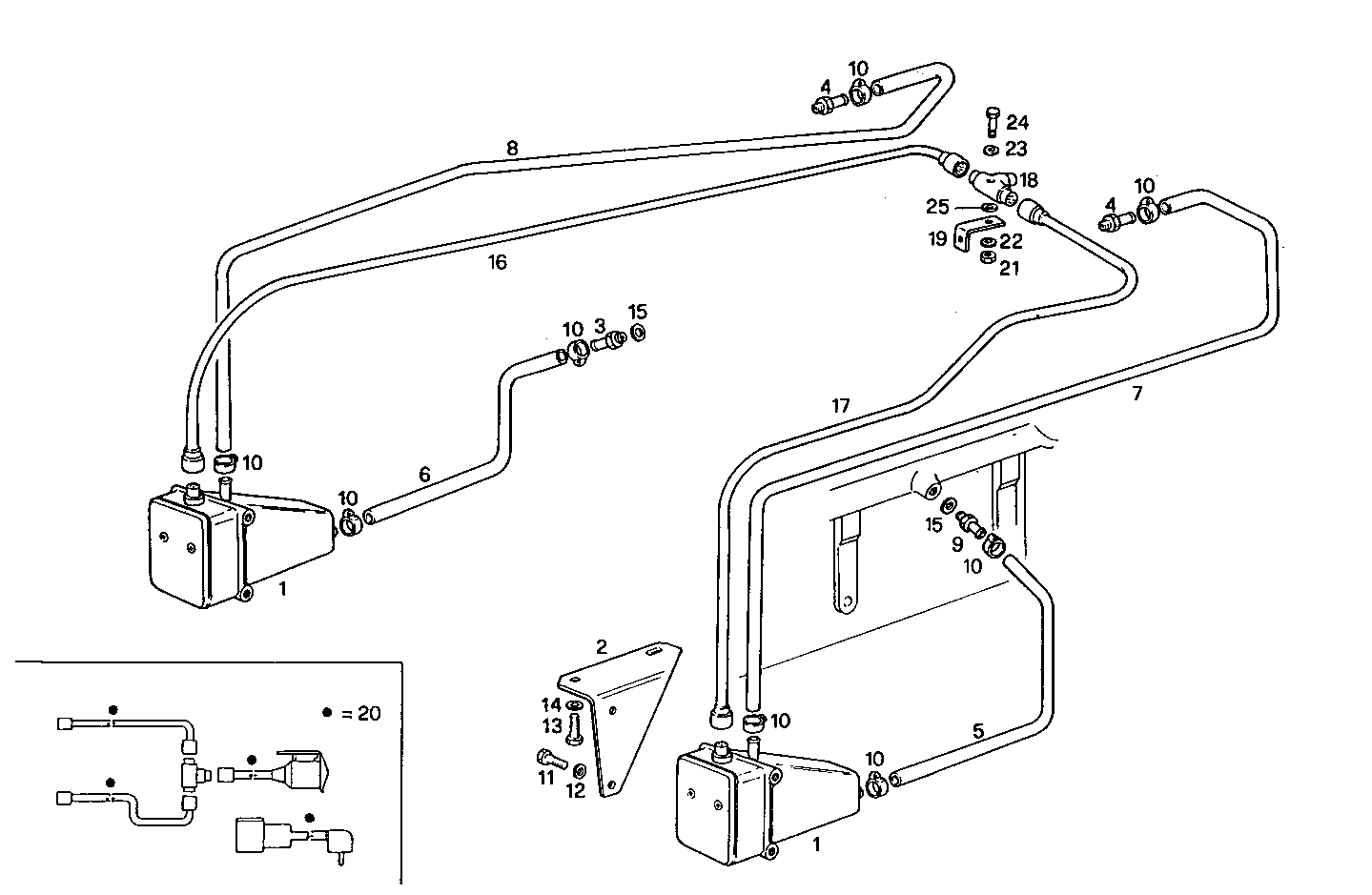

WATER PREHEATER DEVICE - 220V
GE8281SRi26.01A955 — GE8281SRi26
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8006935 | HEATER HEATER | 2 | |
| 2 | 8007061 | SUPPORT SUPPORT | 2 | |
| 3 | 4616630 | THREADED UNION THREADED UNION | 1 | |
| 4 | 8112319 | PIPE SOCKET PIPE SOCKET | 2 | |
| 5 | 8111813 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 6 | 8005758 | WATER HOSE WATER HOSE | 1 | |
| 7 | 8114061 | WATER HOSE WATER HOSE | 1 | |
| 8 | 8112320 | WATER HOSE WATER HOSE | 1 | |
| 9 | 8112804 | PIPE SOCKET PIPE SOCKET | 1 | |
| 10 | 17764492 | CLIP CLIP | 8 | |
| 11 | 10902121 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 12 | 11197779 | SPRING WASHER SPRING WASHER | 4 | |
| 13 | 10923521 | SCREW SCREW | 4 | |
| 14 | 10730501 | WASHER WASHER | 4 | |
| 15 | 10263460 | WASHER WASHER | 2 | |
| 16 | 8112321 | WIRE/CABLE WIRE/CABLE | 1 | |
| 17 | 8112322 | WIRE/CABLE WIRE/CABLE | 1 | |
| 18 | 8111867 | CONNECTION CONNECTION | 1 | |
| 19 | 8104447 | RETAINER RETAINER | 1 | |
| 20 | 8009376 | WIRE/CABLE WIRE/CABLE | 1 | |
| 21 | 12574111 | HEXAGON NUT HEXAGON NUT | 1 | |
| 22 | 10571470 | SPRING WASHER SPRING WASHER | 1 | |
| 23 | 14496501 | WASHER WASHER | 1 | |
| 24 | 10978521 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 25 | 14497801 | WASHER WASHER | 2 |
