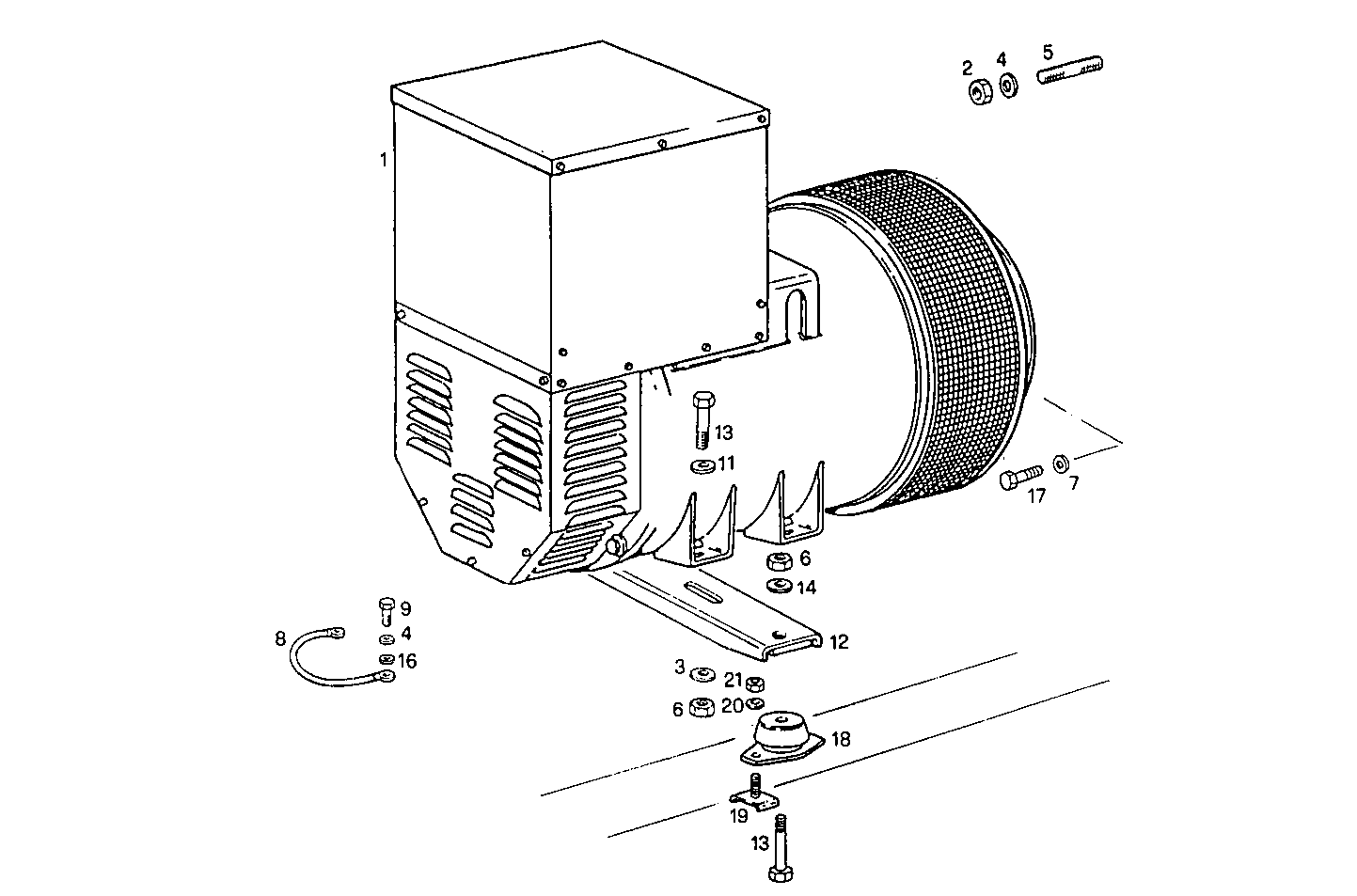

400-450KVA 50-60HZ
GE8281SRi26.02A955 — GE8281SRi26
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8028084 | ELECTRIC MACHINE ELECTRIC MACHINE | 1 | |
| 2 | 17038221 | HEXAGON NUT HEXAGON NUT | 12 | |
| 3 | 17096204 | WASHER WASHER | 2 | |
| 4 | 17090174 | SPRING WASHER SPRING WASHER | 13 | |
| 5 | 17368224 | STUD STUD | 12 | |
| 6 | 17039721 | HEXAGON NUT HEXAGON NUT | 4 | |
| 7 | 17091174 | SPRING WASHER SPRING WASHER | 8 | |
| 8 | 8023916 | EARTH WIRE EARTH WIRE | 1 | |
| 9 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 8016962 | WASHER WASHER | 2 | |
| 12 | 8016859 | SUPPORT SUPPORT | 1 | |
| 13 | 16620224 | SCREW SCREW | 4 | |
| 14 | 17093174 | WASHER WASHER | 2 | |
| 16 | 17095104 | WASHER WASHER | 1 | |
| 17 | 15540431 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 18 | 4955094 | RUBBER PAD RUBBER PAD | 2 | |
| 19 | 8015168 | SCREW SCREW | 4 | |
| 20 | 17091974 | SPRING WASHER SPRING WASHER | 4 | |
| 21 | 17038721 | NUT NUT | 4 |
