250KVA 50HZ
GE8281SRM44.10A60E — GE8281SRM44

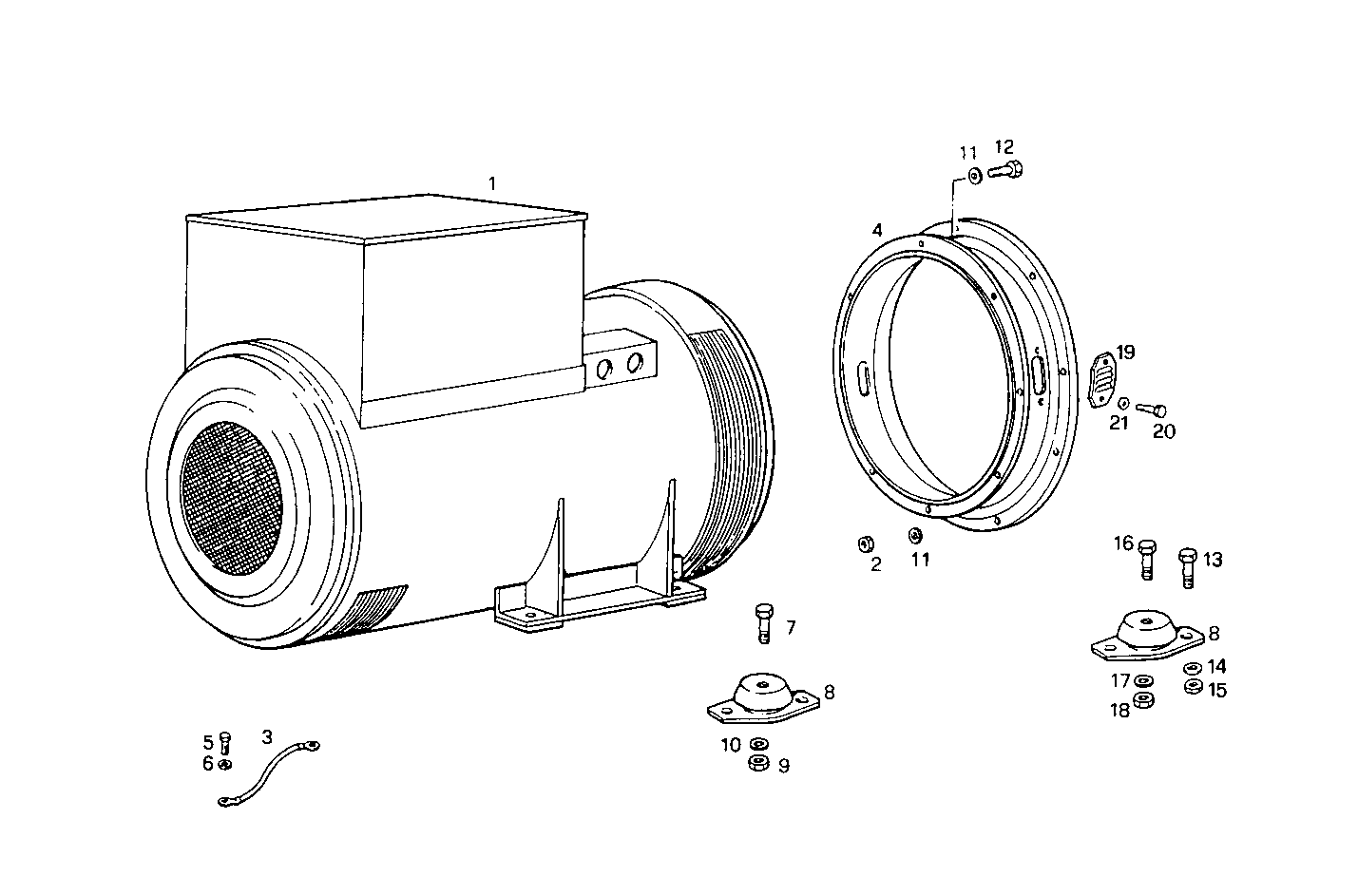

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8008392 | ELECTRIC MACHINE ELECTRIC MACHINE | 1 | |
| 2 | 17038221 | HEXAGON NUT HEXAGON NUT | 12 | |
| 3 | 8104707 | WIRE/CABLE WIRE/CABLE | 1 | |
| 4 | 4928053 | COUPLING BELL COUPLING BELL | 1 | |
| 5 | 16043124 | SCREW SCREW | 1 | |
| 6 | 17089471 | SPRING WASHER SPRING WASHER | 1 | |
| 7 | 15997521 | SCREW SCREW | 12 | |
| 8 | 4955094 | RUBBER PAD RUBBER PAD | 6 | |
| 9 | 12164511 | HEXAGON NUT HEXAGON NUT | 12 | |
| 10 | 17093171 | WASHER WASHER | 12 | |
| 11 | 17090174 | SPRING WASHER SPRING WASHER | 24 | |
| 12 | 16607824 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 13 | 16614624 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 14 | 17092374 | SPRING WASHER SPRING WASHER | 4 | |
| 15 | 17038921 | NUT NUT | 4 | |
| 16 | 16620124 | SCREW SCREW | 2 | |
| 17 | 17093174 | WASHER WASHER | 2 | |
| 18 | 17039721 | HEXAGON NUT HEXAGON NUT | 2 | |
| 19 | 4934736 | COVER COVER | 2 | |
| 20 | 16605424 | SCREW SCREW | 4 | |
| 21 | 17089474 | SPRING WASHER SPRING WASHER | 4 |
