250KVA 50HZ
GE8281SRM44.10A60E — GE8281SRM44

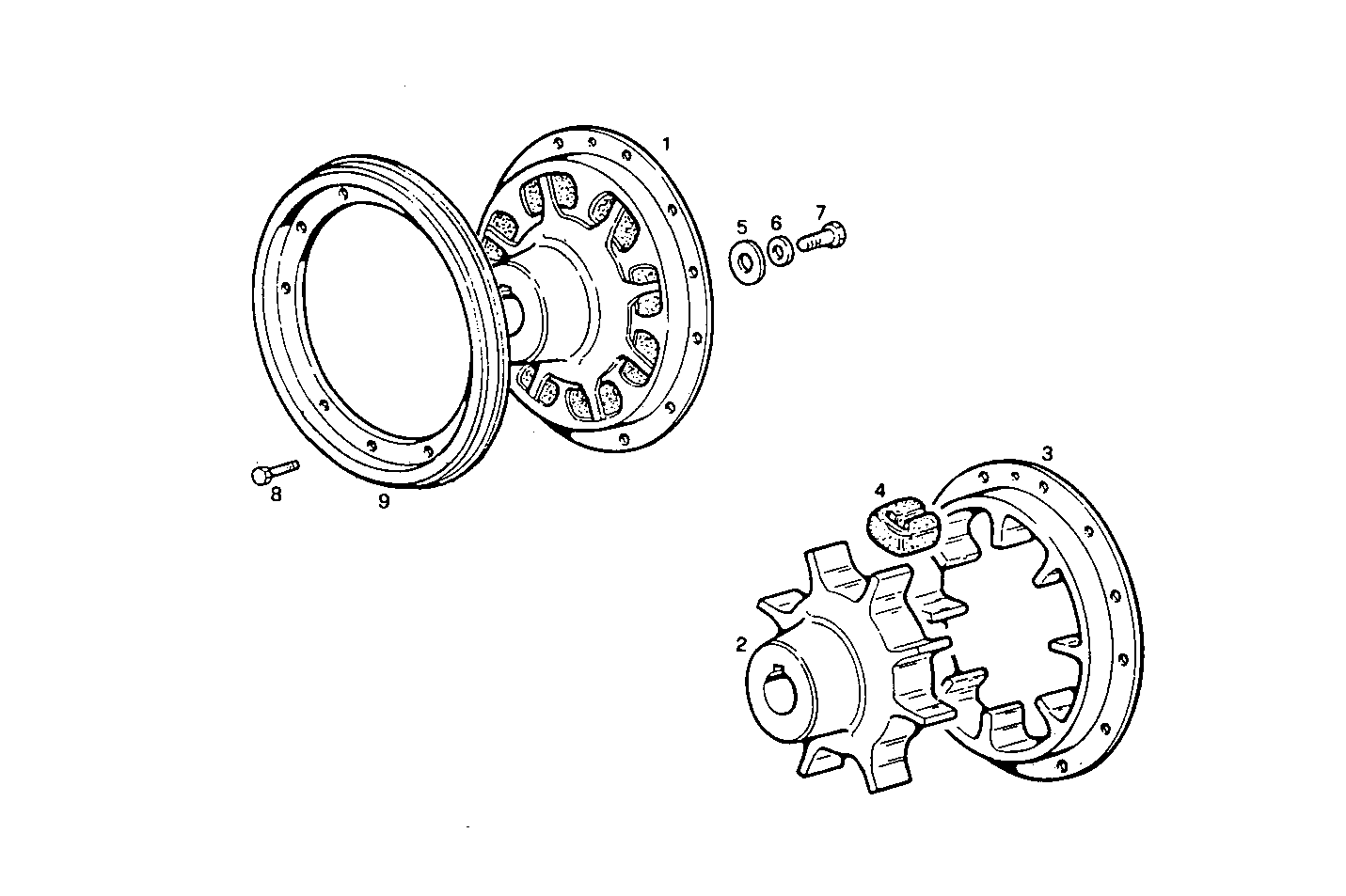

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8005224 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 2 | 8005225 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 3 | 4930912 | FLEXPLATE FLEXPLATE | 1 | |
| 4 | 4930911 | RUBBER PAD RUBBER PAD | 8 | |
| 5 | 8005254 | WASHER WASHER | 1 | |
| 6 | 17093171 | WASHER WASHER | 1 | |
| 7 | 15228221 | SCREW SCREW | 1 | |
| 8 | 14274921 | LOCKING SCREW LOCKING SCREW | 12 | |
| 9 | 4932129 | RING RING | 1 |
