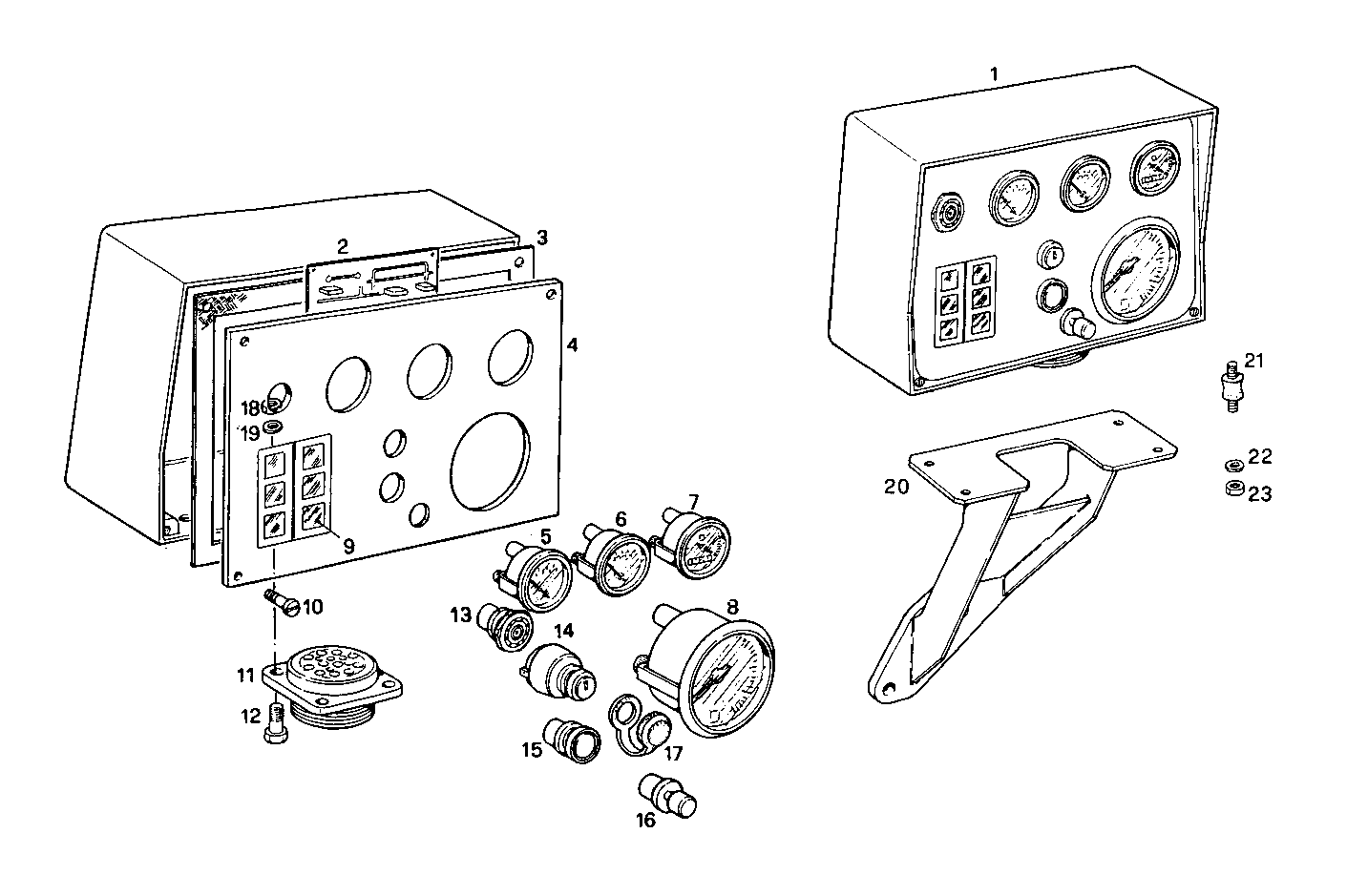

ELECTRIC INSTRUMENTS PANEL
GE8281SRM44.10A60E — GE8281SRM44
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8010330 | INSTRUMENTS BOARD INSTRUMENTS BOARD | 1 | |
| 2 | 8007783 | ELECTRONIC CARD ELECTRONIC CARD | 1 | |
| 3 | 8100350 | GASKET GASKET | 1 | |
| 4 | 8010437 | SUPPORT SUPPORT | 1 | |
| 5 | 8103060 | PRESSURE GAUGE PRESSURE GAUGE | 1 | |
| 6 | 8103061 | THERMOMETER THERMOMETER | 1 | |
| 7 | 8105392 | VOLTMETER VOLTMETER | 1 | |
| 8 | 8110225 | PLATE PLATE | 1 | |
| 9 | 8110229 | WARNING LIGHT WARNING LIGHT | 6 | |
| 10 | 8103662 | SCREW SCREW | 4 | |
| 11 | 8105629 | CONNECTION CONNECTION | 1 | |
| 12 | 17129714 | SCREW SCREW | 4 | |
| 13 | 8110230 | ACOUSTIC HORN ACOUSTIC HORN | 1 | |
| 14 | 8103708 | SWITCH SWITCH | 1 | |
| 15 | 8110227 | SWITCH SWITCH | 1 | |
| 16 | 8111824 | PUSH BUTTON PUSH BUTTON | 1 | |
| 17 | 8110226 | CAP CAP | 1 | |
| 18 | 17037521 | NUT NUT | 4 | |
| 19 | 17094004 | WASHER WASHER | 4 | |
| 20 | 8109785 | SUPPORT SUPPORT | 1 | |
| 21 | 4910949 | RUBBER PAD RUBBER PAD | 4 | |
| 22 | 17088474 | WASHER WASHER | 4 | |
| 23 | 17037821 | HEXAGON NUT HEXAGON NUT | 4 |
