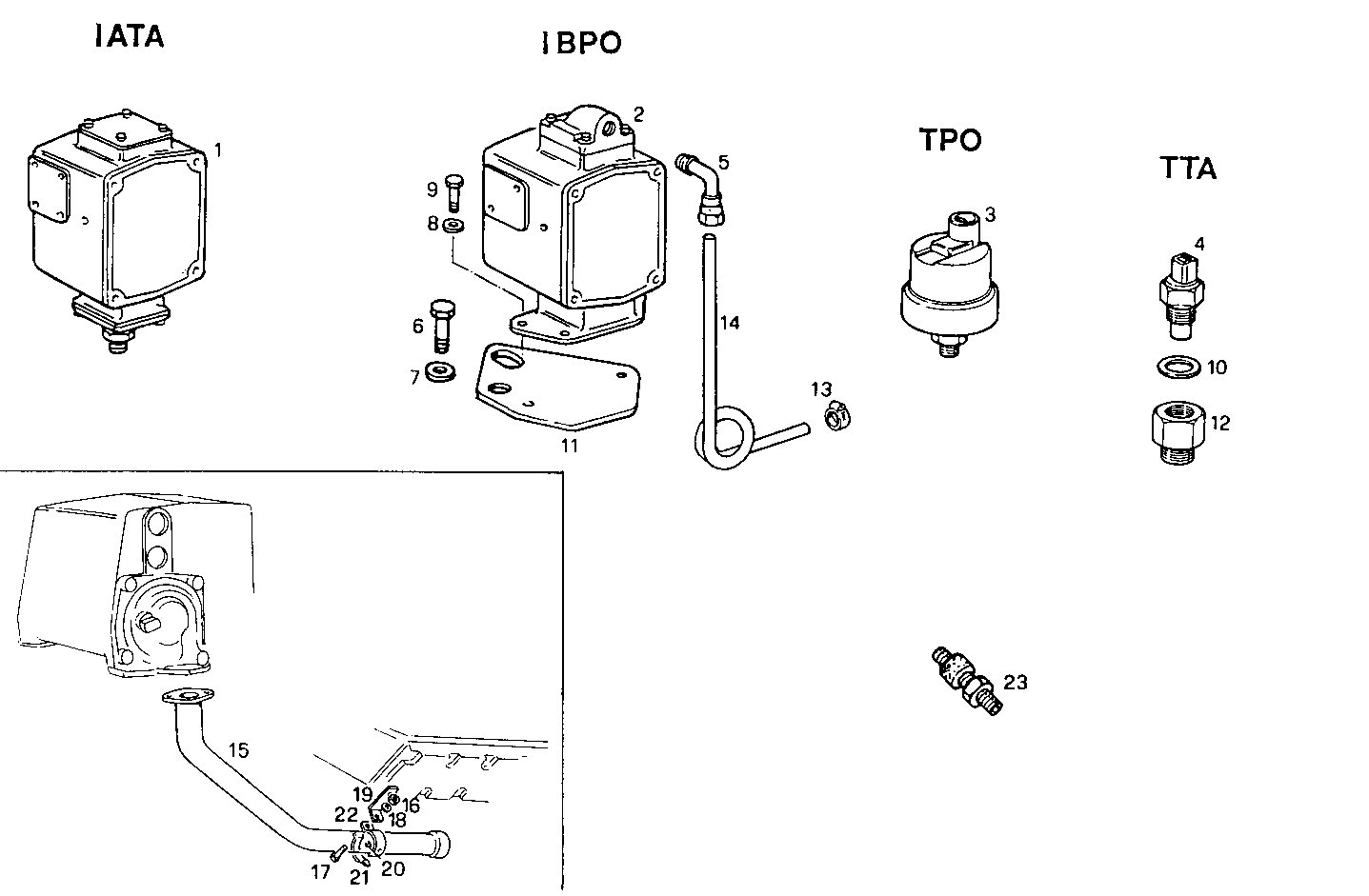

SENDER UNITS FOR INSTRUMENTS - 12/24V
GE8281SRM44.10A61E — GE8281SRM44
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8110742 | TRANSMITTER TRANSMITTER | 1 | |
| 2 | 8111452 | TRANSMITTER TRANSMITTER | 2 | |
| 3 | 8100417 | TRANSMITTER TRANSMITTER | 2 | |
| 4 | 8100418 | TRANSMITTER TRANSMITTER | 2 | |
| 5 | 8111261 | PIPE SOCKET PIPE SOCKET | 2 | |
| 6 | 15540221 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 7 | 11190779 | SPRING WASHER SPRING WASHER | 2 | |
| 8 | 11197779 | SPRING WASHER SPRING WASHER | 2 | |
| 9 | 10979421 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 10282460 | SEAL GASKET SEAL GASKET | 2 | |
| 11 | 8111263 | RETAINER RETAINER | 1 | |
| 12 | 4928330 | PIPE SOCKET PIPE SOCKET | 2 | |
| 13 | 4656139 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 14 | 8111262 | OIL LINE OIL LINE | 1 | |
| 15 | 8112442 | WATER PIPE WATER PIPE | 1 | |
| 16 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 17 | 16043421 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 18 | 11193879 | SPRING WASHER SPRING WASHER | 1 | |
| 19 | 8113297 | RETAINER RETAINER | 1 | |
| 20 | 1366290 | RUBBER PAD RUBBER PAD | 4 | |
| 21 | 8113295 | CLAMP CLAMP | 1 | |
| 22 | 8113296 | CLAMP CLAMP | 1 | |
| 23 | 4933865 | TRANSMITTER TRANSMITTER | 1 |
