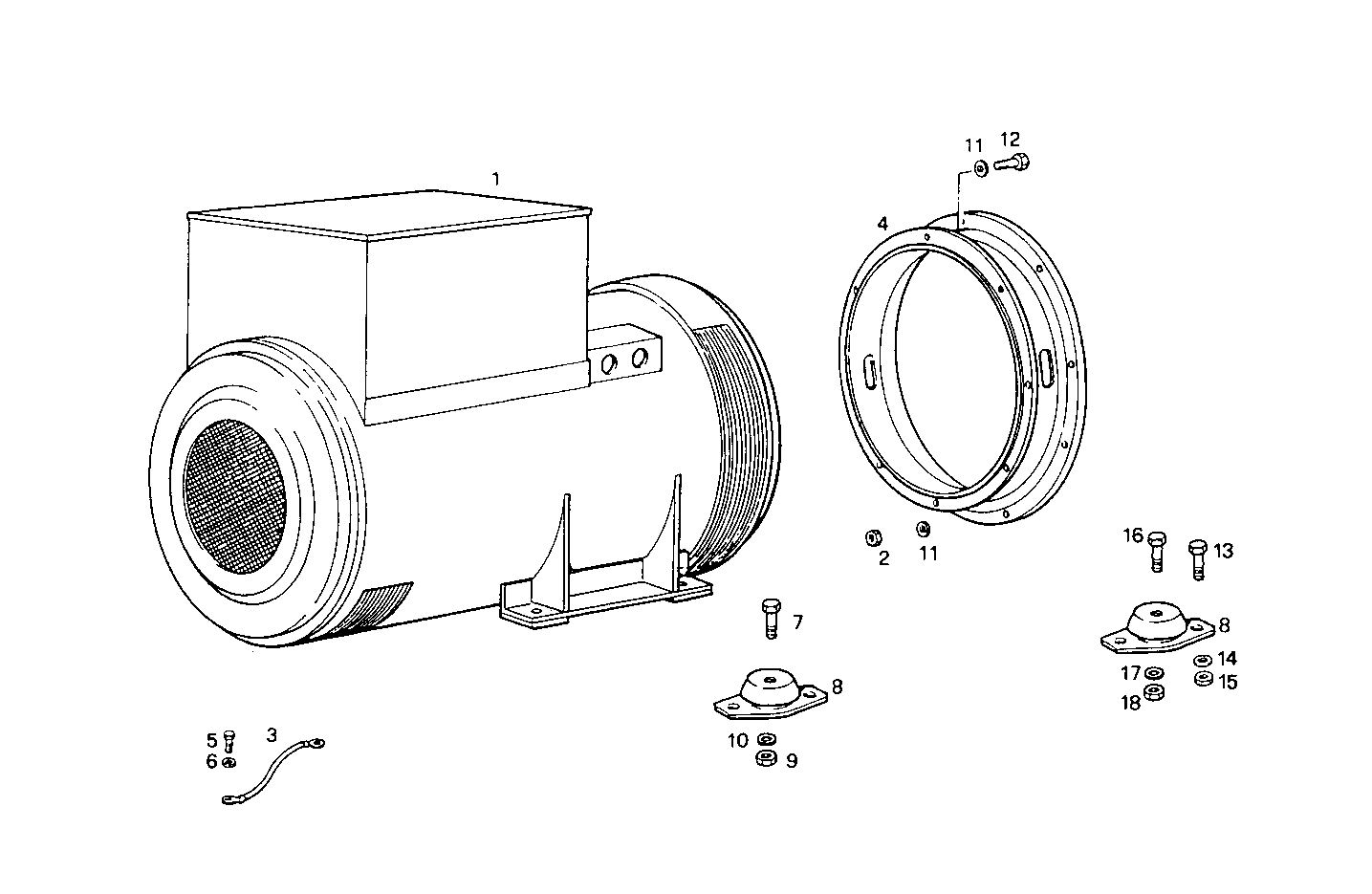

300KVA 50HZ
GE8281SRM44.10A62E — GE8281SRM44
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8008394 | ELECTRIC MACHINE ELECTRIC MACHINE | 1 | |
| 2 | 17038221 | HEXAGON NUT HEXAGON NUT | 12 | |
| 3 | 8104707 | WIRE/CABLE WIRE/CABLE | 1 | |
| 4 | 4928053 | COUPLING BELL COUPLING BELL | 1 | |
| 5 | 16043124 | SCREW SCREW | 1 | |
| 6 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 7 | 15997521 | SCREW SCREW | 12 | |
| 8 | 4955094 | RUBBER PAD RUBBER PAD | 4 | |
| 9 | 12164511 | HEXAGON NUT HEXAGON NUT | 12 | |
| 10 | 11200679 | SPRING WASHER SPRING WASHER | 12 | |
| 11 | 17090174 | SPRING WASHER SPRING WASHER | 24 | |
| 12 | 16607824 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 13 | 16614624 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 14 | 17092374 | SPRING WASHER SPRING WASHER | 4 | |
| 15 | 17038921 | NUT NUT | 4 | |
| 16 | 16620124 | SCREW SCREW | 2 | |
| 17 | 17093174 | WASHER WASHER | 2 | |
| 18 | 17039721 | HEXAGON NUT HEXAGON NUT | 2 |
