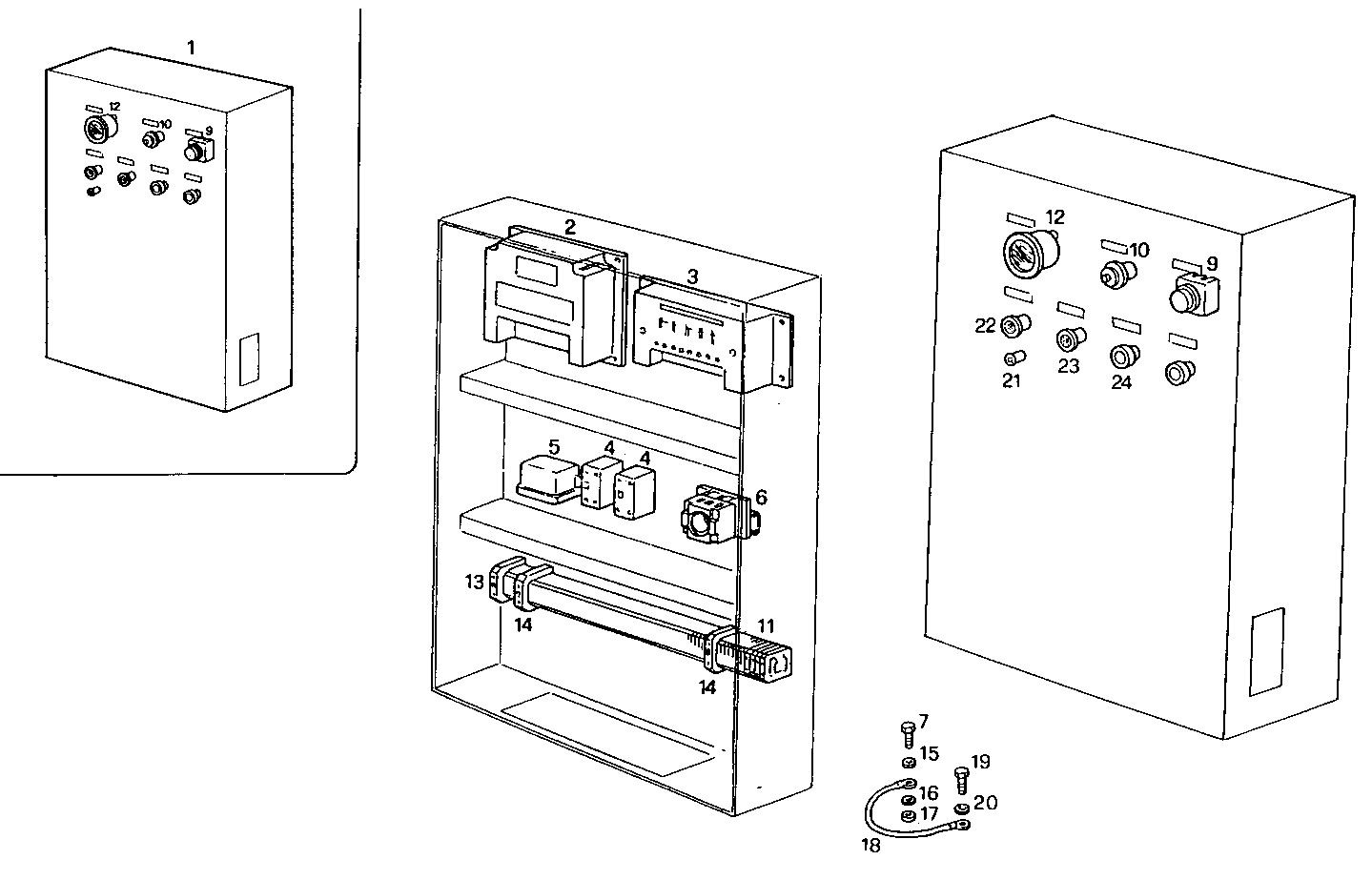

MANUAL CONTROL BOARD
GE8281SRM44.30A60E — GE8281SRM44
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8023583 | CONTROL BOARD ASSY CONTROL BOARD ASSY | 1 | |
| 2 | 8022929 | SPEED CONTROL SPEED CONTROL | 1 | |
| 3 | 8104389 | SWITCHGEAR SWITCHGEAR | 1 | |
| 4 | 8023505 | RELAY RELAY | 5 | |
| 5 | 8108575 | RELAY RELAY | 1 | |
| 6 | 8102662 | RELAY RELAY | 1 | |
| 7 | 16605924 | SCREW SCREW | 4 | |
| 8 | 8100693 | CHOCK CHOCK | 1 | |
| 9 | 8023506 | SWITCH SWITCH | 1 | |
| 10 | 8110378 | POTENTIOMETER POTENTIOMETER | 1 | |
| 11 | 8022348 | CLAMP CLAMP | 70 | |
| 12 | 8102399 | HOURMETER HOURMETER | 1 | |
| 13 | 8023507 | CLAMP CLAMP | 3 | |
| 14 | 8023508 | CLAMP CLAMP | 4 | |
| 15 | 17094914 | WASHER WASHER | 8 | |
| 16 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 17 | 17016214 | SPACING BAR SPACING BAR | 4 | |
| 18 | 8110852 | EARTH WIRE EARTH WIRE | 1 | |
| 19 | 16607724 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 20 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 21 | 8022006 | LUMINOUS INDICATOR LUMINOUS INDICATOR | 2 | |
| 22 | 8022005 | PIN PIN | 5 | |
| 23 | 8023510 | PUSH BUTTON PUSH BUTTON | 1 | |
| 24 | 8012651 | PUSH BUTTON PUSH BUTTON | 1 |
