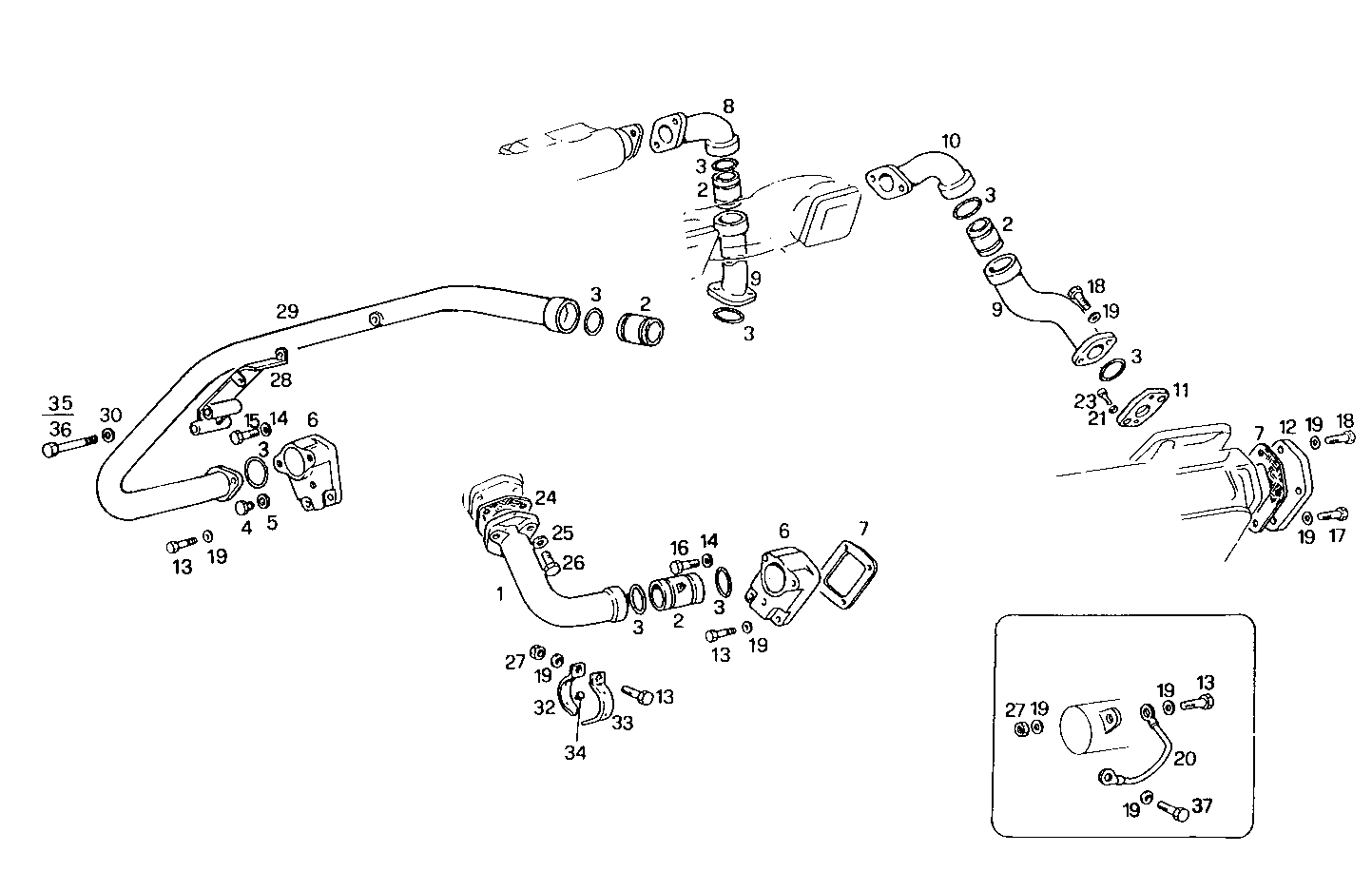

WATER LINES
GE8281SRM44.30A60E — GE8281SRM44
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8109498 | WATER PIPE WATER PIPE | 1 | |
| 2 | 8112495 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 4 | |
| 3 | 17289681 | O-RING O-RING | 13 | |
| 4 | 16992440 | THREADED PLUG THREADED PLUG | 2 | |
| 5 | 10257060 | SEAL GASKET SEAL GASKET | 2 | |
| 6 | 8109497 | COVER COVER | 2 | |
| 7 | 8105608 | GASKET GASKET | 4 | |
| 8 | 8112004 | WATER PIPE WATER PIPE | 1 | |
| 9 | 8110568 | WATER PIPE WATER PIPE | 2 | |
| 10 | 8007400 | WATER PIPE WATER PIPE | 1 | |
| 11 | 8110945 | FLANGE FLANGE | 2 | |
| 12 | 8113918 | COVER COVER | 2 | |
| 13 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 14 | 17094348 | WASHER WASHER | 4 | |
| 15 | 16691424 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 16 | 16691224 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 2 | |
| 17 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 18 | 16605924 | SCREW SCREW | 4 | |
| 19 | 17089474 | SPRING WASHER SPRING WASHER | 14 | |
| 20 | 8113786 | ENGINE HARNESS ENGINE HARNESS | 6 | |
| 21 | 17494834 | WASHER WASHER | 4 | |
| 23 | 16690724 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 4 | |
| 24 | 4863539 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 25 | 17088474 | WASHER WASHER | 3 | |
| 26 | 16604124 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 27 | 17037931 | HEXAGON NUT HEXAGON NUT | 5 | |
| 28 | 8007842 | RETAINER RETAINER | 1 | |
| 29 | 8112005 | WATER PIPE WATER PIPE | 1 | |
| 30 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 32 | 8113298 | CLAMP CLAMP | 1 | |
| 33 | 8113299 | CLAMP CLAMP | 1 | |
| 34 | 1364290 | DOWEL DOWEL | 8 | |
| 35 | 15972021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 36 | 15972221 | SCREW SCREW | 1 | |
| 37 | 16043124 | SCREW SCREW | 1 |
