500KVA 50HZ
GE8291SRG85.10A80S — GE8291SRG85

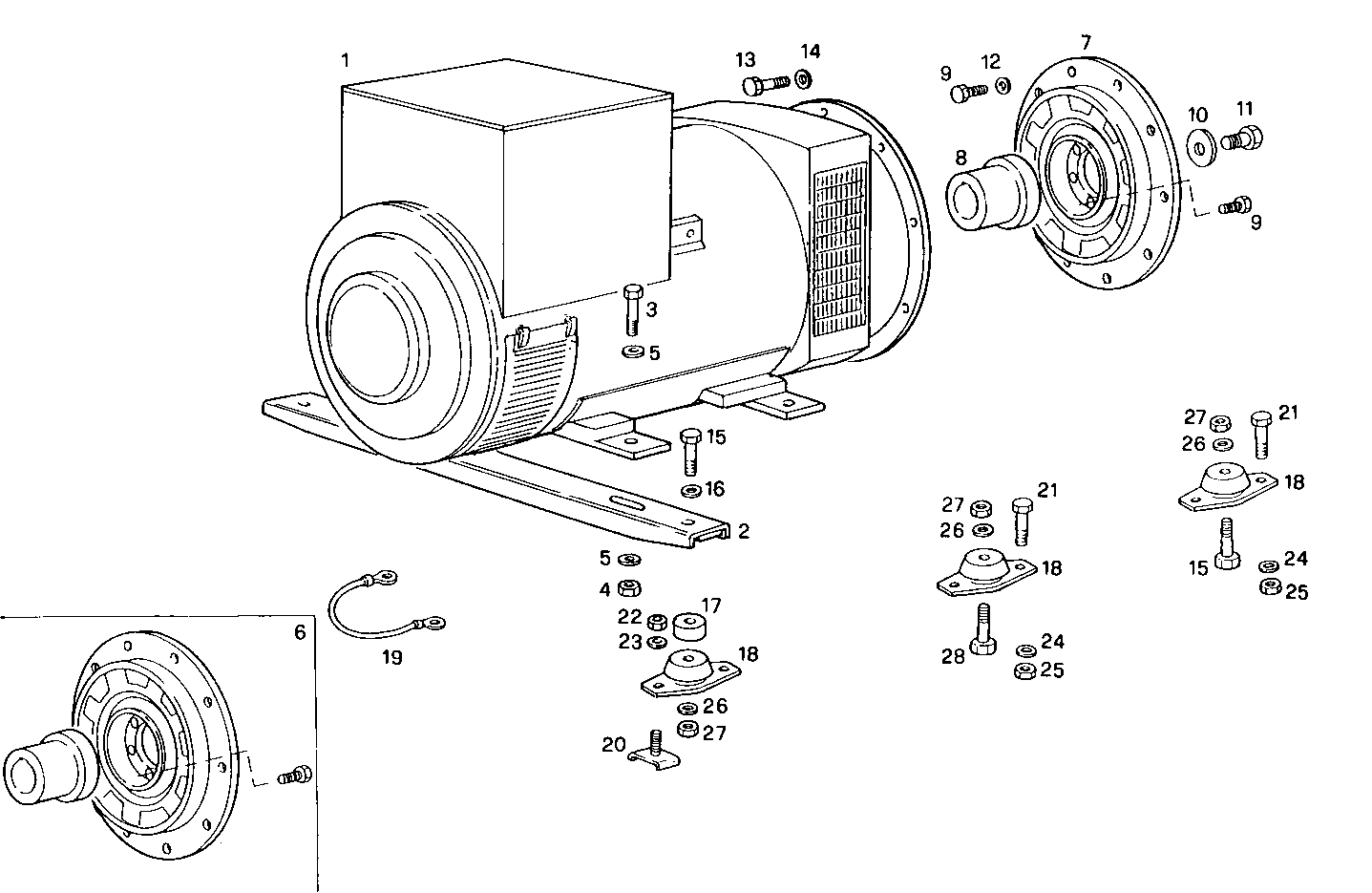

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8028784 | ELECTRIC MACHINE ELECTRIC MACHINE | 1 | |
| 2 | 8016859 | SUPPORT SUPPORT | 2 | |
| 3 | 16620624 | SCREW SCREW | 4 | |
| 4 | 17039721 | HEXAGON NUT HEXAGON NUT | 4 | |
| 5 | 17093174 | WASHER WASHER | 8 | |
| 6 | 8022126 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 7 | 8014277 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 8 | 8022127 | HUB HUB | 1 | |
| 9 | 17462134 | SCREW SCREW | 18 | |
| 10 | 8022136 | WASHER WASHER | 1 | |
| 11 | 16619624 | SCREW SCREW | 1 | |
| 12 | 17095604 | WASHER WASHER | 6 | |
| 13 | 16610124 | HEXAGON BOLT HEXAGON BOLT | 16 | |
| 14 | 17091074 | WASHER WASHER | 16 | |
| 15 | 16620124 | SCREW SCREW | 6 | |
| 16 | 8016962 | WASHER WASHER | 4 | |
| 17 | 8022659 | SPACING BAR SPACING BAR | 4 | |
| 18 | 4955094 | RUBBER PAD RUBBER PAD | 8 | |
| 19 | 8110856 | EARTH WIRE EARTH WIRE | 1 | |
| 20 | 8015168 | SCREW SCREW | 8 | |
| 21 | 16614624 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 22 | 17038721 | NUT NUT | 8 | |
| 23 | 17091974 | SPRING WASHER SPRING WASHER | 8 | |
| 24 | 17092374 | SPRING WASHER SPRING WASHER | 8 | |
| 25 | 17038921 | NUT NUT | 8 | |
| 26 | 17093174 | WASHER WASHER | 12 | |
| 27 | 17037931 | HEXAGON NUT HEXAGON NUT | 12 | |
| 28 | 8015074 | SCREW SCREW | 2 |
