150KVA 380V 50HZ
GE8361SRi25.00A50L — GE8361SRi25

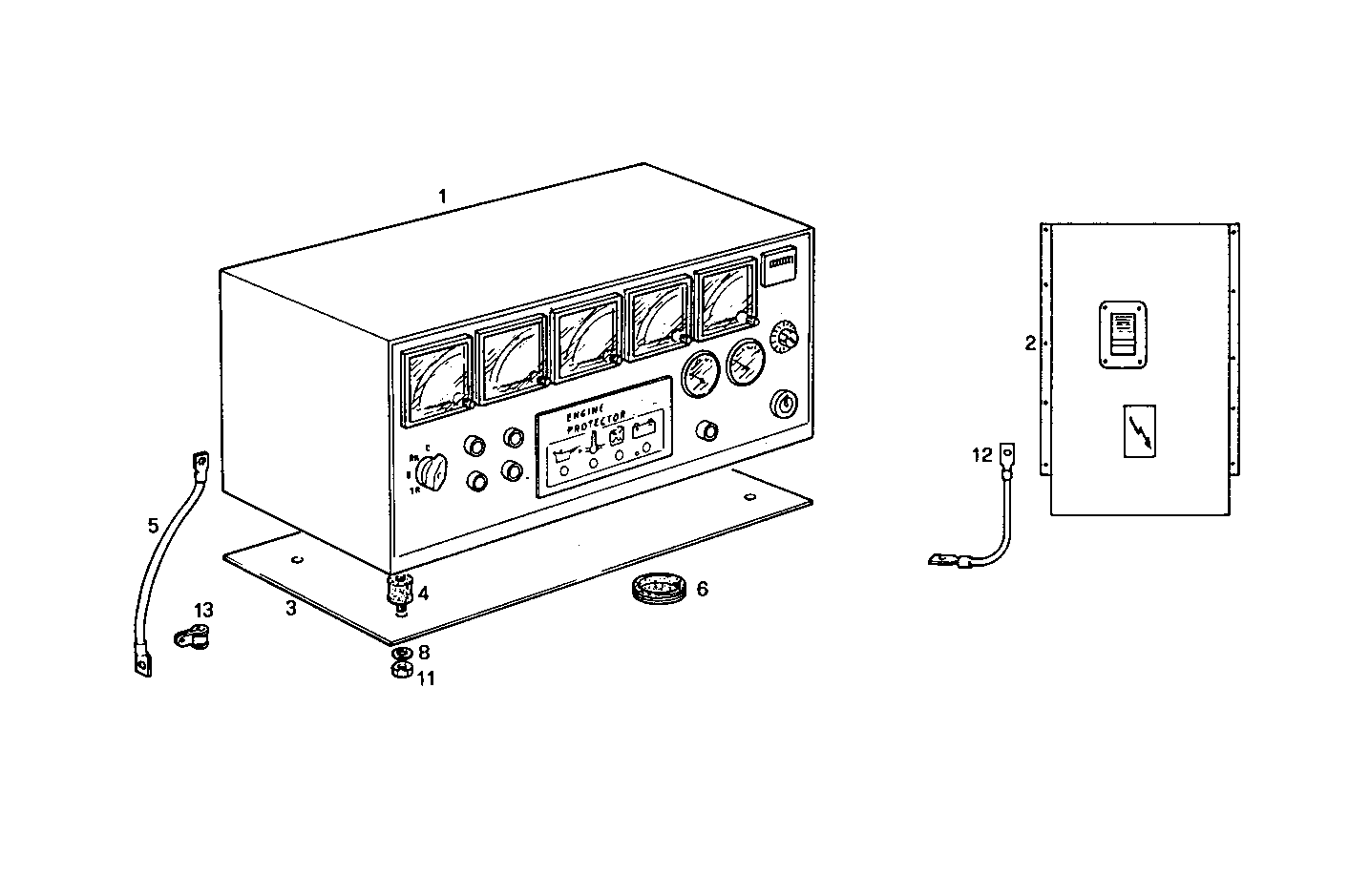

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8009059 | CONTROL BOARD ASSY CONTROL BOARD ASSY | 1 | |
| 2 | 8110911 | DIFFERENTIAL SWITCH DIFFERENTIAL SWITCH | 1 | |
| 3 | 8110934 | EL.MACHINE COVER EL.MACHINE COVER | 1 | |
| 4 | 8104155 | DOWEL DOWEL | 4 | |
| 5 | 8006993 | EARTH WIRE EARTH WIRE | 1 | |
| 6 | 8113214 | INSULATING RING INSULATING RING | 1 | |
| 8 | 11197771 | SPRING WASHER SPRING WASHER | 8 | |
| 11 | 15896211 | HEXAGON NUT HEXAGON NUT | 8 | |
| 12 | 8104358 | EARTH WIRE EARTH WIRE | 1 | |
| 13 | 10441290 | PIPE CLIP PIPE CLIP | 3 |
