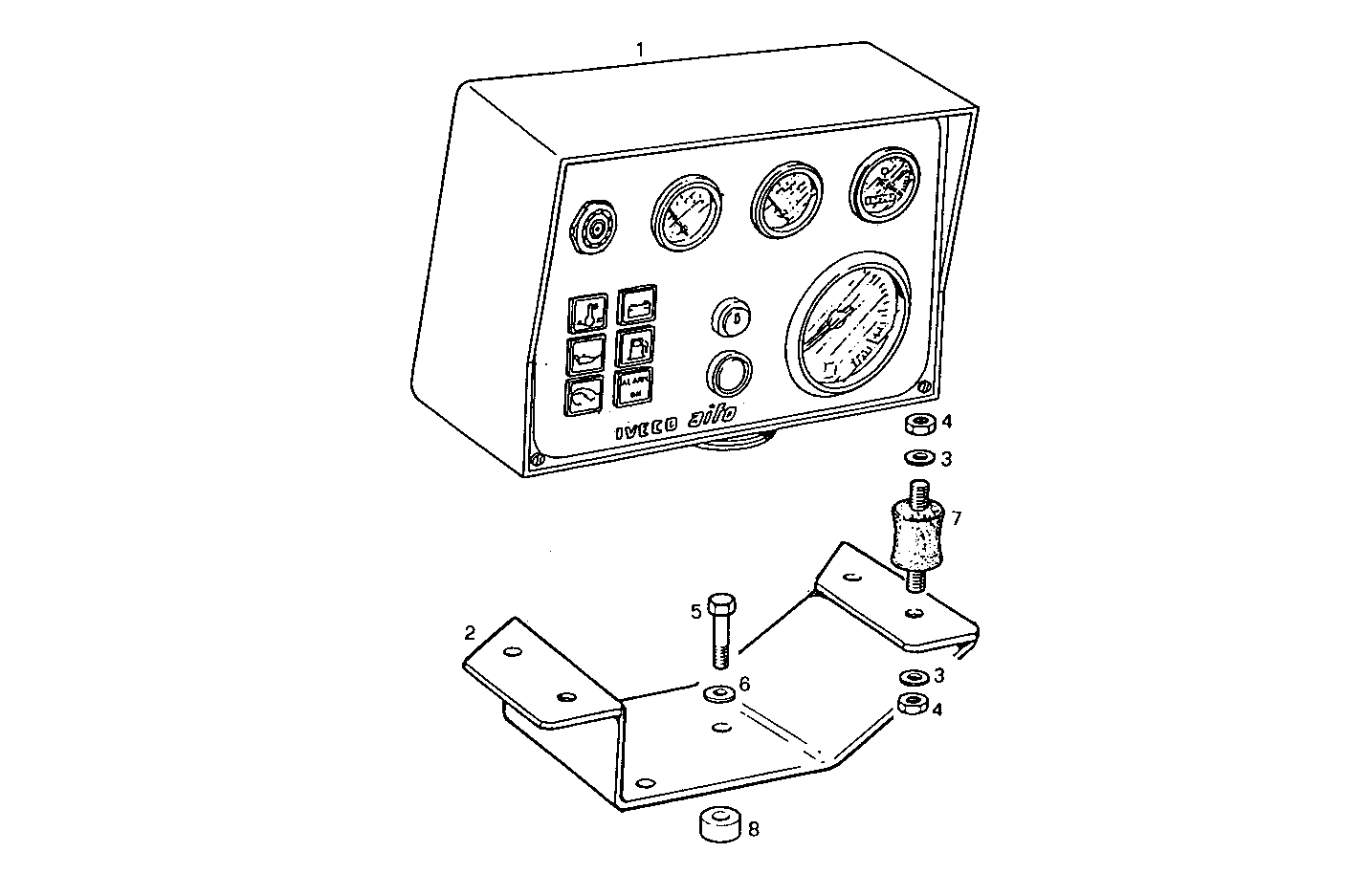

ELECTRIC INSTRUMENTS PANEL
GE8361SRi25.00A50S — GE8361SRi25
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8005746 | INSTRUMENTS BOARD INSTRUMENTS BOARD | 1 | |
| 2 | 8011723 | SUPPORT SUPPORT | 1 | |
| 3 | 11197771 | SPRING WASHER SPRING WASHER | 8 | |
| 4 | 15896211 | HEXAGON NUT HEXAGON NUT | 8 | |
| 5 | 16044421 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 6 | 11198371 | SPRING WASHER SPRING WASHER | 3 | |
| 7 | 4910949 | RUBBER PAD RUBBER PAD | 4 | |
| 8 | 13606411 | SPACER SPACER | 3 |
