150KVA 50HZ
GE8361SRi25.00A70E — GE8361SRi25

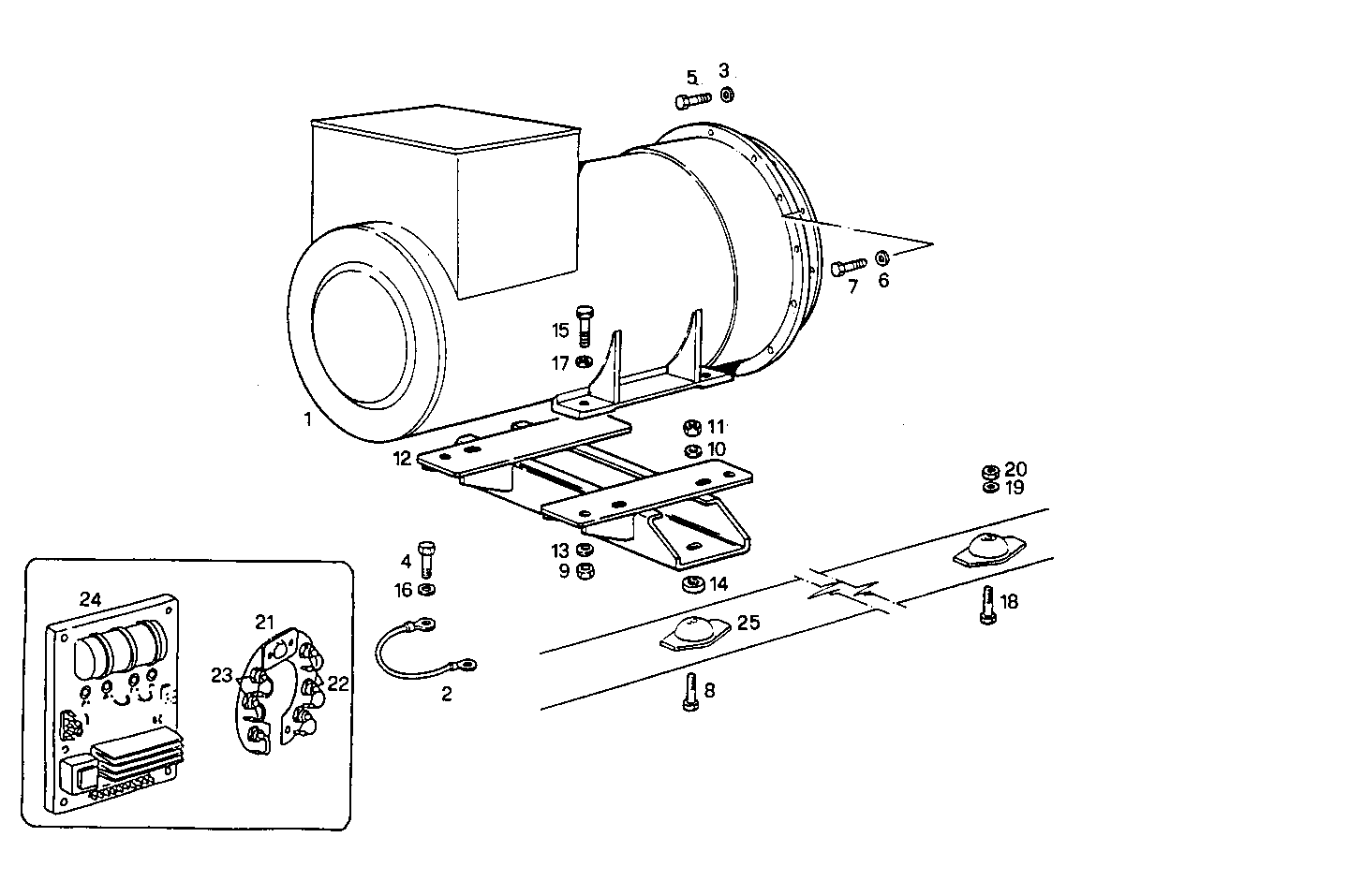

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8009785 | ELECTRIC MACHINE ELECTRIC MACHINE | 1 | |
| 2 | 8104707 | WIRE/CABLE WIRE/CABLE | 1 | |
| 3 | 11198371 | SPRING WASHER SPRING WASHER | 12 | |
| 4 | 16043321 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 5 | 11306921 | SCREW SCREW | 12 | |
| 6 | 10516871 | SPRING WASHER SPRING WASHER | 8 | |
| 7 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 8 | 15988921 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 12164111 | HEXAGON NUT HEXAGON NUT | 4 | |
| 10 | 11191771 | WASHER WASHER | 2 | |
| 11 | 12164311 | HEXAGON NUT HEXAGON NUT | 2 | |
| 12 | 8100182 | SUPPORT SUPPORT | 1 | |
| 13 | 11200271 | WASHER WASHER | 4 | |
| 14 | 8108957 | SPACING BAR SPACING BAR | 1 | |
| 15 | 15981121 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 16 | 11193871 | WASHER WASHER | 1 | |
| 17 | 4929369 | WASHER WASHER | 2 | |
| 18 | 11227021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 19 | 11200171 | SPRING WASHER SPRING WASHER | 2 | |
| 20 | 12164011 | HEXAGON NUT HEXAGON NUT | 2 | |
| 21 | 8106491 | SUPPRESSOR SUPPRESSOR | 1 | |
| 22 | 8106486 | EL.MACHINE DIODE EL.MACHINE DIODE | 1 | |
| 23 | 8106485 | EL.MACHINE DIODE EL.MACHINE DIODE | 1 | |
| 24 | 8091776 | EL.MACHINE VOLTAGE REGUL. EL.MACHINE VOLTAGE REGUL. | 1 | |
| 25 | 4955094 | RUBBER PAD RUBBER PAD | 2 |
