215KVA 60HZ
GE8361SRi26.00A52L — GE8361SRi26

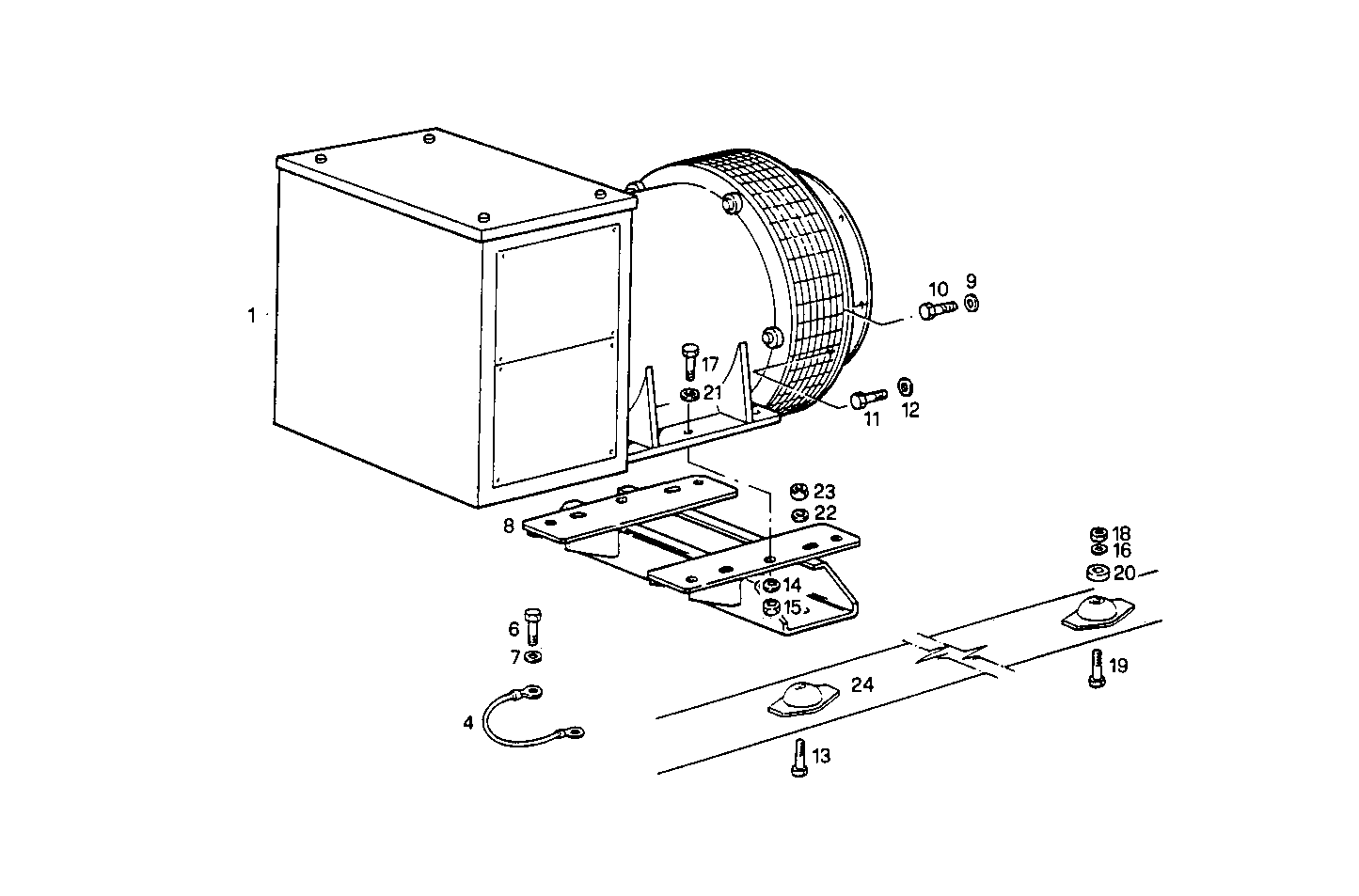

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8007353 | ELECTRIC MACHINE ELECTRIC MACHINE | 1 | |
| 4 | 8104707 | WIRE/CABLE WIRE/CABLE | 1 | |
| 6 | 16043321 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 7 | 11193871 | WASHER WASHER | 1 | |
| 8 | 8100182 | SUPPORT SUPPORT | 1 | |
| 9 | 10516871 | SPRING WASHER SPRING WASHER | 8 | |
| 10 | 15970731 | SCREW SCREW | 8 | |
| 11 | 11307021 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 12 | 11198371 | SPRING WASHER SPRING WASHER | 12 | |
| 13 | 15988521 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 11200271 | WASHER WASHER | 2 | |
| 15 | 12164111 | HEXAGON NUT HEXAGON NUT | 2 | |
| 16 | 11200171 | SPRING WASHER SPRING WASHER | 2 | |
| 17 | 15981121 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 18 | 12164011 | HEXAGON NUT HEXAGON NUT | 2 | |
| 19 | 15977721 | SCREW SCREW | 2 | |
| 20 | 8109912 | SPACING BAR SPACING BAR | 2 | |
| 21 | 4929369 | WASHER WASHER | 2 | |
| 22 | 11191771 | WASHER WASHER | 2 | |
| 23 | 12164311 | HEXAGON NUT HEXAGON NUT | 2 | |
| 24 | 4955094 | RUBBER PAD RUBBER PAD | 2 |
