210KVA 220V 60HZ
GE8361SRi26.00A52S — GE8361SRi26

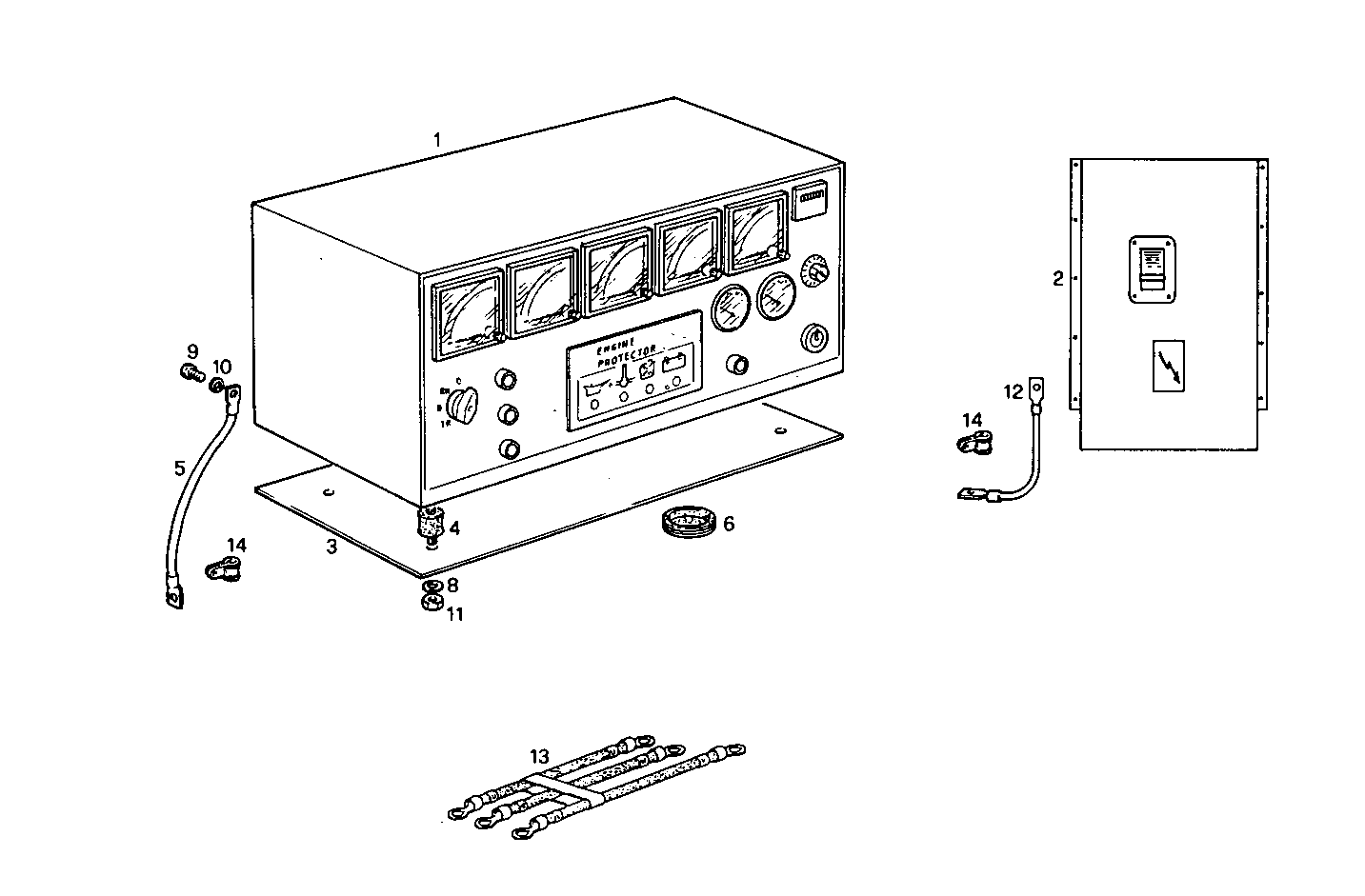

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8009013 | CONTROL BOARD ASSY CONTROL BOARD ASSY | 1 | |
| 2 | 8110790 | DIFFERENTIAL SWITCH DIFFERENTIAL SWITCH | 1 | |
| 3 | 8110933 | COVER COVER | 1 | |
| 4 | 8104155 | DOWEL DOWEL | 4 | |
| 5 | 8111019 | EARTH WIRE EARTH WIRE | 1 | |
| 6 | 8113214 | INSULATING RING INSULATING RING | 1 | |
| 8 | 11197771 | SPRING WASHER SPRING WASHER | 8 | |
| 9 | 16043124 | SCREW SCREW | 1 | |
| 10 | 11193871 | WASHER WASHER | 1 | |
| 11 | 15896211 | HEXAGON NUT HEXAGON NUT | 8 | |
| 12 | 8104707 | WIRE/CABLE WIRE/CABLE | 1 | |
| 13 | 8006430 | ENGINE HARNESS ENGINE HARNESS | 1 | |
| 14 | 10441290 | PIPE CLIP PIPE CLIP | 2 |
