MANUAL CONTROL BOARD FOR ELECT. MACHINE
GE8361SRi26.07R970 — GE8361SRi26

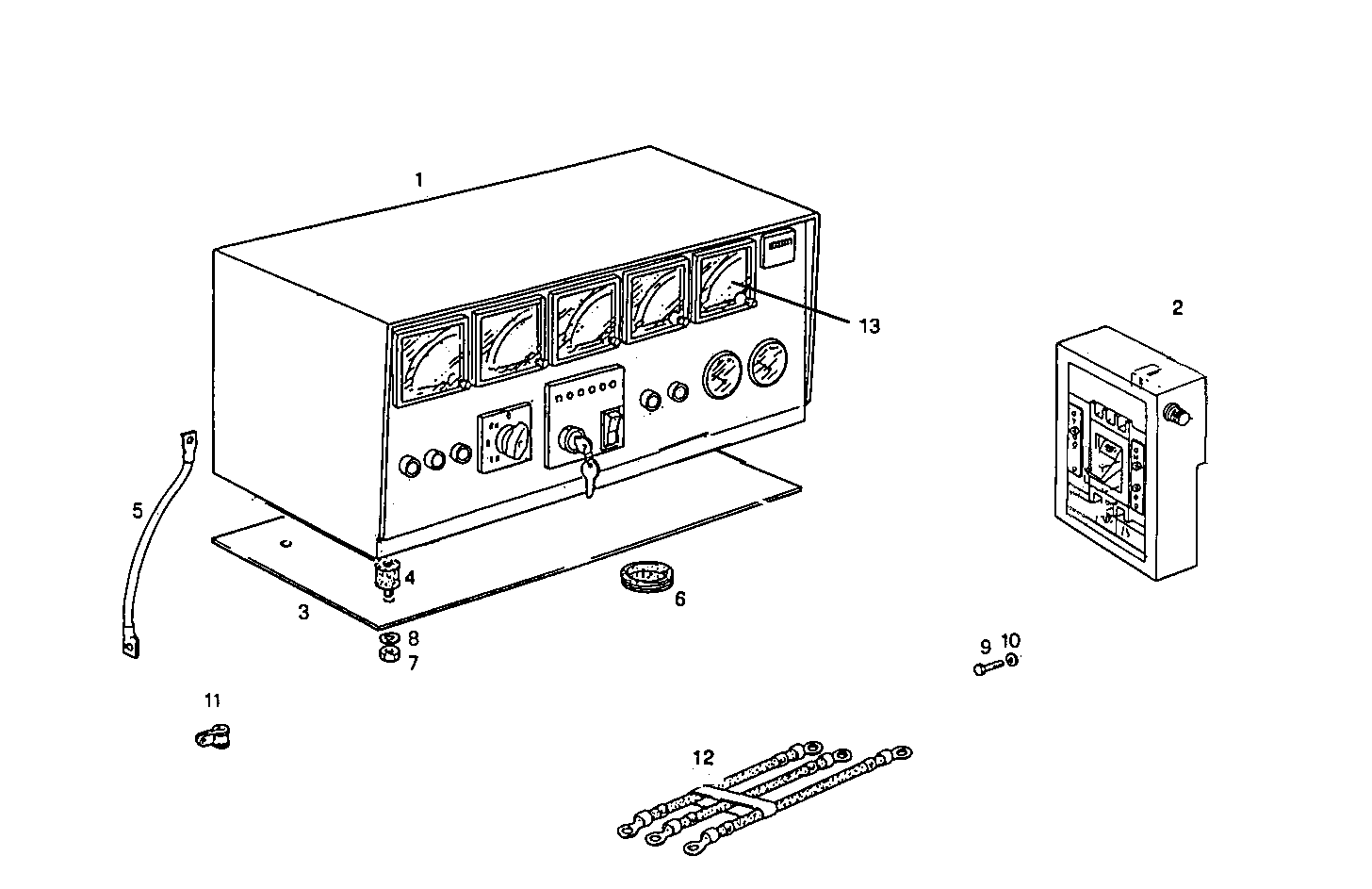

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8022359 | CONTROL BOARD ASSY CONTROL BOARD ASSY | 1 | |
| 2 | 503110788 | SWITCH SWITCH | 1 | |
| 3 | 8019255 | COVER COVER | 1 | |
| 4 | 8104155 | DOWEL DOWEL | 4 | |
| 5 | 8006993 | EARTH WIRE EARTH WIRE | 1 | |
| 6 | 8113214 | INSULATING RING INSULATING RING | 1 | |
| 7 | 17037821 | HEXAGON NUT HEXAGON NUT | 14 | |
| 8 | 17088474 | WASHER WASHER | 14 | |
| 9 | 16603524 | SCREW SCREW | 6 | |
| 10 | 17094724 | WASHER WASHER | 6 | |
| 11 | 10441290 | PIPE CLIP PIPE CLIP | 2 | |
| 12 | 8023970 | WIRE/CABLE WIRE/CABLE | 1 | |
| 13 | 8110956 | STOP PLATE STOP PLATE | 3 |
