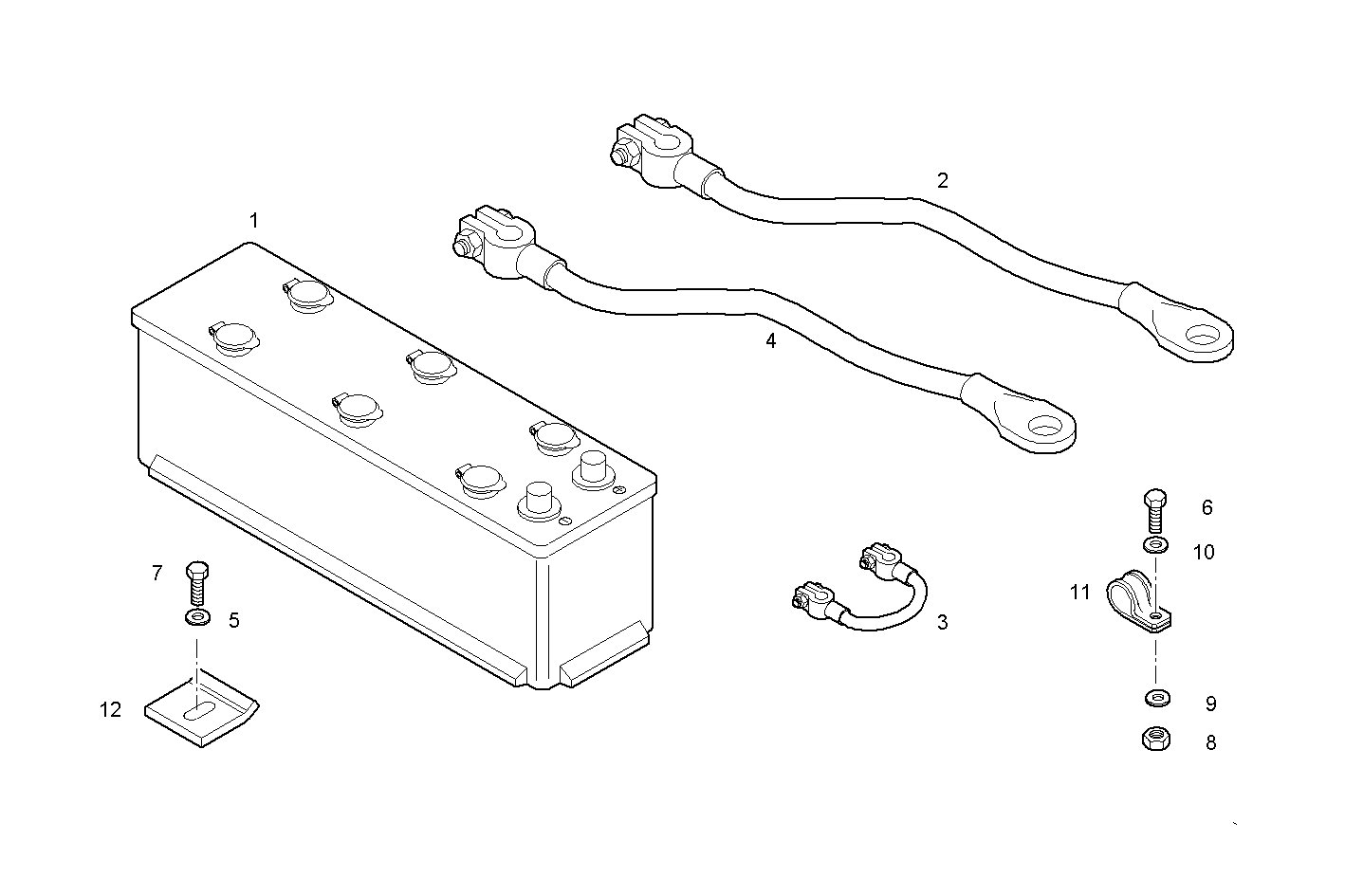

STARTING BATTERY 24V
GE8361SRi26.07R970 — GE8361SRi26
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4931027 | BATTERY BATTERY | 2 | |
| 2 | 4930995 | WIRE/CABLE WIRE/CABLE | 1 | |
| 3 | 4930994 | WIRE/CABLE WIRE/CABLE | 1 | |
| 4 | 4936214 | WIRE/CABLE WIRE/CABLE | 1 | |
| 5 | 12626221 | WASHER WASHER | 2 | |
| 6 | 16603734 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 7 | 16607524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 17037821 | HEXAGON NUT HEXAGON NUT | 2 | |
| 9 | 17088474 | WASHER WASHER | 2 | |
| 10 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 11 | 17315090 | FASTENING BRACKET FASTENING BRACKET | 2 | |
| 12 | 8024305 | RETAINER RETAINER | 2 |
