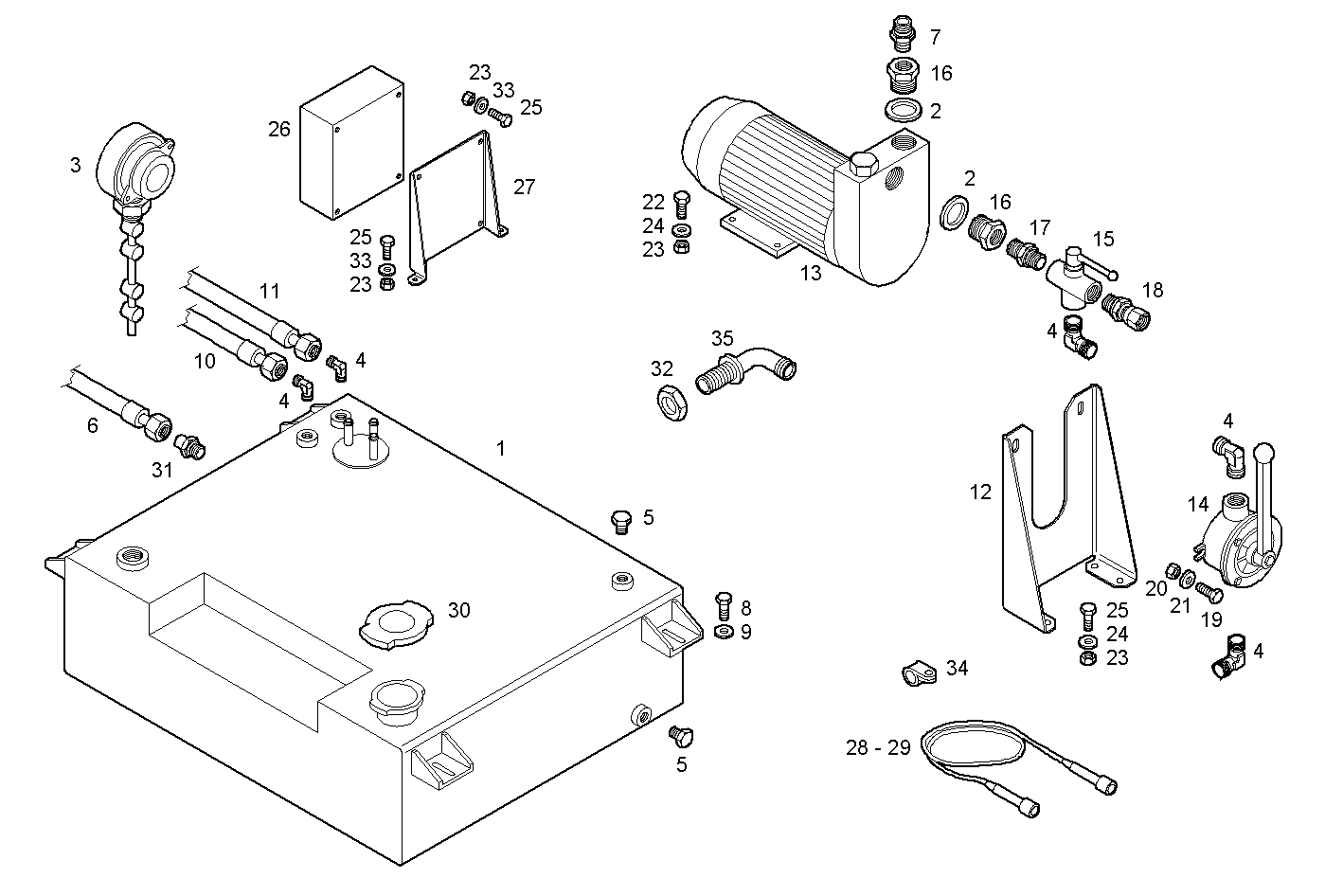

SUBBASE FOR GENERATOR UNIT
GE8361SRi26.07R970 — GE8361SRi26
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8029747 | TANK TANK | 1 | |
| 2 | 4858608 | SEAL GASKET SEAL GASKET | 2 | |
| 3 | 8029416 | FUEL LEVEL GAUGE FUEL LEVEL GAUGE | 1 | |
| 4 | 8028539 | ELBOW COUPLING ELBOW COUPLING | 6 | |
| 5 | 8029748 | THREADED PLUG THREADED PLUG | 2 | |
| 6 | 8029688 | FUEL PIPES FUEL PIPES | 1 | |
| 7 | 8028524 | THREADED UNION THREADED UNION | 1 | |
| 8 | 16607524 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 9 | 17090174 | SPRING WASHER SPRING WASHER | 4 | |
| 10 | 8029687 | FUEL PIPES FUEL PIPES | 1 | |
| 11 | 8028752 | FUEL PIPES FUEL PIPES | 2 | |
| 12 | 8028602 | RETAINER RETAINER | 1 | |
| 13 | 8028527 | PUMP PUMP | 1 | |
| 14 | 8012424 | MAR. ENG. SUCTION PUMP MAR. ENG. SUCTION PUMP | 1 | |
| 15 | 8028526 | RETAINER COCK RETAINER COCK | 1 | |
| 16 | 8028519 | PIPE SOCKET PIPE SOCKET | 2 | |
| 17 | 8028522 | PIPE SOCKET PIPE SOCKET | 1 | |
| 18 | 8028541 | PIPE SOCKET PIPE SOCKET | 1 | |
| 19 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 20 | 17037925 | HEXAGON NUT HEXAGON NUT | 2 | |
| 21 | 17089574 | WASHER WASHER | 2 | |
| 22 | 10902633 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 23 | 17037821 | HEXAGON NUT HEXAGON NUT | 18 | |
| 24 | 17088874 | WASHER WASHER | 12 | |
| 25 | 16603677 | HEXAGON BOLT HEXAGON BOLT | 14 | |
| 26 | 8029967 | SWITCHGEAR SWITCHGEAR | 1 | |
| 27 | 8029948 | RETAINER RETAINER | 1 | |
| 28 | 8029992 | WIRE/CABLE WIRE/CABLE | 1 | |
| 29 | 8029994 | WIRE/CABLE WIRE/CABLE | 1 | |
| 30 | 8018418 | FUEL TANK PLUG FUEL TANK PLUG | 1 | |
| 31 | 8028490 | PIPE SOCKET PIPE SOCKET | 1 | |
| 32 | 16981135 | HEXAGON NUT HEXAGON NUT | 3 | |
| 33 | 17088474 | WASHER WASHER | 6 | |
| 34 | 17315090 | FASTENING BRACKET FASTENING BRACKET | 4 | |
| 35 | 8028890 | PIPE SOCKET PIPE SOCKET | 1 |
