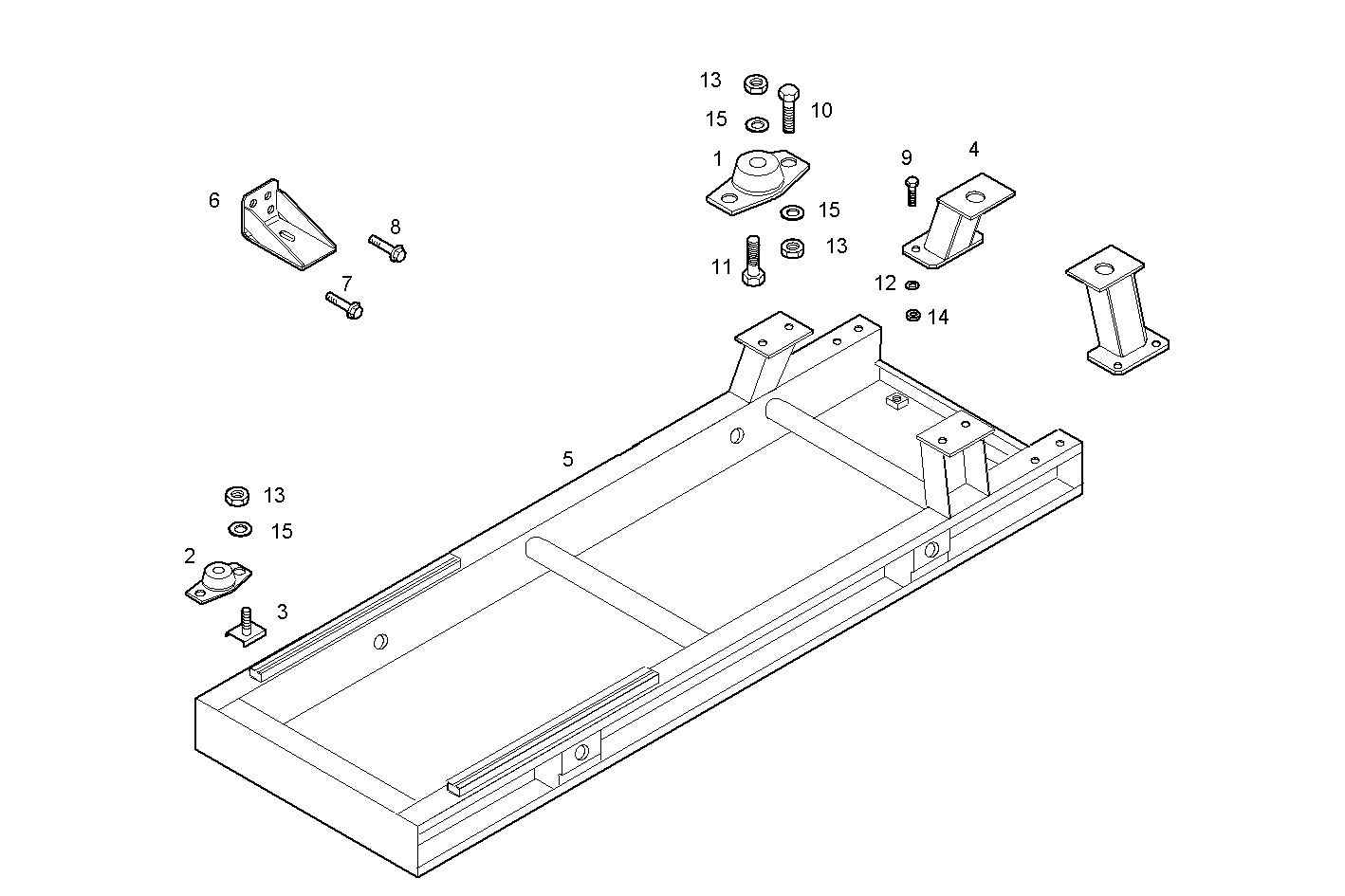

SUBBASE FOR GENERATOR UNIT
GE8361SRi26.07R970 — GE8361SRi26
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4927807 | RUBBER PAD RUBBER PAD | 2 | |
| 2 | 4955094 | RUBBER PAD RUBBER PAD | 2 | |
| 3 | 8015168 | SCREW SCREW | 4 | |
| 4 | 8016116 | RETAINER RETAINER | 2 | |
| 5 | 8016130 | SUBBSAE-SUPPORT FRAME SUBBSAE-SUPPORT FRAME | 1 | |
| 6 | 8016175 | ENGINE SUSPENSION ENGINE SUSPENSION | 2 | |
| 7 | 11391521 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 8 | 15540534 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 9 | 16607524 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 10 | 16612324 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 11 | 16612924 | SCREW SCREW | 2 | |
| 12 | 17038131 | HEXAGON NUT HEXAGON NUT | 4 | |
| 13 | 17038721 | NUT NUT | 10 | |
| 14 | 17090174 | SPRING WASHER SPRING WASHER | 4 | |
| 15 | 17091074 | WASHER WASHER | 4 |
