25A

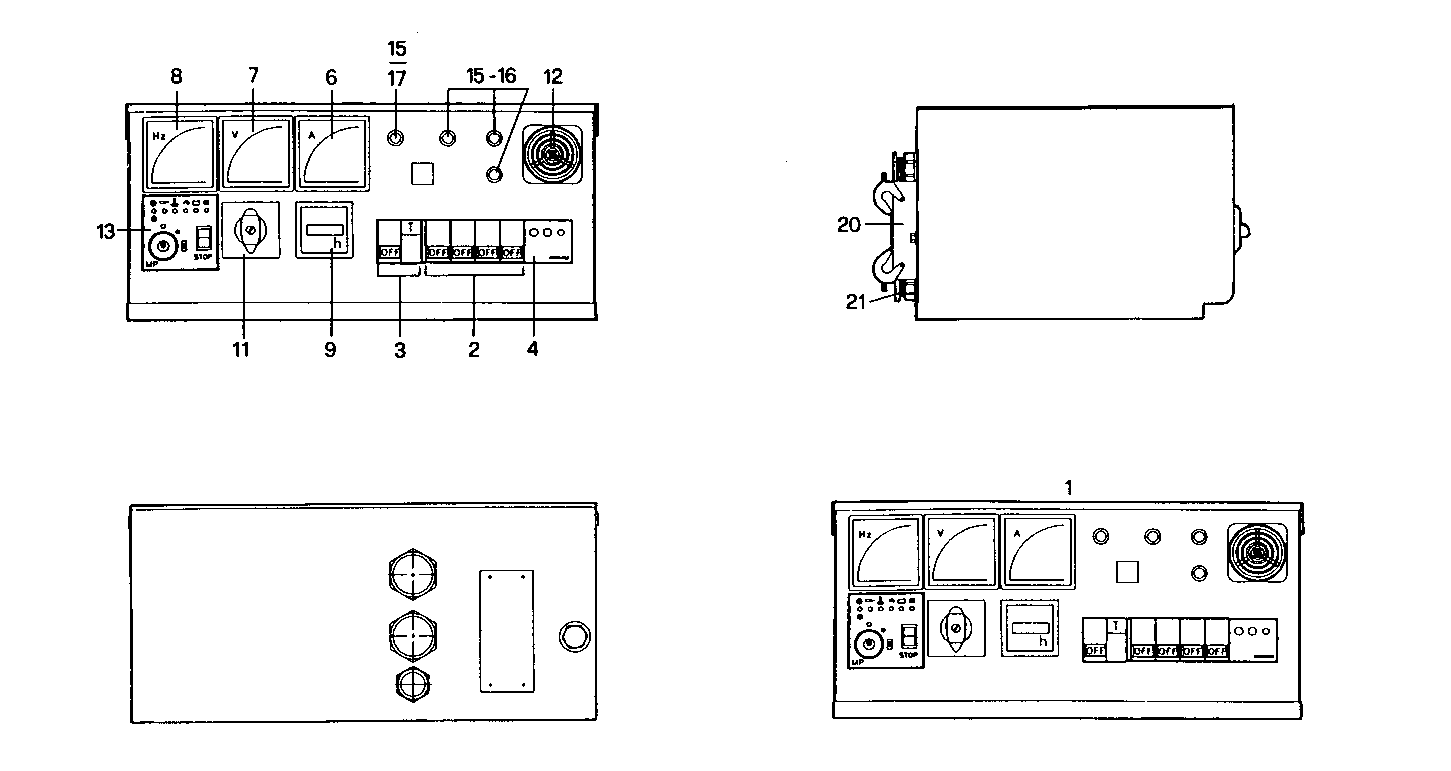

GS8031i05.05 — GS8031i05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8093151 | CONTROL BOARD ASSY CONTROL BOARD ASSY | 1 | |
| 2 | 8093139 | RUBBER PAD RUBBER PAD | 1 | |
| 3 | 8092798 | DIFFERENTIAL SWITCH DIFFERENTIAL SWITCH | 1 | |
| 4 | 8093140 | RUBBER PAD RUBBER PAD | 1 | |
| 6 | 8090909 | AMMETER AMMETER | 1 | |
| 7 | 8100665 | VOLTMETER VOLTMETER | 1 | |
| 8 | 8100632 | FREQUENCYMETER FREQUENCYMETER | 1 | |
| 9 | 8090251 | HOURMETER HOURMETER | 1 | |
| 11 | 8104624 | SWITCH SWITCH | 1 | |
| 12 | 8107950 | ACOUSTIC HORN ACOUSTIC HORN | 1 | |
| 13 | 8092808 | ELECTR.CONTR.UNIT ELECTR.CONTR.UNIT | 1 | |
| 15 | 8105267 | FUSE BOX FUSE BOX | 4 | |
| 16 | 8105268 | FUSE FUSE | 3 | |
| 17 | 8092812 | FUSE FUSE | 1 | |
| 20 | 8092799 | CONNECTION CONNECTION | 1 | |
| 21 | 8092809 | CONNECTION CONNECTION | 1 |
