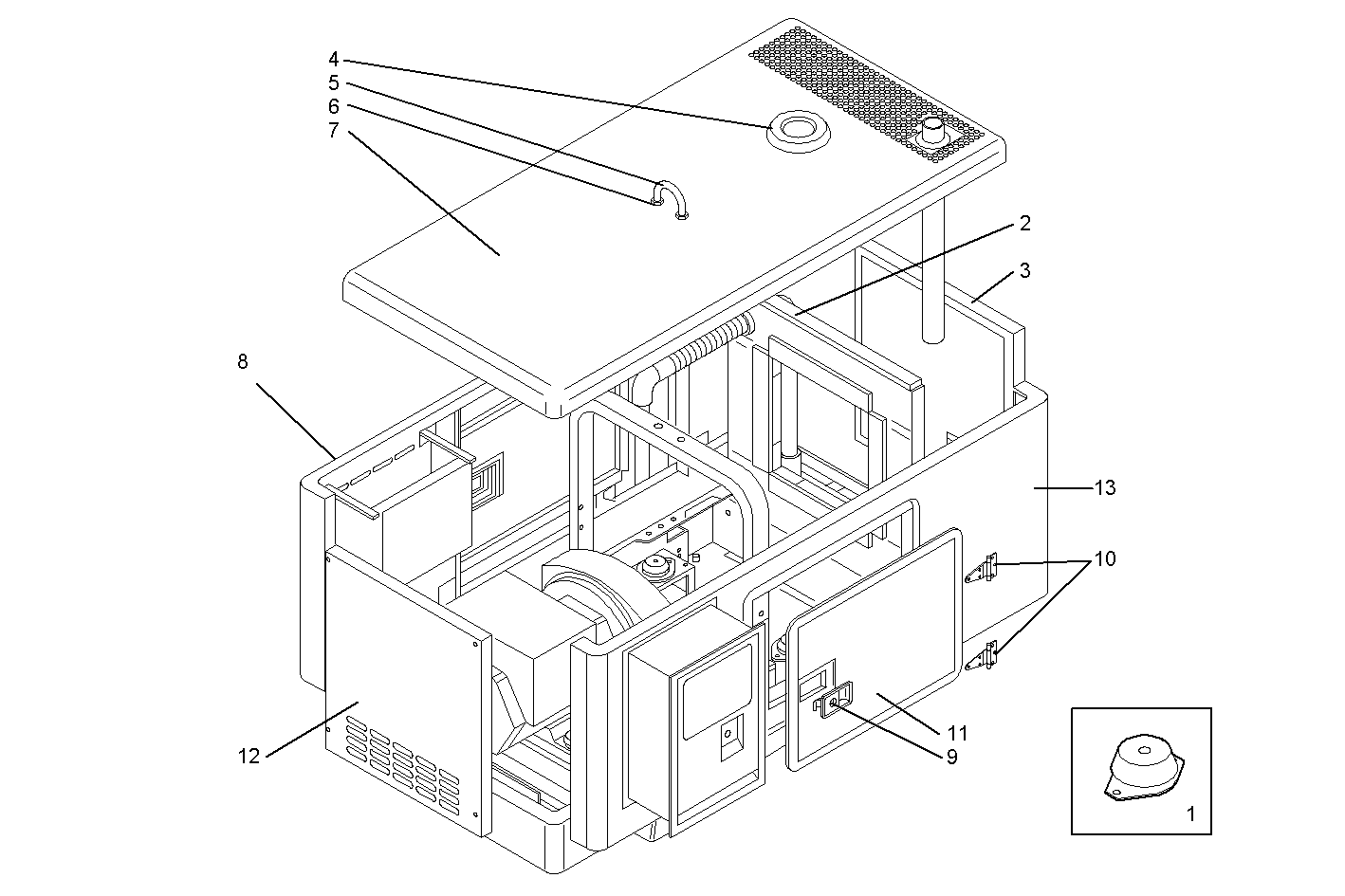

FRAME
GS8031i06.05A612 — GS8031i06
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8094131 | DOWEL DOWEL | 4 | |
| 2 | 8094133 | PARTITION PANEL PARTITION PANEL | 1 | |
| 3 | 8094128 | FRONT WALL FRONT WALL | 1 | |
| 4 | 8094112 | PLASTIC PLUG PLASTIC PLUG | 1 | |
| 5 | 8094113 | HOOK HOOK | 1 | |
| 6 | 8094114 | RUBBER PLUG RUBBER PLUG | 2 | |
| 7 | 8094126 | ROOF ROOF | 1 | |
| 8 | 8094125 | SIDE PANEL SIDE PANEL | 1 | |
| 9 | 8094109 | DOOR LOCK DOOR LOCK | 2 | |
| 10 | 8094108 | DOOR HINGE DOOR HINGE | 4 | |
| 11 | 8094124 | SIDE DOOR SIDE DOOR | 2 | |
| 12 | 8094122 | REAR WALL REAR WALL | 1 | |
| 13 | 8094123 | SIDE PANEL SIDE PANEL | 1 |
