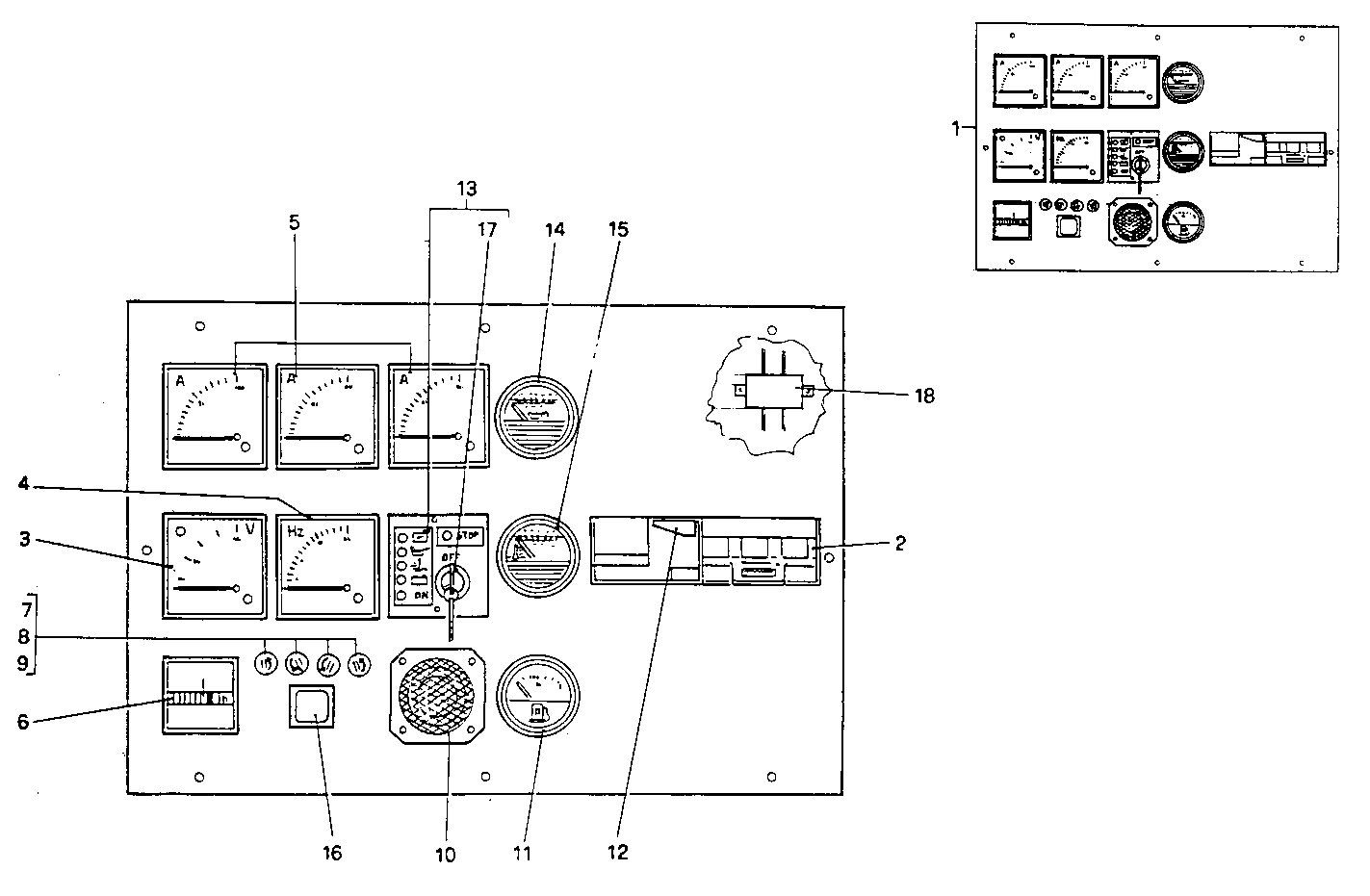

40KVA-12V-80A
GS8041i05.55 — GS8041i05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8092144 | CONTROL BOARD ASSY CONTROL BOARD ASSY | 1 | |
| 2 | 8092145 | SWITCH SWITCH | 1 | |
| 3 | 8092128 | VOLTMETER VOLTMETER | 1 | |
| 4 | 8092129 | FREQUENCYMETER FREQUENCYMETER | 1 | |
| 5 | 8092146 | AMMETER AMMETER | 3 | |
| 6 | 8092131 | HOURMETER HOURMETER | 1 | |
| 7 | 8092132 | FUSE BOX FUSE BOX | 4 | |
| 8 | 8092133 | FUSE FUSE | 3 | |
| 9 | 8092134 | FUSE FUSE | 1 | |
| 10 | 8092135 | ACOUSTIC HORN ACOUSTIC HORN | 1 | |
| 11 | 8092136 | FUEL LEVEL GAUGE FUEL LEVEL GAUGE | 1 | |
| 12 | 8092147 | SWITCH SWITCH | 1 | |
| 13 | 8092138 | ELECTRONIC CARD ELECTRONIC CARD | 1 | |
| 14 | 8092139 | OIL PRESSURE GAUGE OIL PRESSURE GAUGE | 1 | |
| 15 | 8092140 | THERMOMETER THERMOMETER | 1 | |
| 16 | 8092222 | PUSH BUTTON PUSH BUTTON | 1 | |
| 17 | 8092224 | SWITCH SWITCH | 1 | |
| 18 | 8092251 | TRANSFORMATOR TRANSFORMATOR | 3 |
