WATER PREHEATER DEVICE - 220V
GS8041i05.55A652 — GS8041i05

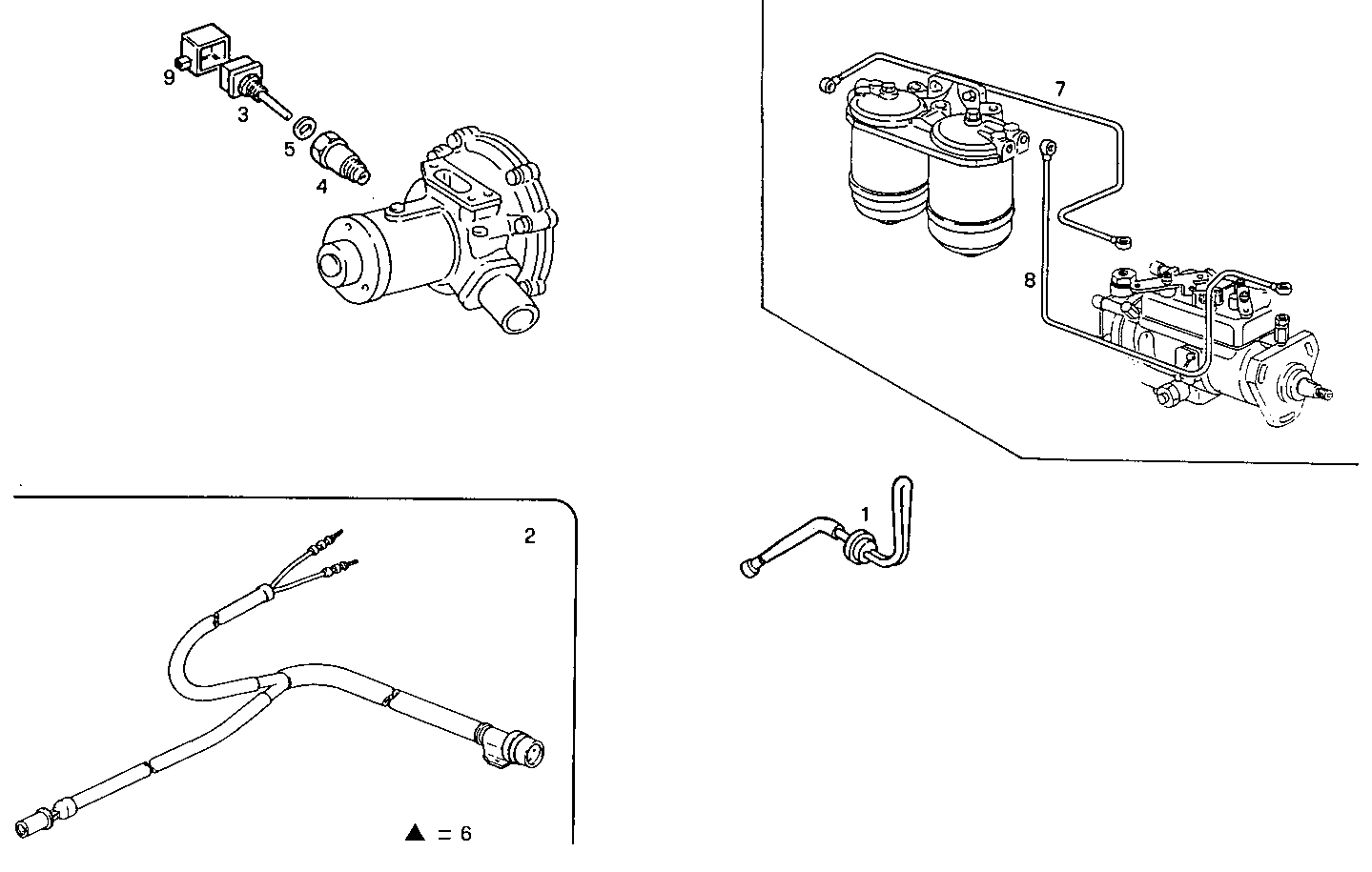

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8023335 | RESISTOR RESISTOR | 1 | |
| 2 | 8023336 | ENGINE HARNESS ENGINE HARNESS | 1 | |
| 3 | 8017120 | THERMOSTAT THERMOSTAT | 1 | |
| 4 | 8017119 | SPACING BAR SPACING BAR | 1 | |
| 5 | 4858610 | WASHER WASHER | 1 | |
| 6 | 8009376 | WIRE/CABLE WIRE/CABLE | 1 | |
| 7 | 8018669 | HOSE HOSE | 1 | |
| 8 | 8018670 | HOSE HOSE | 1 | |
| 9 | 8021565 | CAP CAP | 1 |
