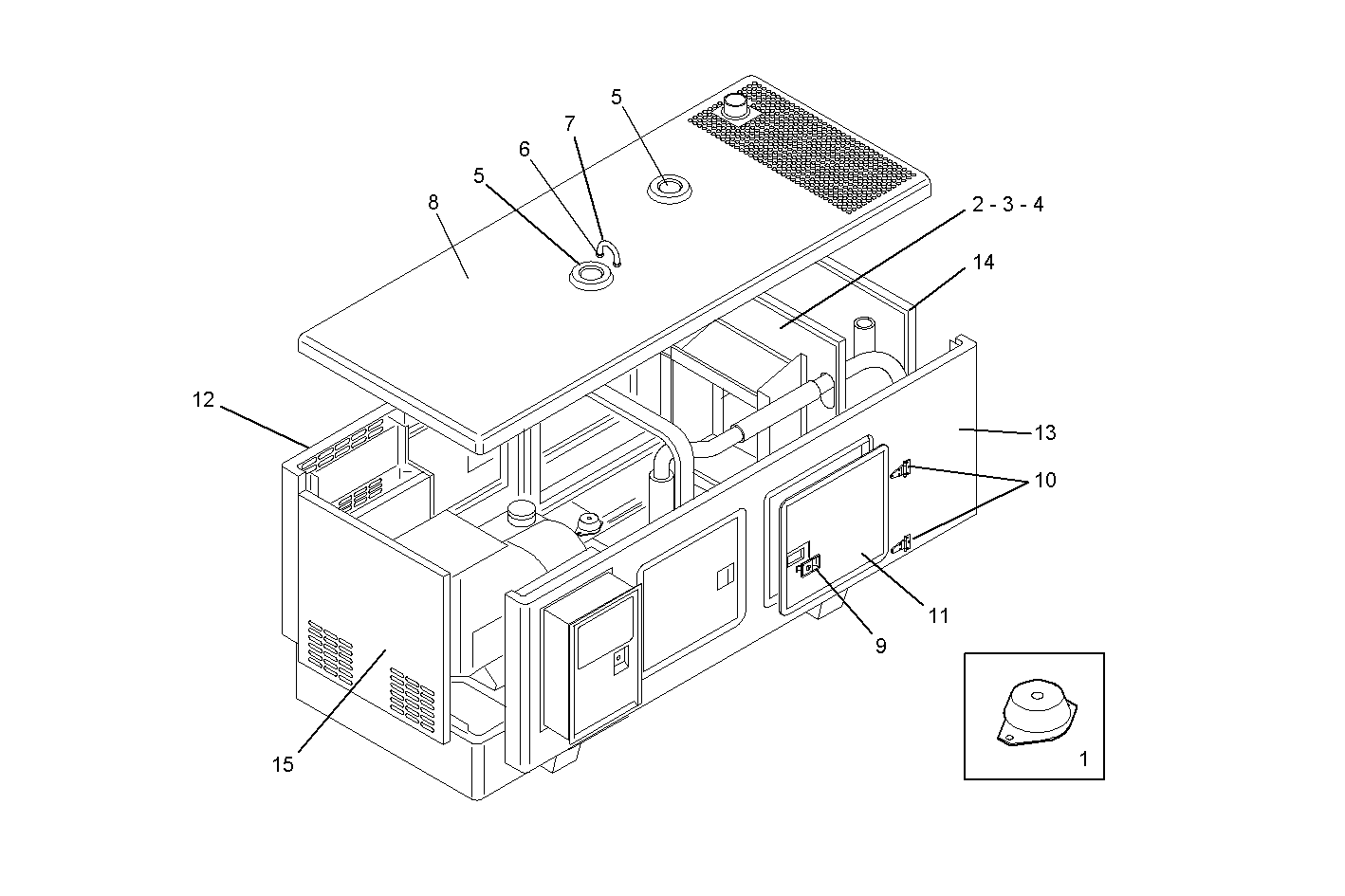

FRAME
GS8061Si06.05A664 — GS8061Si06
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8094104 | DOWEL DOWEL | 4 | |
| 2 | 8094117 | PARTITION PANEL PARTITION PANEL | 1 | |
| 3 | 8094118 | PARTITION PANEL PARTITION PANEL | 1 | |
| 4 | 8094119 | PARTITION PANEL PARTITION PANEL | 1 | |
| 5 | 8094112 | PLASTIC PLUG PLASTIC PLUG | 1 | |
| 6 | 8094114 | RUBBER PLUG RUBBER PLUG | 2 | |
| 7 | 8094113 | HOOK HOOK | 1 | |
| 8 | 8094111 | ROOF ROOF | 1 | |
| 9 | 8094109 | DOOR LOCK DOOR LOCK | 4 | |
| 10 | 8094108 | DOOR HINGE DOOR HINGE | 8 | |
| 11 | 8094107 | SIDE DOOR SIDE DOOR | 4 | |
| 12 | 8094110 | SIDE PANEL SIDE PANEL | 1 | |
| 13 | 8094106 | SIDE PANEL SIDE PANEL | 1 | |
| 14 | 8094105 | FRONT WALL FRONT WALL | 1 | |
| 15 | 8094103 | REAR WALL REAR WALL | 1 |
