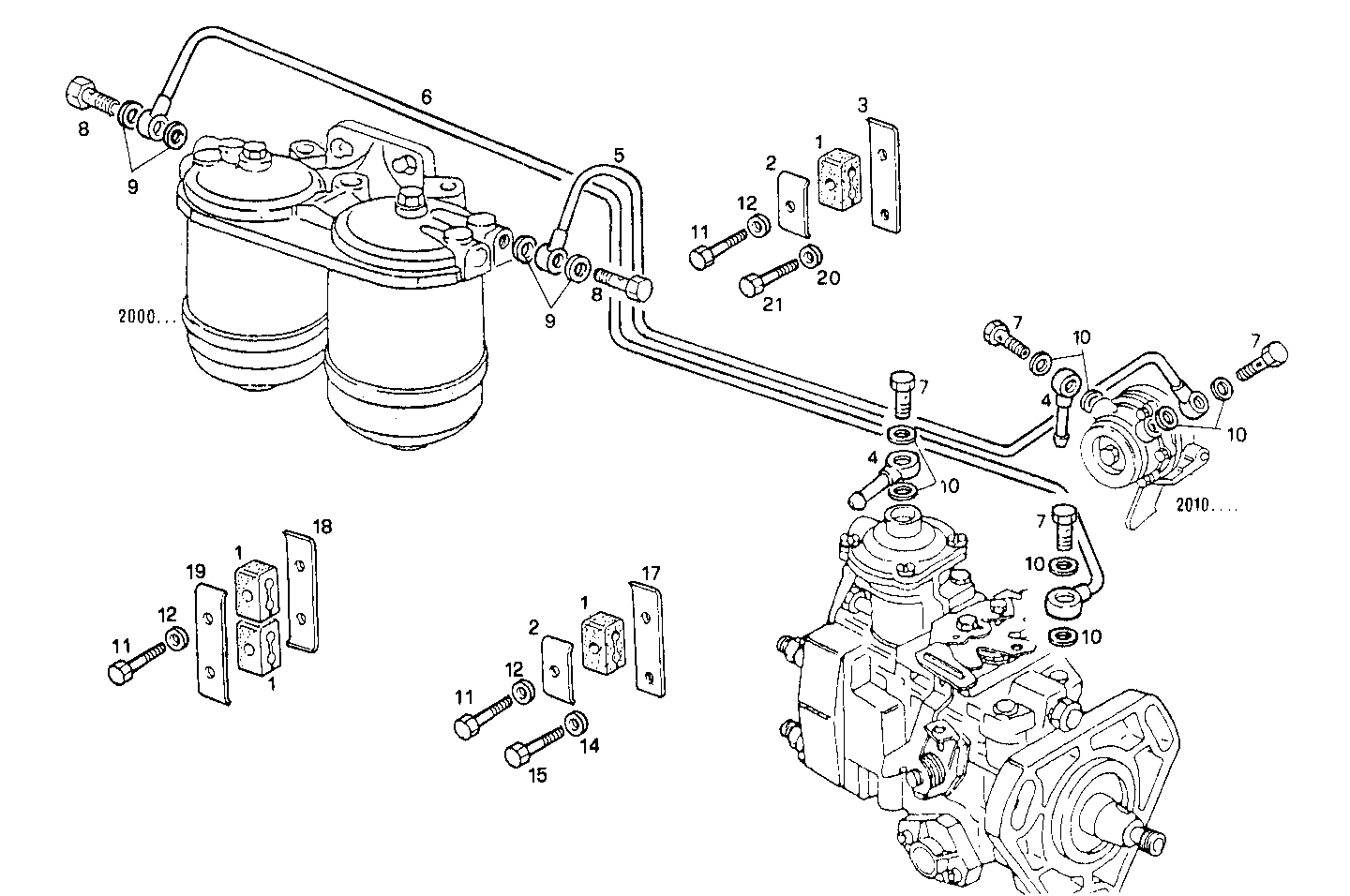

FUEL LINES
GS8061Si16.05A607 — GS8061Si16
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4659217 | DOWEL DOWEL | 4 | |
| 2 | 4659218 | CLIP CLIP | 2 | |
| 3 | 98458261 | PLATE PLATE | 1 | |
| 4 | 98416591 | SWIVEL COUPLING SWIVEL COUPLING | 2 | |
| 5 | 8018089 | FUEL LINE FUEL LINE | 1 | |
| 6 | 8018090 | FUEL LINE FUEL LINE | 1 | |
| 7 | 4864082 | BANJO BOLT BANJO BOLT | 4 | |
| 8 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 9 | 98474308 | SEAL GASKET SEAL GASKET | 4 | |
| 10 | 4858607 | WASHER WASHER | 6 | |
| 11 | 10978221 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 12 | 17494631 | SPRING WASHER SPRING WASHER | 4 | |
| 14 | 17091071 | SPRING WASHER SPRING WASHER | 1 | |
| 15 | 15970524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 17 | 4747020 | PLATE PLATE | 1 | |
| 18 | 4747018 | PLATE PLATE | 1 | |
| 19 | 4747019 | PLATE PLATE | 1 | |
| 20 | 17090274 | WASHER WASHER | 1 | |
| 21 | 16609824 | HEXAGON BOLT HEXAGON BOLT | 1 |
