GUARD
GS8061Si16.05A607 — GS8061Si16

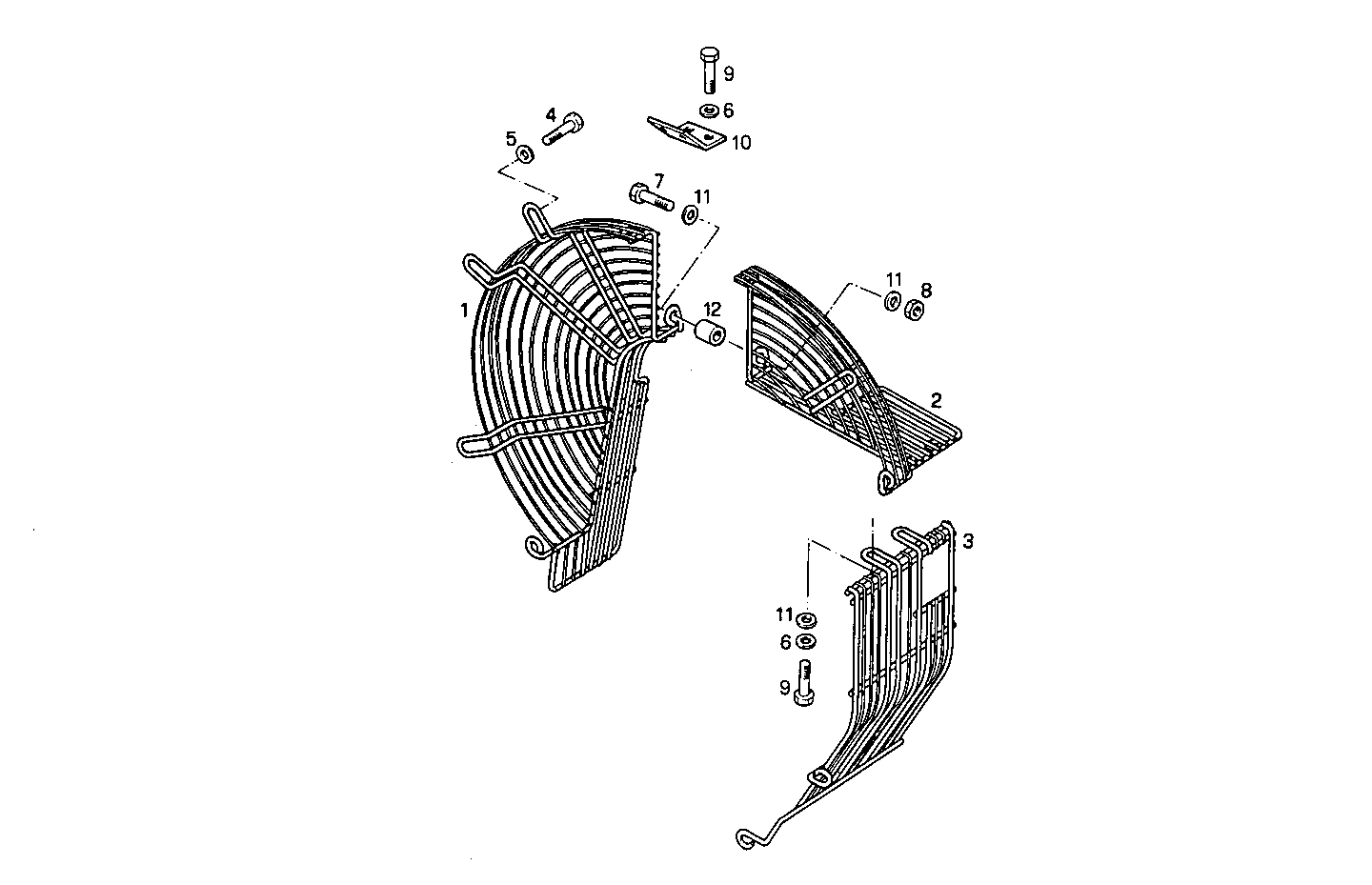

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8008666 | PROTECTION PROTECTION | 1 | |
| 2 | 8008665 | PROTECTION PROTECTION | 1 | |
| 3 | 8008406 | PROTECTION PROTECTION | 1 | |
| 4 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 10 | |
| 5 | 17089774 | SPRING WASHER SPRING WASHER | 12 | |
| 6 | 17088474 | WASHER WASHER | 4 | |
| 7 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 8 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 9 | 16603724 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 10 | 8009454 | RETAINER RETAINER | 1 | |
| 11 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 12 | 8105569 | SPACING BAR SPACING BAR | 1 |
