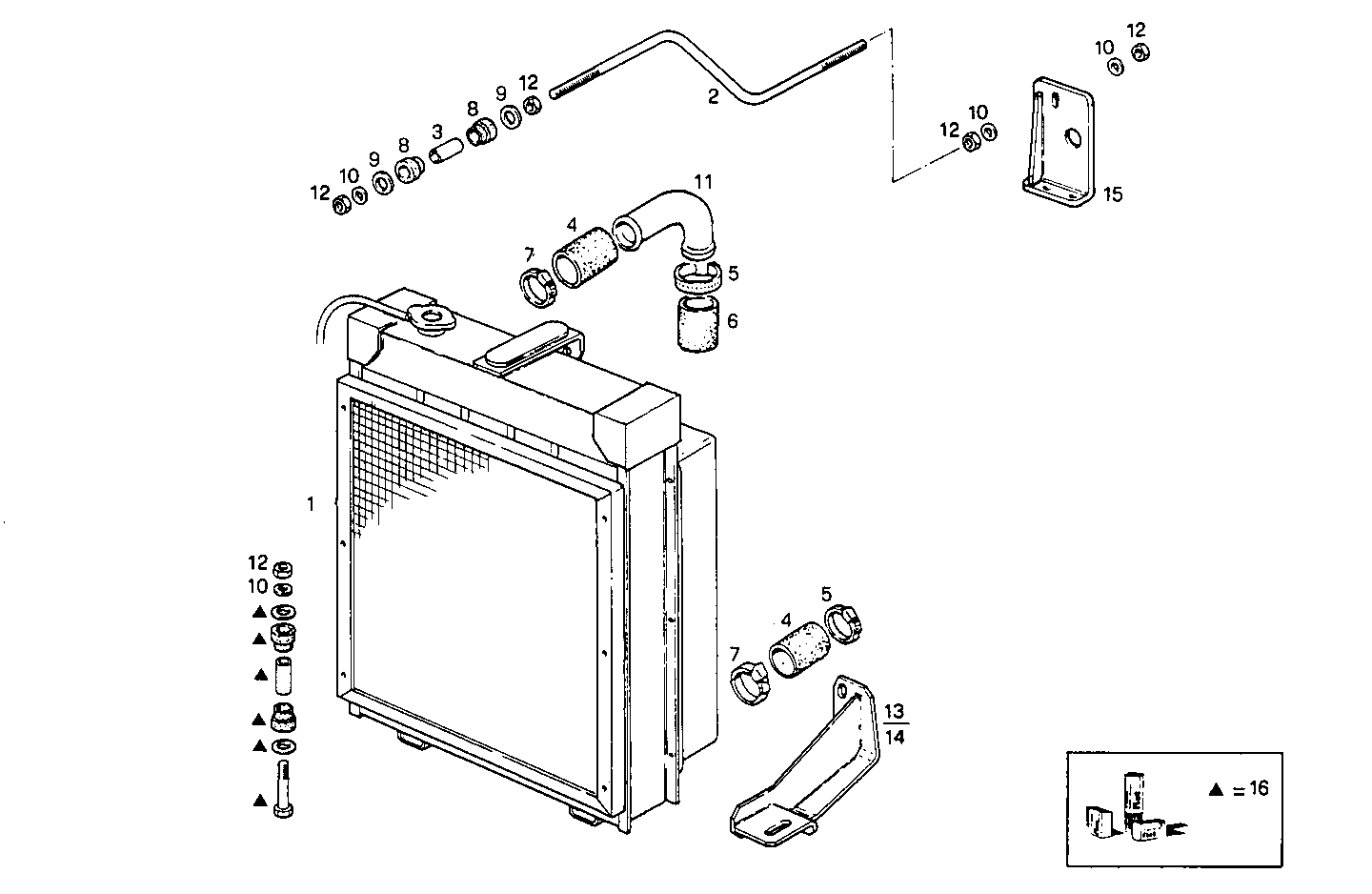

RADIATOR FOR SETTING TILL MAX POWER
GS8061Si16.05A607 — GS8061Si16
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8020420 | WATER RADIATOR WATER RADIATOR | 1 | |
| 1 | 8038540 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 8020421 | TIE ROD TIE ROD | 1 | |
| 3 | 741571 | SPACING BAR SPACING BAR | 1 | |
| 4 | 4951318 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 5 | 17764891 | CLIP CLIP | 4 | |
| 6 | 98437153 | WATER HOSE WATER HOSE | 1 | |
| 7 | 98490783 | CLIP CLIP | 2 | |
| 8 | 741569 | RUBBER PAD RUBBER PAD | 2 | |
| 9 | 741570 | WASHER WASHER | 2 | |
| 10 | 17091074 | WASHER WASHER | 6 | |
| 11 | 8015684 | WATER PIPE WATER PIPE | 1 | |
| 12 | 17038421 | HEXAGON NUT HEXAGON NUT | 6 | |
| 13 | 8110398 | SUPPORT SUPPORT | 1 | |
| 14 | 8110399 | SUPPORT SUPPORT | 1 | |
| 15 | 8020521 | RETAINER RETAINER | 1 | |
| 16 | 8090341 | KIT-RADIATOR KIT-RADIATOR | 2 |
