160A
GS8061Si16.06 — GS8061Si16

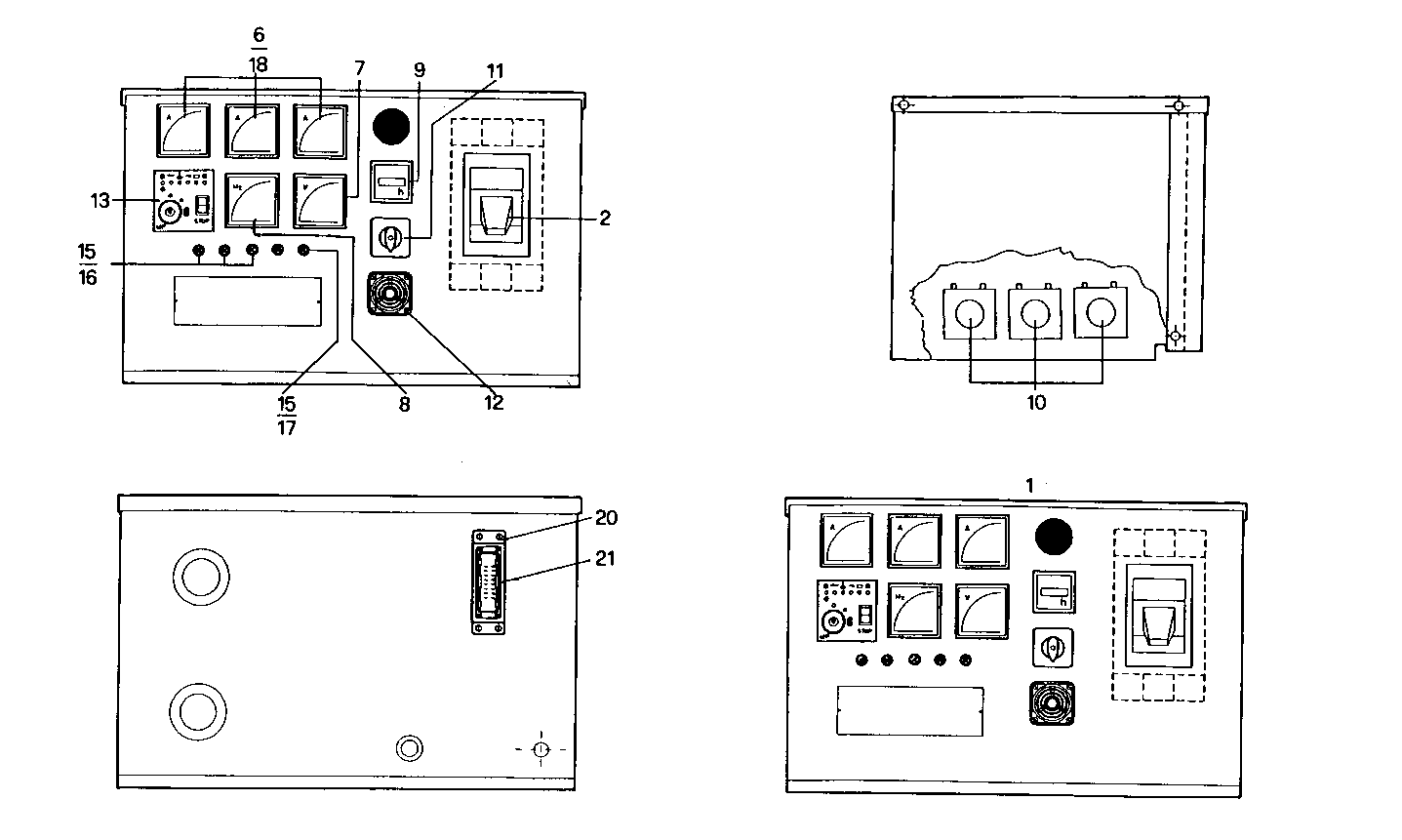

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8093156 | CONTROL BOARD ASSY CONTROL BOARD ASSY | 1 | |
| 2 | 8093271 | SWITCH SWITCH | 1 | |
| 6 | 8093259 | AMMETER AMMETER | 3 | |
| 7 | 8100665 | VOLTMETER VOLTMETER | 1 | |
| 8 | 8100632 | FREQUENCYMETER FREQUENCYMETER | 1 | |
| 9 | 8090251 | HOURMETER HOURMETER | 1 | |
| 10 | 8093269 | TRANSFORMATOR TRANSFORMATOR | 3 | |
| 11 | 8104624 | SWITCH SWITCH | 1 | |
| 12 | 8107950 | ACOUSTIC HORN ACOUSTIC HORN | 1 | |
| 13 | 8092692 | ELECTR.CONTR.UNIT ELECTR.CONTR.UNIT | 1 | |
| 15 | 8105267 | FUSE BOX FUSE BOX | 4 | |
| 16 | 8105268 | FUSE FUSE | 3 | |
| 17 | 8092812 | FUSE FUSE | 1 | |
| 18 | 8093270 | STOP PLATE STOP PLATE | 3 | |
| 20 | 8092799 | CONNECTION CONNECTION | 1 | |
| 21 | 8092809 | CONNECTION CONNECTION | 1 |
