250KVA-24V-400A
GS8210SRi25.00 — GS8210SRi25

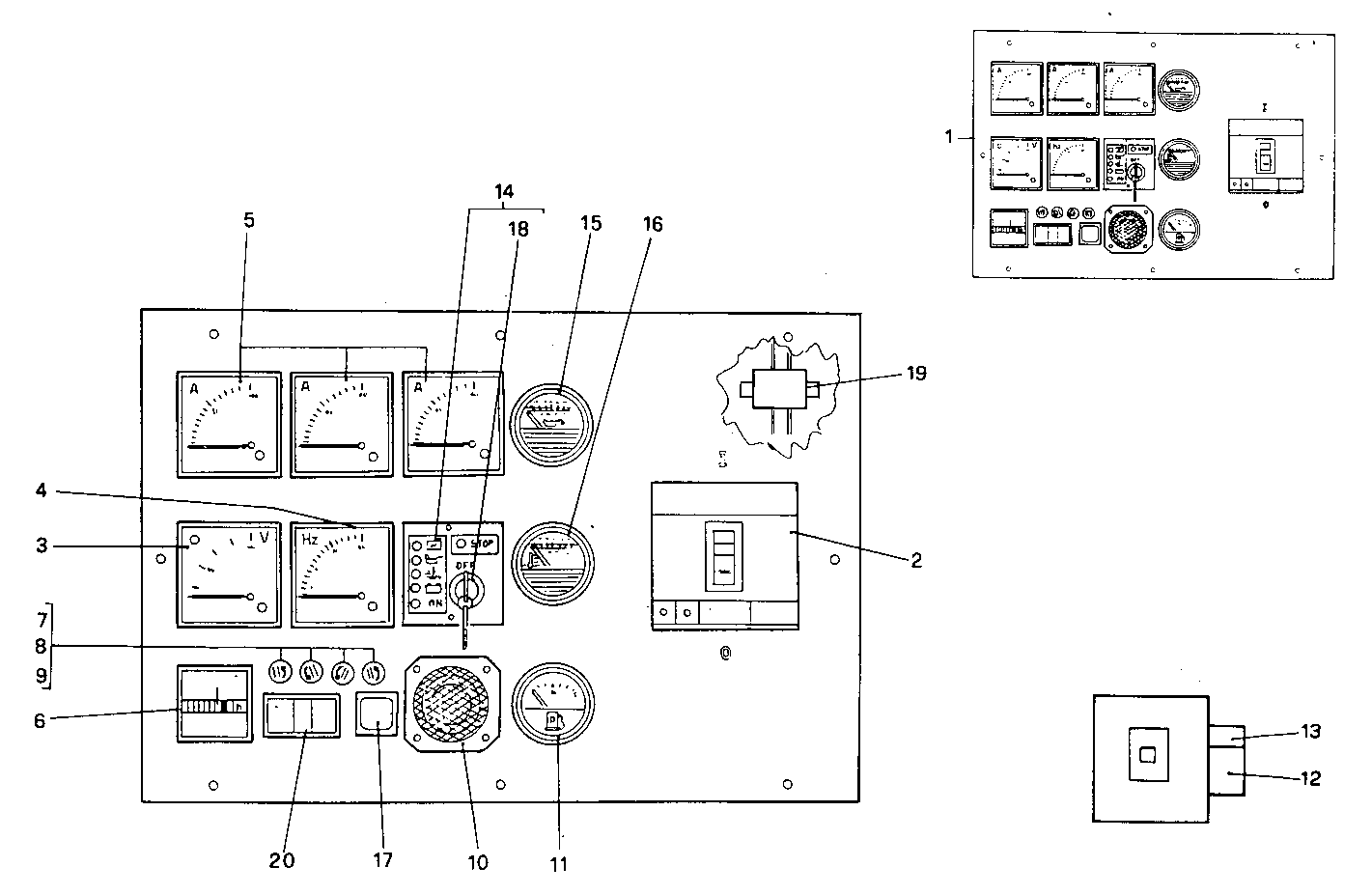

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8092166 | CONTROL BOARD ASSY CONTROL BOARD ASSY | 1 | |
| 2 | 8092167 | SWITCH SWITCH | 1 | |
| 3 | 8092128 | VOLTMETER VOLTMETER | 1 | |
| 4 | 8092129 | FREQUENCYMETER FREQUENCYMETER | 1 | |
| 5 | 8092168 | AMMETER AMMETER | 3 | |
| 6 | 8092131 | HOURMETER HOURMETER | 1 | |
| 7 | 8092132 | FUSE BOX FUSE BOX | 4 | |
| 8 | 8092133 | FUSE FUSE | 3 | |
| 9 | 8092134 | FUSE FUSE | 1 | |
| 10 | 8092159 | ACOUSTIC HORN ACOUSTIC HORN | 1 | |
| 11 | 8092160 | FUEL LEVEL GAUGE FUEL LEVEL GAUGE | 1 | |
| 12 | 8092165 | RELAY RELAY | 1 | |
| 13 | 8092169 | MINIMUN TENSION COIL MINIMUN TENSION COIL | 1 | |
| 14 | 8092161 | ELECTRONIC CARD ELECTRONIC CARD | 1 | |
| 15 | 8092162 | OIL PRESSURE GAUGE OIL PRESSURE GAUGE | 1 | |
| 16 | 8092163 | THERMOMETER THERMOMETER | 1 | |
| 17 | 8092222 | PUSH BUTTON PUSH BUTTON | 1 | |
| 18 | 8092224 | SWITCH SWITCH | 1 | |
| 19 | 8100713 | TRANSFORMATOR TRANSFORMATOR | 3 | |
| 20 | 8092223 | PUSH BUTTON PUSH BUTTON | 1 |
