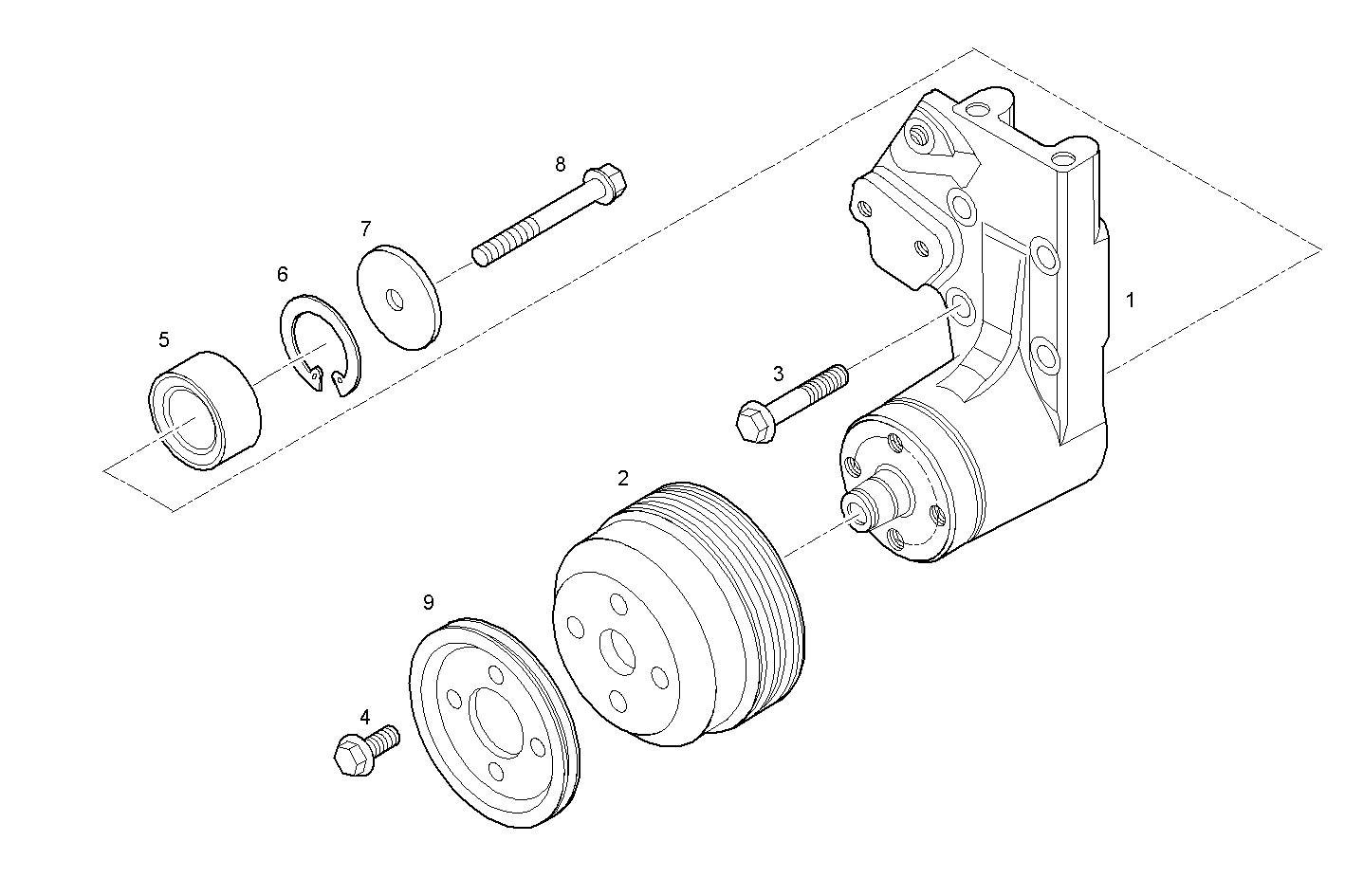

FAN ASSEMBLY
F4CE0304A*D600 — NEF 3 - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504021476 | SUPPORT SUPPORT | 1 | |
| 2 | 504013592 | PULLEY PULLEY | 1 | |
| 3 | 4899089 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 4 | 16675835 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 5 | 4892732 | BALL BEARING BALL BEARING | 1 | |
| 6 | 500395697 | SPRING LOCKWASHER SPRING LOCKWASHER | 1 | |
| 7 | 4890732 | WASHER WASHER | 1 | |
| 8 | 16676834 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 504013593 | COMPRESSOR PULLEY COMPRESSOR PULLEY | 1 |
